Port: | SHANGHAI; | Moving Type: | Crawler Bulldozer; |
Product name: | Crawler Dozer; | Type: | Standard; |
Supply Ability: | 10000 Unit/Units per Month; | Payment Terms: | L/C,T/T; |
Hydraulic Cylinder Brand: | Kawasaki; | UNIQUE SELLING POINT: | High operating efficiency; |
Place of Origin: | Shanghai China; | After-sales Service Provided: | Video technical support,Online support; |
Power(W): | 59; | Condition: | New; |
Brand Name: | SHANTUI; | Engine Brand: | Cummins; |
Applicable Industries: | Construction works ,Energy & Mining; | Packaging Detail: | By Container or RoRo; |
Machine Weight: | 7.85ton; | Warranty: | 1 Year; |
Hydraulic Pump Brand: | Kawasaki; | Hydraulic Valve Brand: | Kawasaki; |
Warranty: | 1 Year; |
Product Feature and Advantages:

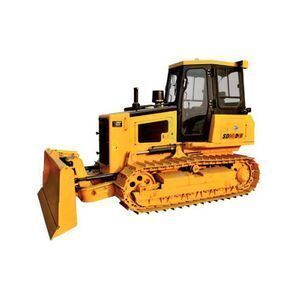

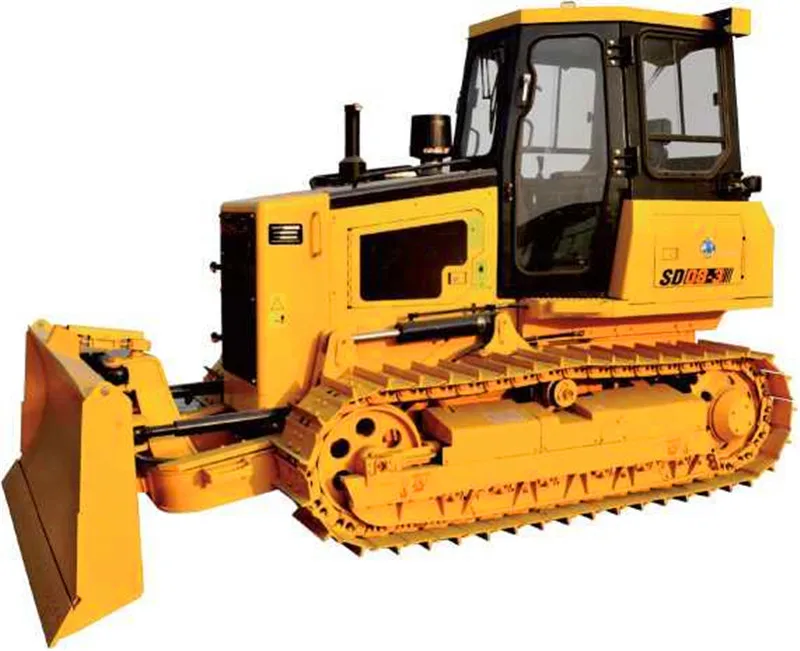

With a high-power, high-efficiency, turbocharged engine featuring a large torque reserve coefficient, a single ppc lever controlling all shifting and steering, the bulldozer 80 hp sd08 makes short work of smaller volume jobs. Its extended track ensures low ground pressure, high reliability and strong traction while the comfortable wide visibility hexahedron cab and integrated dashboard design help keep operator productivity at peak levels. Equipped with a straight tilt blade for excavating, transporting and backfilling in earth moving projects on roads, farms, rivers, urban areas and power plant projects.
Bulldozer SD08 Technical Specification:
Engine | Model & type | Weichai WP4G90E235: Water-cooled, in-line,4-cycle, direct injection and turbocharged | ||
Power | Rated power | 59 kW | ||
Number of cylinders | 4-105 x 120 mm (bore x stroke) | |||
Piston displacement | ||||
Min. fuel consumption | 207 g/kW-h | |||
Maximum torque | 365 N-m@(1400~1600) rpm | |||
Shock | Cylindrical helical spring into shock | |||
Transmission system | Transmission | Forced connected, planetary gear, power shift | ||
Main drive | Spiral bevel gear, splash lubrication | |||
Steering clutch | Wet, multi-disc, spring loaded, hydraulic helping operation, mechanical separating, linking steering brake | |||
Steering brake | Wet, floating, band type foot stepping brake with hydraulic helping | |||
Final drive | 1-stage speed reduction of spur gear, splash lubrication | |||
Travel speed | Gear | 1st | 2nd | 3rd |
Forward | 0~2.53 km/h | 0~4.55 km/h | 0~7.57 km/h | |
Reverse | 0~2.76 km/h | 0~4.96 km/h | 0~8.26 km/h | |
Undercarriage system | Type | Swing type of sprayed beam, suspended structure of equalizer | ||
Carrier rollers | 1 each side | |||
Track rollers | 6 each side | |||
Track type | Single type | |||
Width of track shoes | 400 mm | |||
Pitch | 154.25 mm | |||
Hydraulic system | Maximum pressure | 17.15 MPa | ||
Pump type | Gear pump | |||
Discharge | 90 L/min | |||
Bore of working cylinder x no. | 90 mm x 2 | |||
Blade type | Straight-tilt | |||
Blade | Dozing capacity | 1.84 m3 | ||
Blade width | 2400 mm | |||
Blade height | 950 mm | |||
Maximum drop below ground | 515 mm | |||
Maximum lift | 750 mm |
