Under Over Current Protection Relay

  • Supplier: VINAMRA ENTERPRISES
  • Region: RAJASTHAN, India
  • Contact: S Kaushik
  • Price: $17.00 /piece
  • Min. Order: 1 piece
Product details
Brand Name:VE;Place of Origin:India;
Payment Terms:T/T;Model Number:AT-01;
Packaging Detail:Corrugated Box;Supply Voltage:90-270 AC or DC;
Port:Delhi, Mumbai, Gujarat;Display Type:Digital Only;
Supply Ability:100 Piece/Pieces per Week;
Product Description

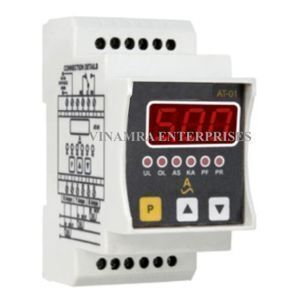

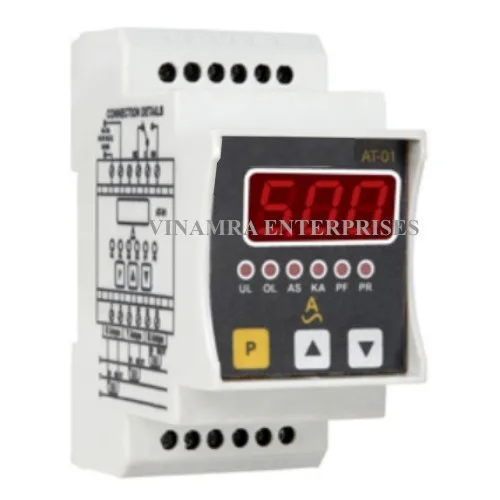

Under Over Current protection Relay

Features:-

Programmable:
- Under/Over Current
- Phase reversal
- Phase fail
- Current Asymmetry
- Power ON Delay & Auto Reset Time
Configurable for 1 phase and 3 phase
Individual faults can be deactivated as per system requirement
Programmable delay and hysteresis
Auto/manual reset option
Consistent reliability with high accuracy

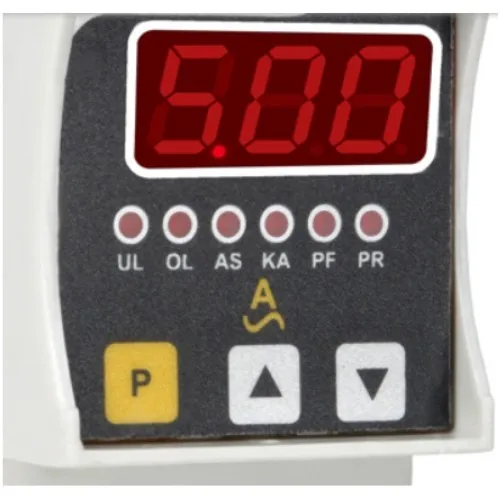

3 digit bright LED display
LED indication for healthy and faulty status


Specifications:-

Display : 3 digits, 1 raw / 7 segment LED display
Digit Height : 0.56" (14. 3 mm)
Dimension : 90x45x75 mm (LxBxH)
Set Point : 10 to 120 % of nominal current
Scroll time : 5 seconds
Relay contacts : 1 Potential free Contact (NO, C & NC)


Advantage:-

Protection of power assets
Detection and Isolation of Faults
Speedy tripping to avoid damage
Maintain supply continuity of healthy circuit


Applications:-

» Control Panel

» Feeder/Motor
» Generator

» Transformer
» Electrical distribution
