0.4-1.5 Ton stainless steel honey processing filtering machine

Technical parameter of honey processing machine:

Introduction of honey processing machine:

Currently, honey processing machine main used mechanical filters and low-temperature vacuum concentrated to remove impurities and excess water, Get a higher degree of vacuum systems and the reasonable structure of the low temperature evaporation device is the key to the processing technology of bee products. This equipment has fully realized honey enrichment process special requirements, and to meet the aspirations of bee products processing enterprises.


Process of honey processing machine:

The original honey  → Coarse filtration → Agitation, preheating → Fine filtration → Low temperature, concentrated → Filling

Principle of honey processing machine:

By the theory that Under high Vacuum condition ,boiling point of water will become low and then water in honey can evaporate rapidly and the to get high concentration honey ,  this set can melt honey crystals , remove dust inside , sterilization ,and ext to guarantee quality of honey.

Features of honey processing machine:

1.This set of Equipment are made of 304 stainless steel, easy to operate, reliable, efficient, vacuum suction honey.
2.They can achieve high vacuum and low concentration temperature is ideal for honey processing equipment.
3.Apparatus comprising: a preheating tank, filter, concentrate tank, a condenser, a vacuum pump.
4.The honey thickener machine can reach high vacuity and lower thickening temperature.
After concentrating the materials will not change color, not change flavor, the quality of materials after concentrating will be very good.
5.Good designed of the structure make the machine small, low noise, easy to operate.

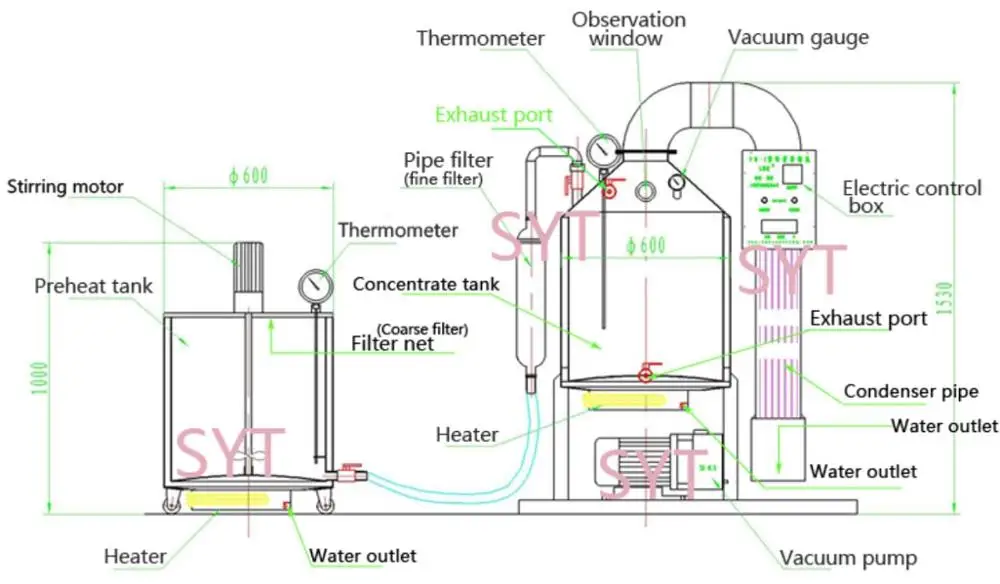

Structural drawing of honey processing machine:

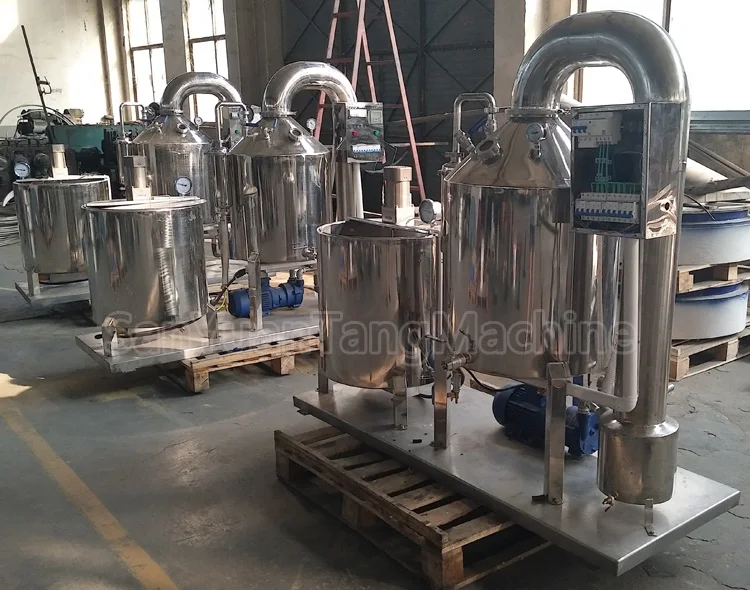

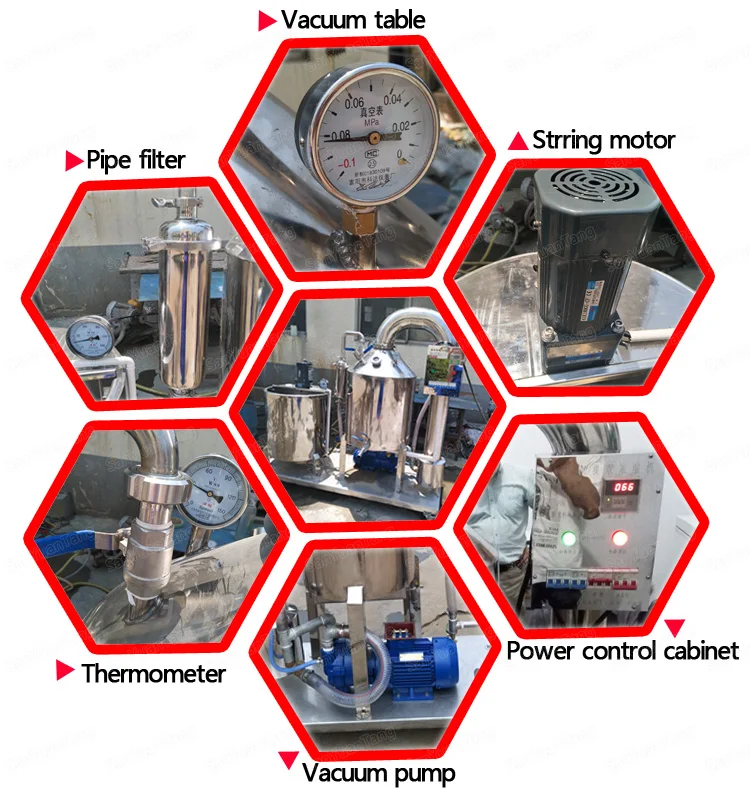

Actual pictures of honey processing machine:

Working pictures of honey processing machine:

Export standard plywood package are supplied with well packed. we can make the packages according to customer's request. Sea packages or Air packages are both available.
Usually to ship machine by sea way.

All produts purchased in our company are guaranteed to keep in good repair for one year. If quality problems happen in guarantee period, our company will maintain for free.
