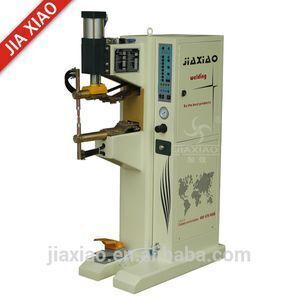

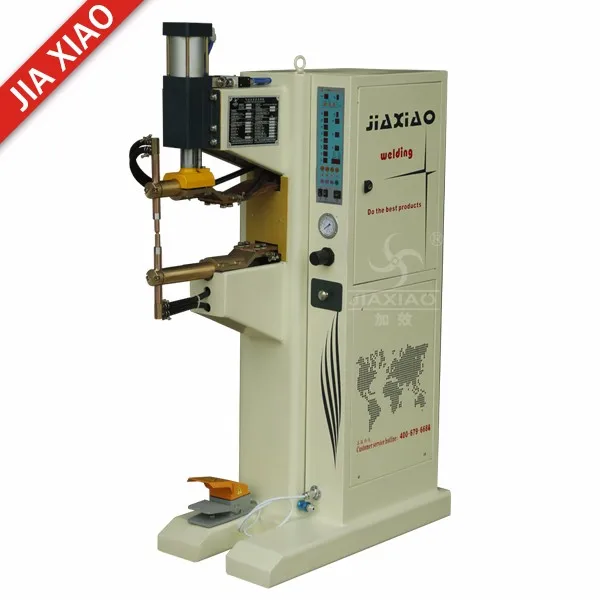

Spot welding machine DN-35 for steel iron stainless steel hardware

Supplier: Yongkang Jiaxiao Electric Welding Automation Equipment Co., Ltd.
Region: Zhejiang, China
Contact: Mr Yike Yang
Price: $1000.00 /set
Min. Order: 1 set

Click here to contact

Product details

Control system:	Micro-computer;	Model Number:	DN-35;
Power(W):	35KVA;	Weight:	215Kg;
Dimensions:	9504301450mm;	Max. Welding Thickness:	2mm+2mm;
Port:	Ningbo/Shanghai;	Warranty:	One Year;
Supply Ability:	15 Set/Sets per Month;	Brand Name:	Jiaxiao;
Machine type:	Resistance welding machine;	After-sales Service Provided:	Engineers available to service machinery overseas;
Rated Duty Cycle:	15%;	Duty cycle:	15%;
Rated Capacity:	35KVA;	Voltage:	380V;
Condition:	New;	Packaging Detail:	Wooden case or Iron box;
Usage:	Welding hardware;	Function:	Welding workpiece;
Cooling system:	Water cooling system;	Consumer of cooling water:	3L/min;
Dimension:	9504601450mm;	Place of Origin:	Zhejiang China;
Payment Terms:	L/C,T/T,Cash;	Certification:	CCC CE SONCAP;
Weight:	215kg;	Color:	Same as the picture;
Delivery Detail:	Shipped in 20 days after payment;

Spot welding machine DN-35 for steel iron stainless steel hardware

Main technology parameter:

Model	DN-35	DTN-63	DTN-100
rate capacity	35KVA	63KVA	100KVA
rate voltage input	380V	380V	380V
Inverter frequency	50HZ	50HZ	50HZ
Max.short-cut current	15KA	19KA	27KA
Max.welding input	79KVA	139KVA	207KVA
Duty cyclce	15%	15%	15%
Arm dimension	200*420mm	220*420mm	220*420MM
Max.pressing force	2500N	3900N	6100N
Cylinder stroke	60mm	60mm	60mm
Consumer of cooling water	3L/min	3.5L/min	4L/min
Electrode head	Φ13mm	Φ16mm	Φ20mm
Electrode holder	Φ20mm	Φ25mm	Φ30mm
Electrode arm	Φ44mm	Φ49mm	Φ59m
Projection		110*130mm	120*130mm
Welding ability	2mm+2mm	3mm+3mm	4mm+4mm
Weight	215Kg	265Kg	337Kg
Dimension	9504301450mm	9604601500mm	10204901580mm

Benefits:

1.Transformer is made of copper and epoxy resins with cooling water and low resistance, low loss and high output, good seismic performance, high power factor, transformer can be replaced without charge in five years because of quality defects.

2.Microcomputer constant pressure/current controller, three sections discharging,can control each welding time and welding current accurately, easy to operate.

3.The upper and lower arms are entire plate and "C" structure, which make the machine body having good rigidity. The main axis of the cylinder is designed with big and small axis, fall down fast and reduce shock. These designs promise the high and steadily welding quality.

4.Reasonable secondary circuit structure, high quality conductive material, which reduces circuit impedance greatly and makes sure high efficiency and saving energy welding.

5.Air storage tank in the front and muffler in the back can reduce the room for installing air storage tank, make working pressure more steadily and reduce the noise of exhausting gas.

6.The pressure regulator and pressure gauge in the front are convenient to operate and look more comfortable. Toolbox is designed by separating electrical box room to place file, sandpaper, and handle for unloading electrode conveniently.

7.The asymmetric bodydesign is introduceed firstly in China. It has the benefits of compact structure, convenient to transport,install and maintain. This design is more humanizing and industrialized.

8. It is widely used in hardware,electrical appliances, automative, aerospace and other fields of high quality welding requirements.

Use:

This type of welding machine widely used in hardware manufacturing, traffic tools, household items, cars. And it can be welded low-carbon steel, stainless steel, coated steel, non-ferrous metal wire, sheet etc.

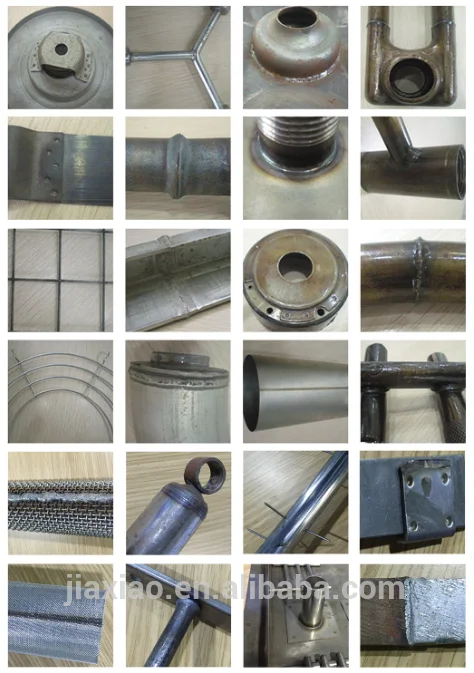

Sample Picture:

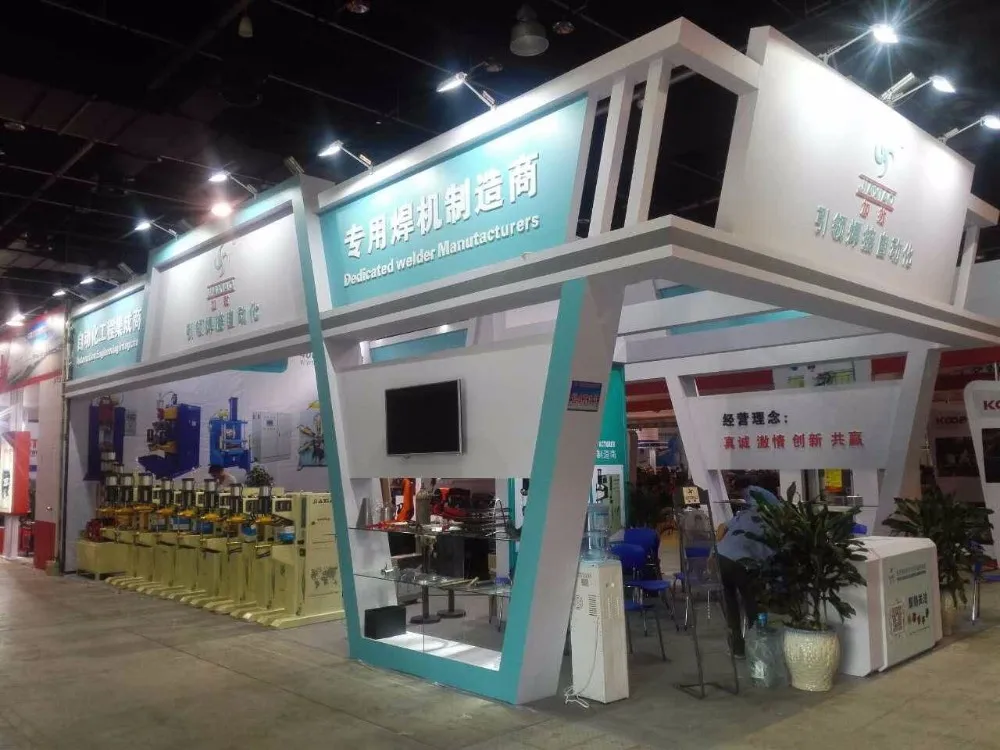

Factory Picture:

Why choose Jiaxiao products?

1.About product purpose.

(1). The pursit of quality, advocating the best services.

(2). For customers to reduce costs and improve efficiency.

2.About factory.

(1).Over 2 years of OEM&ODM experience on specialized resistance welding machine. Excellent service on before sale, on sale and after sale.

(2).Quick response, all your question will be answered within 48 hours. Our motto is "Quality first, customer utmost". We have professional sales team, who is not only a repair but also a problem solver, we always give customers the most feasible marketing suggestions according to their own market mode.

3.About Market.

Our products are widely accepted all over the world, such as USA, Mexico, Southeast Asia, India etc.

4.Why choose Jiaxiao?

(1).OEM services are welcome.Welcome to visit our factory before your place an order.

(2).High quality control.

(3).23 years mechanical manufacturer.

(4).Cooperate with many foreign customers.

(5).Committed to the standardization of machinary market. We make great efforts to the production of high quality and durable machine with the technological innovation.

(6).Our products with best price and quality.

(7).Our mission is to help our customers reduce cost and improve efficiency.

5.Shipping

(1).Sea transportation, land transportation,air transportation, the express transport and so on.

(2).Please choose your convenient shipping method according your details requirment.

(3).The shipping discount is different in different season and depend different weight, we will choose the cheapest and safest way according your details quantities.

6.Delivery

(1).Delivery time is 10-15 working days after confirm contract,

(2).OEM 15-30 days after all info confirmed.

(3).Depends on order quantity.

(4).Special pproduct to discuss.

7.Warranty

One year warranty the seller shall supply the free replacement spare parts( but Not including the mould,wearing parts and the item of wrong using.)
