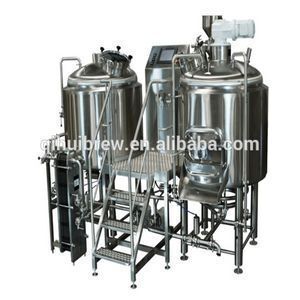

200L brewhouse of beer brewing equipment

Product details
Port:Qingdao;Condition:New;
Delivery Detail:30 working days;Keywords:200L brewhouse;
Voltage:Adjustable;Packaging Detail:Inner packing:Plastic film wrapped and iron frame fixing for FCL Outer packing:Wooden/Veneer case for LCL;
Supply Ability:200 Set/Sets per Month 200L brewhouse of beer brewing equipment;Processing Types:beer;
Material:Stainless Steel;Certification:CE ISO;
Power(W):Varies Depending;Processing:Fermenting Equipment;
Heating method:Electricity Steam Fire;Function:Brewing Beer Brewing Equipment;
After-sales Service Provided:Engineers available to service machinery overseas;Name:200L brewhouse of beer brewing equipment;
Model Number:200L;Place of Origin:Shandong China;
Brand Name:QiHui;Product Name:200L brewhouse of beer brewing equipment;
Weight:Defferent Models;Capacity:200L;
Application:Brewpub;Control system:Semi-automatic;
Dimension(L*W*H):Capacity Request;Payment Terms:L/C,T/T,Western Union,cash;
Warranty:5 Years;



Product Description

Product Description:

200L brewhouse of beer brewing equipment

200L brewhouse of beer brewing equipment configuration list

No.

Name

Quantity

Mark

1

100-200kgs/h miller

1

Grains miller

2

Brewhouse

Mash/lauter tun

Kettle/whirlpool tun

2

Electric heating

3

Fermenter

6

Beer capacity base on quantity of fermenter

Fermentation 2 weeks

4

Bright beer tank

2

Add CO2

5

Control unit

1

Digital control

6

CIP unit

1

Clean the brewery

7

Cooling unit

1

Glycol water tank+chiller+pump

2-Vessel Brewhouse Introduction

Mash/Lauter tun
Mash tun is a vessel used in the mashing process to convert the starches in crushed grains into sugars for fermentation. The mash tun can be single function or can also have a false bottom and spigot so that the sparging
process can be done in the same vessel.

The lauter tun is used for filtering and clarifying the sugar liquid (called wort) out of the heated water-malt mixture (called mash) that comes from the mashing tun.
Kettle/Whirlpool tun
After lautering, the beer wort is boiled with hops (and other flavourings if used)in a large tank known as a brew kettle.
At the end of the boil, the hopped wort settles to clarify in a vessel called a "whirlpool" where there

is a tangential inlet of wort. Whirlpool can happen in the kettle because there is no obstacle inside the kettle.



Certifications

Certifications:





Qihui Standard

    Qihui Standard

Material

1. The material of the stainless steel.

It is the Stainless Steel 304.

Some factories are using 201 which is not food grade. And as a customer, it is not easy to test it.

Only when the 201 get rust, you will find it. But it is too late.

Now each batch of our steel plate will be randomly cut one part to be tested in our authoritative lab (government institute) and have the certificate for the material.

Not only the steel plate (sheet), but also the valves, pipes, bolts etc.

2. The thickness of stainless steel.

Most of the suppliers are quoting with 3mm interior shell and 2mm exterior shell. In fact, the real thickness is only 2.5mm and 1.5mm.

You may find the thinner sheet(plate) will easily distort after welding because of the high temperature.

3mm and 2.5mm, that is about 16% difference in weight. So this part is what customers can not test.

We have the stainless steel quality certificate and also we usually take the samples to test it from the government. We ensure its quality.

FAQ

FAQ:

1. Can your beer brewing equipment make both lager and ale?

A: Yes, our beer brewing equipment can make both lager and ale.

2. How to achieve temperature control?

A: The PLC or digital dispalyer could control the temperature by connecting with the PT 100 sensor. The brewing tanks with rock wool to keep warm, the fermenters and bright beer tank with PU as cooling jacket to keep cool.

3. What type of control system?

A: Our control system is PLC control, also pass the CE.

Our Services

Services:

5 years warranty24 hours service
Guide and free installationBeer recipes
Spare partsQuality guarantee
3D drawing and details drawing Manual operate book
