Power(W): | 3.7KW; | Voltage: | 220V/380V; |
Payment Terms: | L/C,T/T,Western Union,MoneyGram; | Place of Origin: | Henan China; |
Quality: | Top Level; | Brand Name: | Shuliy; |
Market: | India; | Warranty: | One Year; |
Model Number: | SL; | After-sales Service Provided: | Overseas service center available; |
Port: | qingdao port; | Capacity: | 800000 Pecs/8 Hours; |
Raw material: | Bomboo/wood; | Usage: | Sticks; |
Price: | Best price; | Condition: | New; |
Weight: | 450kg; | Certification: | ISO CE; |
Function: | Strips; | Toothpick Specification: | 2mm Diameter; |
Dimension(L*W*H): | 1460*660*1000mm; | Name: | bbq stick making machine; |
Color: | As you required; | Packaging Detail: | Packaging Details: 1. standard export wooden case package 2. non fumigation feature .3. a whole production line, will take a 20 FT. 4. once machine manufactured well, pack well, packing photos will be sent to you as you check 5. Any capacity can be customized. 6. machine package based on clients demands Delivery Detail: 3-4 days after delivery; |
Supply Ability: | 500 Set/Sets per Month; |
Contact Details:
Ms Lisa
tel:0086-371-86660712
fax:0086-371-86660713
Mob:0086-13673685830
Skype:lisamachine
Brief Introduction of bbq stick making machine :

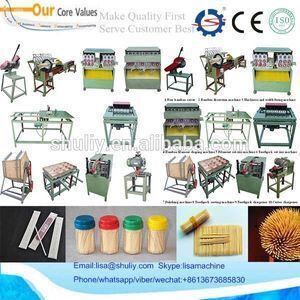

The production series include the wood toothpick machine and bamboo toothpick machines.Toothpick Machine is composed of 7 machines which is used for producing wooden and bamboo toothpicks from square timber to finished products.
:
Toothpicks Making Machine includes 10 machines totally.
v Raw bamboo sawing
v Bamboo dissection machine
v Fixed thickness and width slicer
v Bamboo filament shaping machine
v Bamboo filament set-size machine
v Toothpick set-size machine
v Polishing machine
v Toothpick sorting machine
v Tooth pick mincing machine
v Sharpen machine
The specification of toothpicks production Line:
Item | Model | Power(kw) | Weight(kg) | Outsize(mm) | |
Raw bamboo sawing | TZ-101 | 2.2 | 65 | 900*510*930 | |
Bamboo dissection machine | TZ-102 | 3.0 | 630 | 3000*850*1200 | |
Fixed thickness and width slicer | TZ-103 | 3.7 | 450 | 1460*660*1000 | |
Bamboo filament shaping machine | TZ-104 | 9.1 | 450 | 1050*650*990 | |
Bamboo filament set-size machine | TZ-105 | 0.75 | 85 | 1500*650*990 | |
Toothpick set-size machine | TZ-108 | 2 | 210 | 900*600*800 | |
Polishing machine | TZ-109 | 1.5 | 120 | 1000*800*1200 | |
Toothpick sorting machine | TZ-110 | 0.55 | 65 | 530*1000*800 | |
Tooth pick mincing machine | TZ-111 | 2.75 | 260 | 900*570*1010 | |
Sharpen machine | TZ-107 | 0.55 | 65 | 370*330*720 |

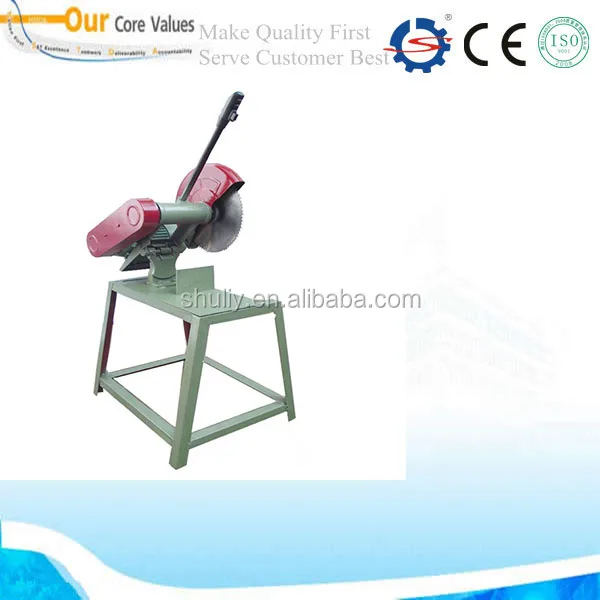

1.Raw bamboo sawing
Usage: Sawed used for feeding and cutting bamboo, better length is 1-1.2m
2.Bamboo dissection machine
Usage: Dissection cutter head(9-18heads)total 10, put the finished bamboo into the suit cutter head according to the size and Polish them into bamboo flakes, width from 20mm to 22mm, speed of feeding is 57m/min
3.Fixed thickness and width slicer
Usage: Put some of the flakes into this machine and flake, width is 3-4mm, speed of
feeding is 87m/min
4.Bamboo filament shaping machine
Usage: Put the polished bamboo flakes into this machine and make it
5. Bamboo filament set-size machine
Usage: The normal standard is 2*2.2mm, speed of feeding is 87m/min
6. Toothpick set-size machine
Usage: Set the filament, length of 34mm
7.Polishing machine
Usage: Polish the raw toothpick after the set-size

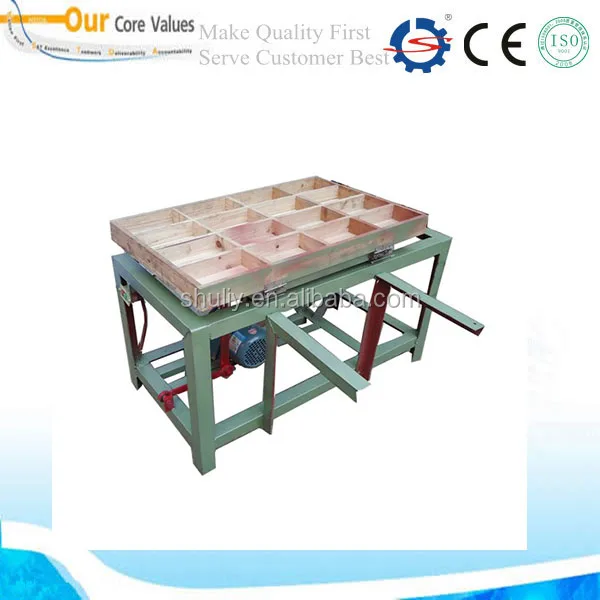

8.Toothpick sorting machine
Usage: Saw web300mmX120T, the normal length of toothpick is set 65mm
9.Tooth pick mincing machine
Usage: Sharp the toothpick, feeding automatically, 1500PCS/min
10.Sharpen machine
Usage: Special for divided slice and set-sized raw web
Remarks:This machine is used for two head point type bamboo toothpicks.
Normal specification :dia 2.0mm,length 65mm.
The capacity of the entire production line : 800,000 sticks/ 8hours.
