Cheap dairy milk top shear stainless steel storage tank

Product details
Supply Ability:100 Set/Sets per Month;Warranty:1 Year;
Dimension(L*W*H):customed;Certification:CE/ISO;
Voltage:220V/380V;Port:Shenzhen/Shanghai/Guangzhou port;
Application:beverage or milk;Power(W):4000-11000;
Applicable Industries:Food & Beverage Factory,Farms,Food Shop,Food & Beverage Shops;Brand Name:SCWLT;
Processing Types:Milk;Function:Fresh milk/juice etc storage;
Condition:New;Name:Milk stainless steel tank;
Material:Stainless Steel 304 / 316L;After-sales Service Provided:Field maintenance and repair service;
Processing:Storage Tank;Capacity:15000-120000L;
Cleaning type:Liquid Cleaning;Payment Terms:L/C,T/T,Western Union,MoneyGram;
Weight:customed;Packaging Detail:Wooden case or others;
Place of Origin:Sichuan China;
Product Description

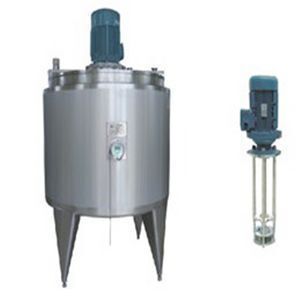

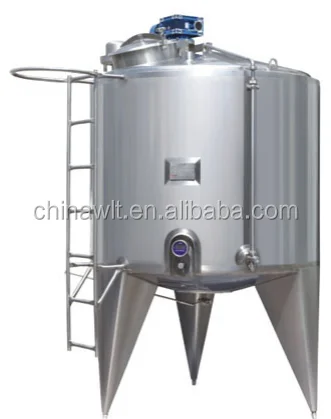

factory small dairy milk top shear emulsion stainless steel tank

The top shearing tank is an advanced mixing equipment for the domestic beverage, dairy and other food industries. The shearing head adopts mature products from domestic well-known brand suppliers, and has mixing and emulsifying functions.

Suitable for: emulsion, paint, pectin, etc. Need to stir, homogenize, shear, dissolve functional products.

Technical description

The material is made of stainless steel SUS304 or SUS316L, tank inner δ=3mm, outer δ=2mm, jacket δ=1.5mm, cylindrical cylinder, cone bottom 15°-45°, PU polyurethane foam or rock wool insulation, shearing head SU316L material.

Volume:600L-3000L.

Detailed Images
Model
Capacity (L)
external diameter (mm)
Height (mm)
Insulating layer (mm)
CIP diameter (mm)
Material inlet/outlet diameter (mm)
Motor power (kw)
Side stirring speed (rpm)
WLTGRH-0.6
600
800
2140
60
Φ51
Φ51-Φ76
7.5
2900/ 1450rpm
WLTGRH-1.0
1000
1050
2380
60
Φ51
Φ51-Φ76
11
2900/ 1450rpm
WLTGRH-1.5
1500
1180
2450
60
Φ51
Φ51-Φ76
15
2900/ 1450rpm
WLTGRH-2.0
2000
1340
2760
60
Φ51
Φ51-Φ76
1835
2900/ 1450rpm
WLTGRH-2.5
2500
1460
2760
60
Φ51
Φ51-Φ76
22
2900/ 1450rpm
WLTGRH-3.0-
3000
1540
2780
60
Φ51
Φ51-Φ76
22
2900/ 1450rpm

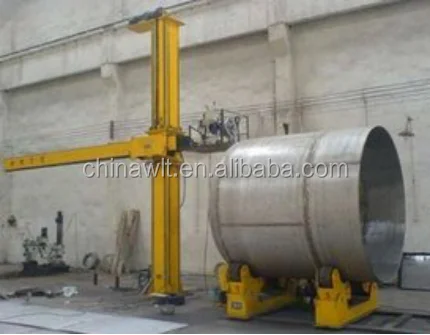

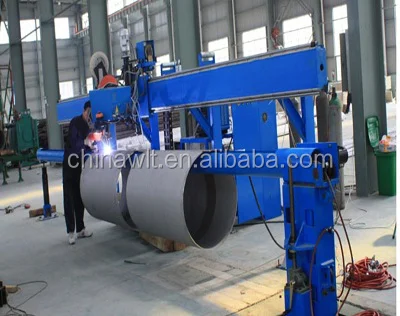

Our Factory

Sichuan Wanliteng Machinery equipment Co., Ltd

Sichuan Wanliteng Machinery equipment Co., Ltd. is a professional factory of scientific and technological development enterprise specializing in the field of food health equipment. Our company integrates scientific research and development, process design service, engineering general contract, equipment manufacturing, engineering installation, debugging and training.



Sichuan Wanliteng Machinery and equipment Co., Ltd. specializes in:
Dairy engineering
Condiment engineering
Plant herbal beverage project
Plant protein beverage engineering
Fruit and vegetable juice food engineering
Biopharmaceuticals, fine chemical engineering
Single machine equipment of various fluid types

The company takes the lead in the introduction, digestion and absorption of advanced technology and technology at home and abroad, takes the road of continuous innovation and development, actively promotes in-depth exchanges and cooperation within the fluid industry, and promotes the healthy and orderly development of the food industry.
