spice grinder machine pepper chilli miller powder grinding machine

Supplier: Brightsail Industries Group Co., Ltd.
Region: Jiangsu, China
Contact: Ms Jewel Qian
Price: $24000.00 /set
Min. Order: 1 set

Click here to contact

Product details

Product Type:	spice food;	Certification:	CE ISO;
Output Size:	20-150 Mesh;	Weight (KG):	1500;
Brand Name:	BrightSail;	Warranty:	1 Year;
capicity(kg/h):	100-1200kg/h;	Dimension(LWH):	Customizable;
Selling Units:	Single item;	usage:	powder making;
Place of Origin:	Jiangsu China;	Voltage:	220~480v;
Condition:	New;	Output (kg/h):	20 - 200;
Applicable Industries:	Food & Beverage Factory,Restaurant,Food Shop;	Material:	Sus304/316;
Type:	Grinder;	Product Type:	Hammer grinder;
Power(W):	22~75kw;	Single package size:	107X65X45 cm;
Feed motor:	0.25Kw;	Single gross weight:	68 KG;
Package Preview:	https://sc01.alicdn.com/kf/HLB1TK3qKrrpK1RjSZTEq6AWAVXa0.jpg_640x640.jpg;	Application:	Medicine Processing,Chemicals Processing,Food Processing;
Weight:	2-5 ton;	After-sales Service Provided:	Free spare parts,Field installation, commissioning and training,Field maintenance and repair service,Online support;
Package Type:	Wooden packing;	certificate:	CE ISO;
Application:	mill chocolate powder;	Key Selling Points:	Automatic;

Product Description

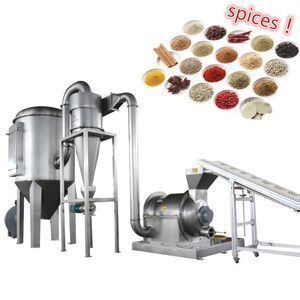

spice grinder machine pepper chilli miller powder grinding machine

Product Application

This is our lastes advanced hammer mill set:

It features:

1) no need screen or sieve in mill chamber!!!!change powder particle size by changing speed;

2) Because it has no screen in mill chamber,when milling, there is no heat rising in mill chamber;

No need to worry power get stuck in the screens or product quality get affected by the heat from the mill. That's why it is very suitable for grinding heat-sensitive material or material contains fiber or oil.

3) The mill part combines coarse crusher, middle fine mill and fine mill together, which means it can makes fine powder directly from big raw material, very effective.

4) It can save more power, its capacity is much bigger than other same motor traditional mill.

this machine has a very good effect for milling different kinds of food,like spice,herbs,milk powder and chemicals,feed...etc.

Technical data:

Model	BSDF-350	BSDF-450	BSDF-550	BSDF-650	BSDF-750
Rotor speed(rpm)	3500-4500	3300-4200	2900-3600	2400-3100	2100-2700
Grind motor(Kw))	15/22	30/37	37/45	45/55	55/75
Feed motor(Kw))	0.25	0.25	0.25	0.25	0.25
Discharge motor(Kw)	0.75	0.75	1.1	1.1	1.5
Blower(Kw)	7.5	15	18.5	18.5	22
Grind fineness(mesh)	20~150	20~150	20~150	20~150	20~150
Capacity(Kg/hr)	100~200	300~500	400~800	600~900	800~1300

Detailed Images

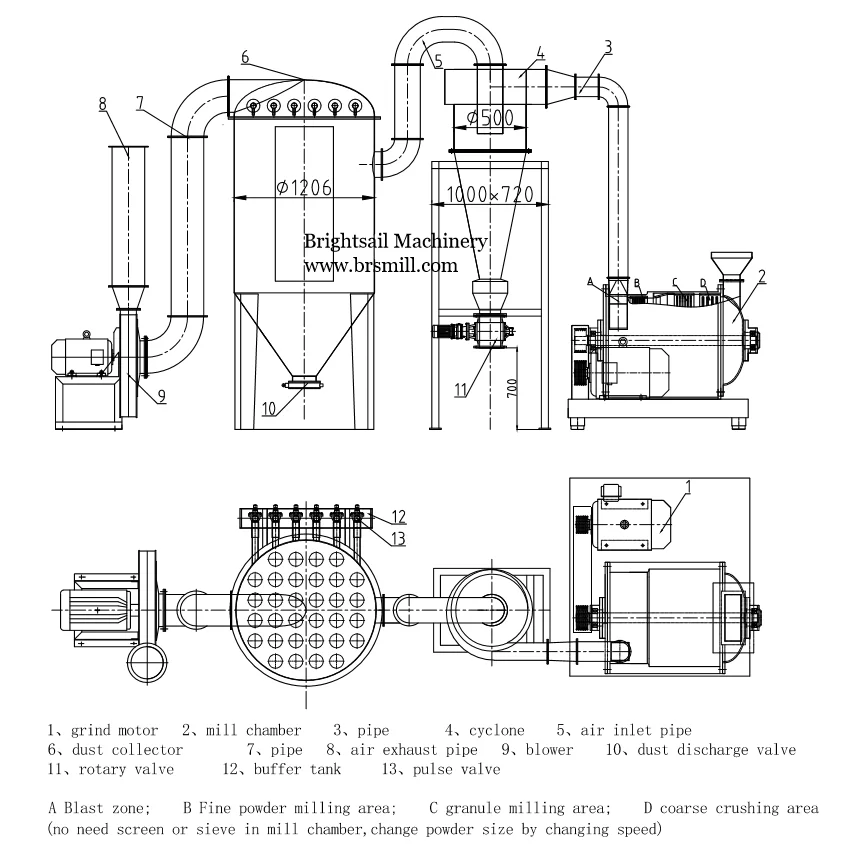

remark:

1) Dust is collected inside the dust collecting box.

Inside box, there are many dust collecting bags and the bag frames can be disassembled easily.
With pulse-jet cleaning, dust can be collected very conviniently.

2) Cyclone can seperate dust from powder(granules),Rotary valve make powder discharge speed even.

3) Spare parts of the mill is hammer knife and liners, hammer knife's life is ~1 year and liner's like is ~2 years.
