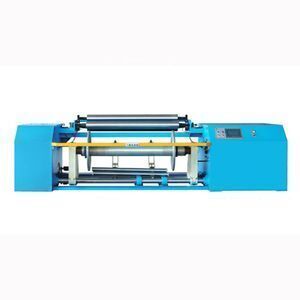

DKGA668 Fiberglass Warping Machine Warping Machine Accessories Aramid Section Warp Machine Bulletproof Fabric

Supplier: Jiangyin Deke Machinery Manufacturing Co., Ltd.
Region: Jiangsu, China
Contact: Mr. Wei JianPing
Price: $29999.00 /set
Min. Order: 1 set

Click here to contact

Product details

Warranty:	1 Year;	Dimension(LWH):	620019501500;
Port:	Shanghai;	Type:	Warping machine;
Efficient breadth:	1200, 3800mm(or optional);	Brand Name:	Deke;
Name:	DKGA668 Fiberglass Warping Machine;	Number of spindles:	800-2400 spindles(optional);
Packaging Detail:	Naked packaing or according to customer's requirements;	Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram,Cach/ Wechat;
Production Capacity:	High;	Place of Origin:	Jiangsu China;
Condition:	New;	Speed:	10-100m/min;
Input voltage:	380V±10%;	Application:	Weaving;
Supply Ability:	20 Set/Sets per Month;	Warranty:	1 year;
Weight:	11000Kgs;	Weaving beam plate diameter:	550mm, 800mm;
Power(W):	11kw;	After-sales Service Provided:	Video technical support,Online support,Field installation, commissioning and training,Field maintenance and repair service;
Spindles' distance on creel:	180, 200mm(optional);	Power of main electric motor:	11kw;
Braking distance:	≤1m;

Warping machine definition

The yarn is evenly wound to the warp beam with a certain tension according to the number and length required by the weaving process for use by the warp knitting machine. This process is called warping. It is the preparatory process for warp knitting production. Warping quality has a great influence on warp knitting production. Practice has proved that about 70% of the defects in warp knitting are caused by bad warping. As an industry saying goes, "seven-point warping and three-point weaving" vividly illustrate the importance of warping.

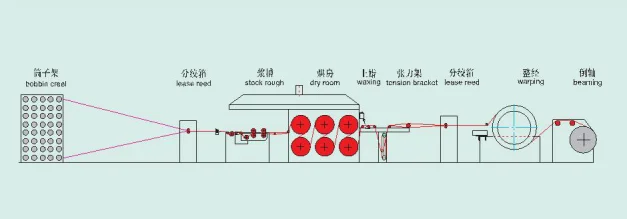

Process flow

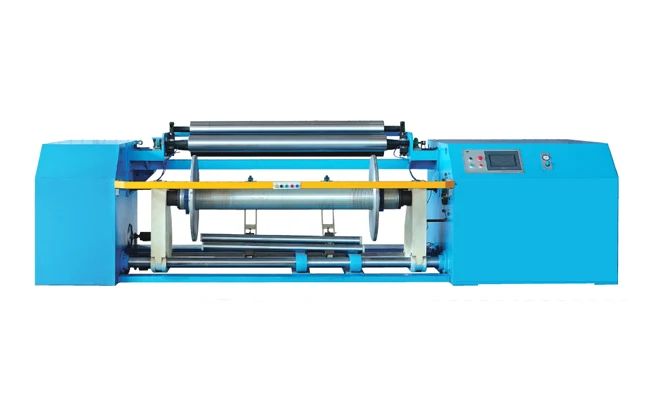

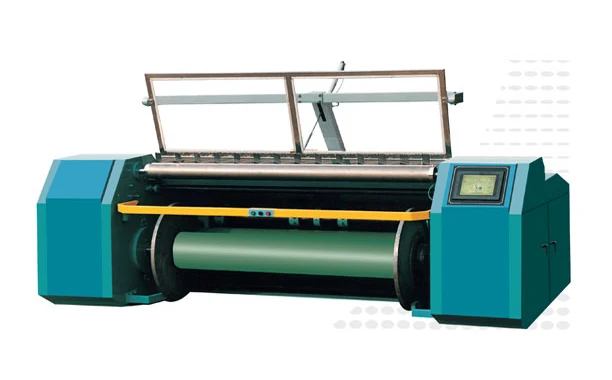

DKGA558 fiberglass warping machine

Scope of application

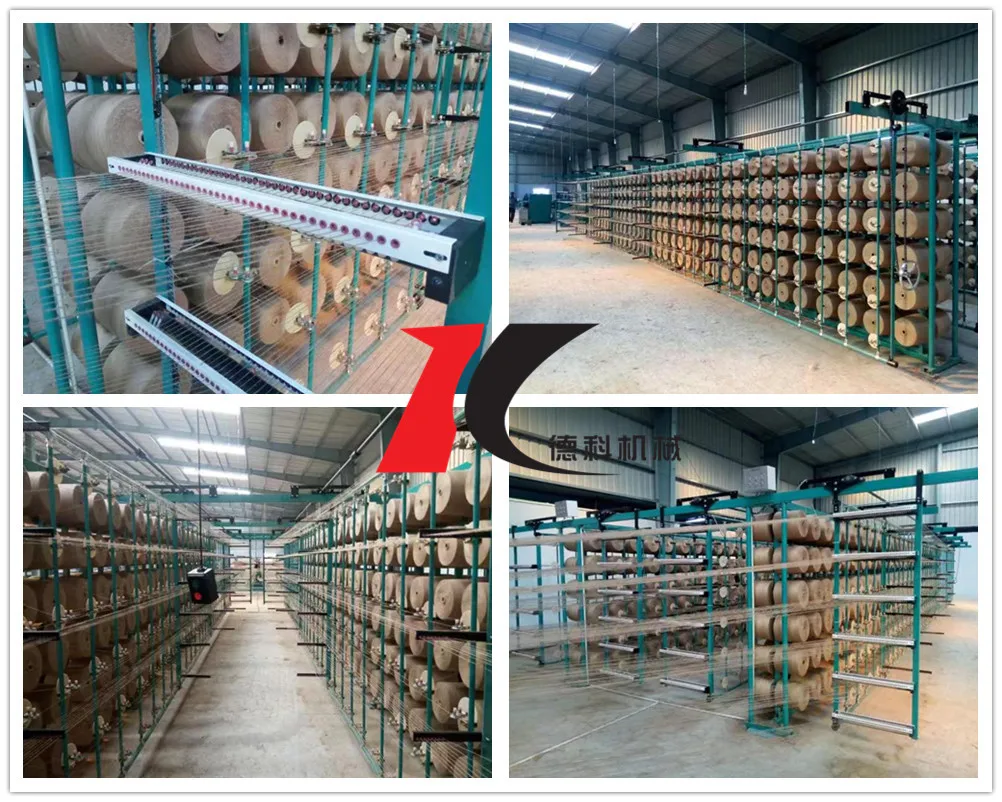

Guide the fiberglass on creel into steel reeds; after evenly arranging, coil onto the weaving beams for the use of beaming or sizing or weaving machines.

Technology features

*Adopt Germany Siemens PLC to take the safe, reliable and automatic control on programs.
*Adopt the technology of frequency conversion to ensure the constant line speed for winding.
*10.4 inches touchable screen is easy for operation and it can also display huge information such as line speed, length and cloth length, the outputs of a shift and a month as well as the location of malfunctions.
*Magnetic powder brakes control the adjustable tension of pinned yarns.
*Roller presses spindle shaft to make it flat and reach the ideal coiling density.
*Measuring the length, the line speed adopts Japan's Koyo encoding device.
*The ups and downs of spindle shaft are controlled by cylinder.

*Steel reeds' transversal movement is controlled by the electric motor
*Main electric motor drive to rotate the spindle shaft through reduction device.
*Adjustable warpping breadth
*Equipped with static elimination device
*Equipped with safety rails ans safety infrared rays switches to ensure the operator's safety.
*Light-electric breaks stop motion, lying in front of creel to execute the collective automatic stops, the auto-stop motion is sensitive and reliable.

Main electric configuration table

Name	SPEC	QTY	Brand/Origin
PLC controller	216-2AD21-0XB0	1 set	Simens
Inverter		1	Delta
Touch screen		1	Delta
AC contactor	LC1-D06	2	Schneider
Travel switch	TZ7311	1	Travel switch
Button	ZB2-	10	Schneider
Disconnector	DZ-47	7	Chint
Relay	HH53P DC24V	3	Wuxi
Switch power	S-145-24V	1	Mean well Taiwan
Infrared switch	BX15M-TDT1, TDT2	1 set	Autonics
Encoder	E6B2-CWZ6C 100P/R	1	Omron
Photoelectric switch		1 set	Korean

Show picture

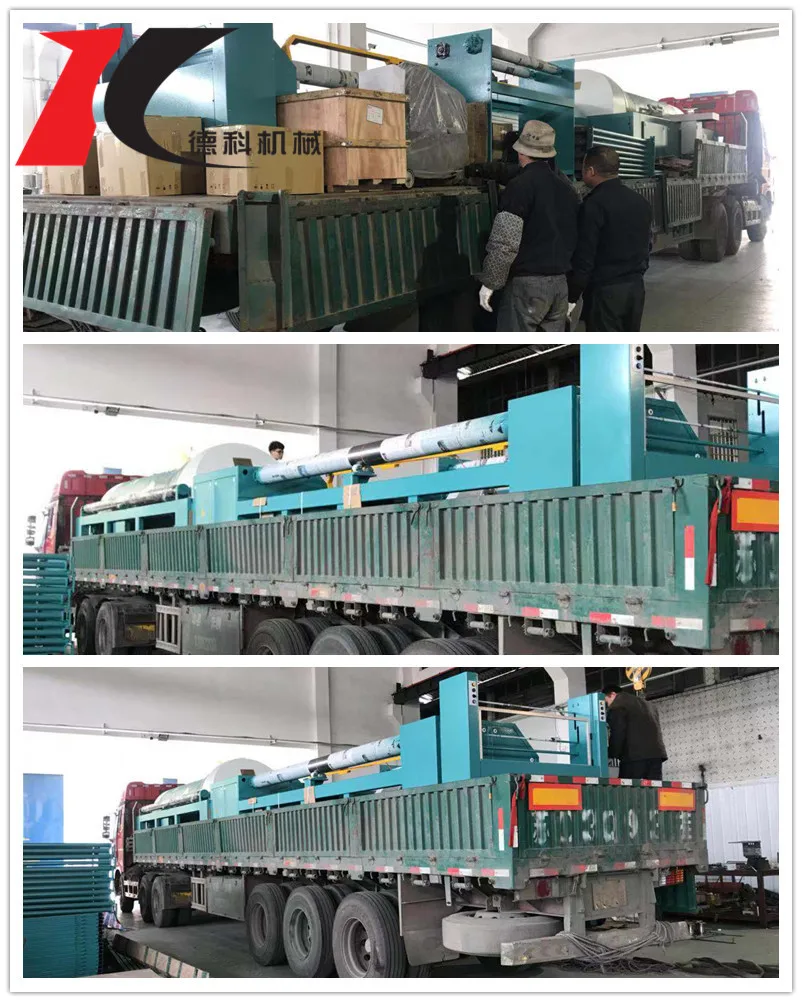

Packaging and Delivery

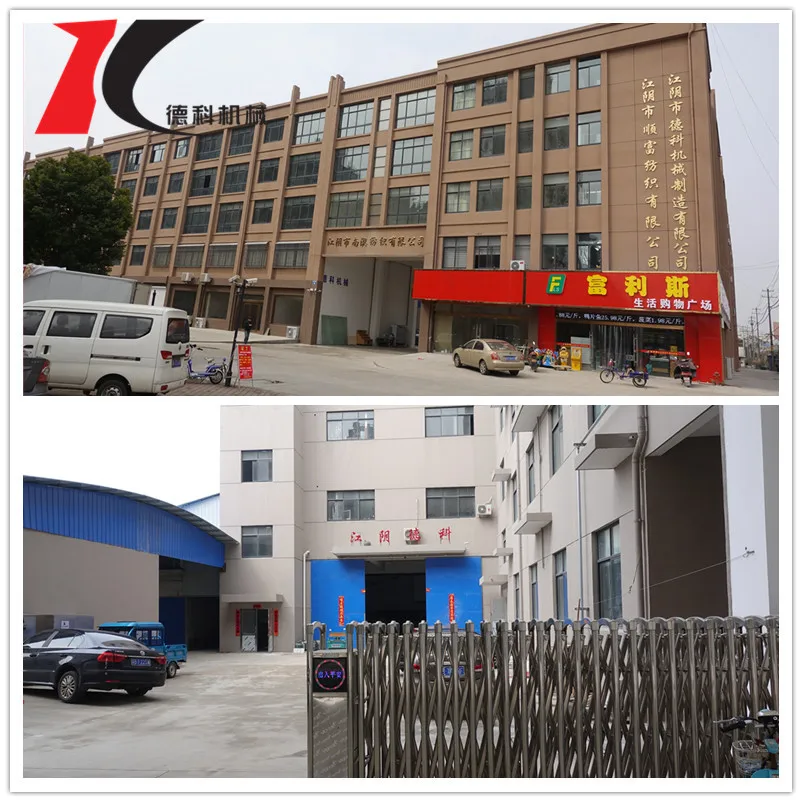

Company information

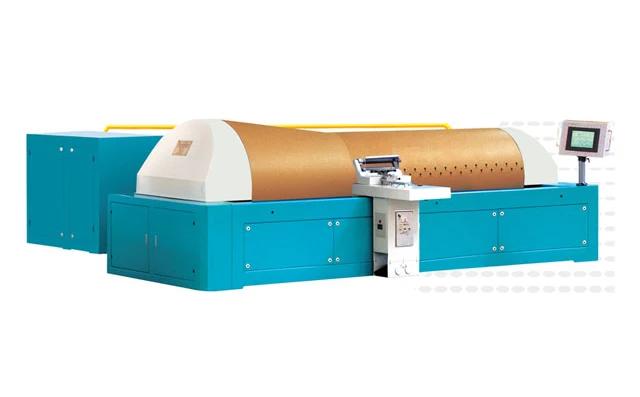

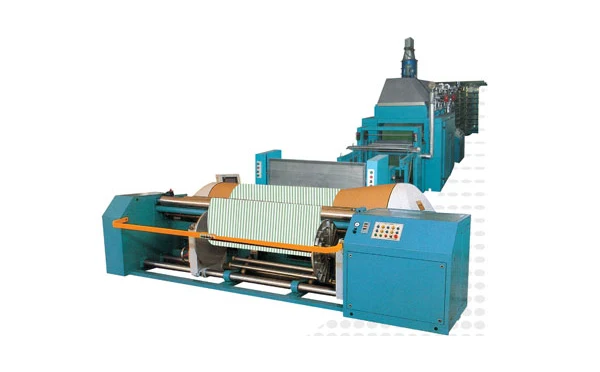

Our company has a group of professionals who has been engaged in the development and design od warping machines for many years. It has two assembly production lines with an annual production capacity of 200 sets. It produces four series of dozens of specifications and models, such as DKGA558 type sectional warper, DKGA528 type high speed batch warper, DKGA668 type glass fiber warper and DKGA598 series pulping combined machine, which can meet requirements of different users and different processes, and can be used with weaving machines, such as domestic and imported rapier, jet, water spray and film shuttle.

Our company has independent import and export rights. Its products are exported to all parts of the country and also exported to Southeast Asian markets, which are favored by people in the industry field. There are sales and service agencies in In Indonesia and Vietnam. We always take quality is the life of the enterprise as our tenet. We will meticulously control the quality and win every new and old customers of Deke with high quality products, first class service and honesty.

Our service

The company will uphold professionalism, after-sales service to make the following commitment:

Pre-sale service

Provide free pre-sales technical consulting,and make a scientific and reasonable equipment layout, technological process and system of theoverall design and planning according to the actual needs of your factory ,make sure that the whole factory system of your factory is the most economic and effective.

After-sale service

1. One year equipment warranty period;

2. Seasoned professional service engineer for installation, commissioning and acceptance of the equipment;
