Decanter centrifuge for CBD hemp oil extraction process

Supplier: Liaoning Fuyi Machinery Co., Ltd.
Region: Liaoning, China
Contact: Ms Molly Sun
Price: $38500.00 /set
Min. Order: 1 set

Click here to contact

Product details

Packaging Detail:	wooden case;	Power(W):	depend on model;
After-sales Service Provided:	Field installation, commissioning and training;	Bearing:	SKF Bearing;
Voltage:	380V;	Place of Origin:	China;
Certification:	CE;	Type:	Centrifuge;
Product Type:	hemp oil;	Weight:	depend on model;
Condition:	New;	Discharge:	Automaticlly;
Dimension(LWH):	depend on model;	Supply Ability:	100 Set/Sets per Year;
Brand Name:	FUYI;	Applicable Industries:	Manufacturing Plant;
Port:	Dalian /Shanghai;	Warranty:	1 Year;
Material:	SS316L;	Payment Terms:	L/C,T/T;

Product Description

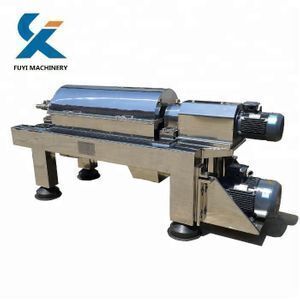

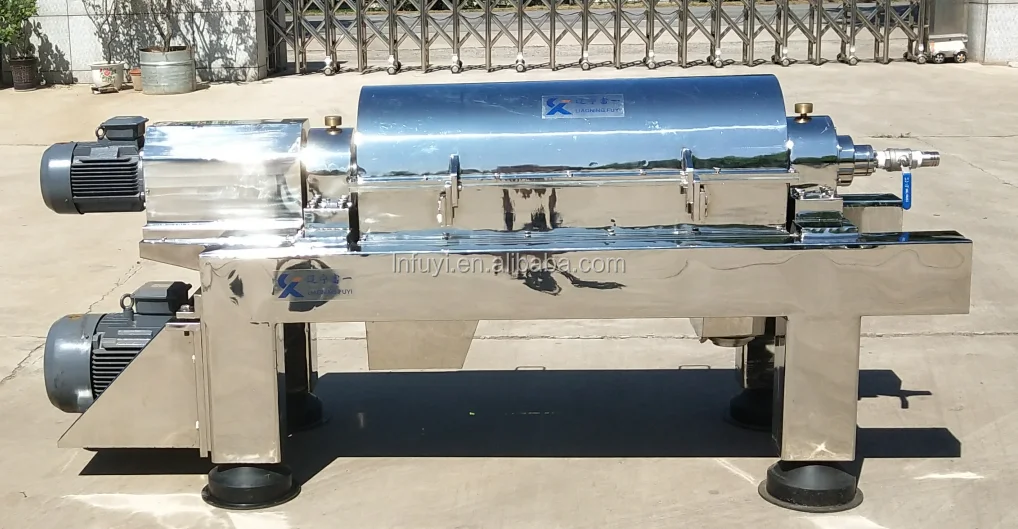

Decanter centrifuge for CBD hemp oil extraction process

The decanter centrifuge is suitable for solid-phase dewatering, liquid-phase clarification and separation,

Application

It is widely used in the production of chemical , printing, metallurgical coal mine, oil production, metallurgy ,iron and steel, fabric ,food, drink, pharmacy starch, dyes and so on, and it can also solve industrial and municipal wastewater. By use it, solid can be dehydrated, liquid can be clarified,such as:

Industrial wastewater treatment

Oil drilling mud separation

Dewatering of fish powder and fish meat

Dewatering of soybean and wheat protein

Clay mineral dewatering

Separation and purification for coal tar

Main feature:

Two motor, two frequency inverter drive system, realize differential speed stepless regulation and energy return.
Spiral stoker blades: Surfacing welding tungsten carbide grinding.
Drum cone cylinder material outlet: Replaceable wear resistant, corrosion resistant ceramic alloy bushing.
Main bearing: Sweden NSK
Main sealing parts: Taiwan SOG, material is Nitrile butadiene rubber
Electrical protection: overload, phase loss, torque protection
Main and vice inverter use common DC bus, vice motor’s function is generating electricity ( save electricity)
PLC remote control.

Structures and properties:

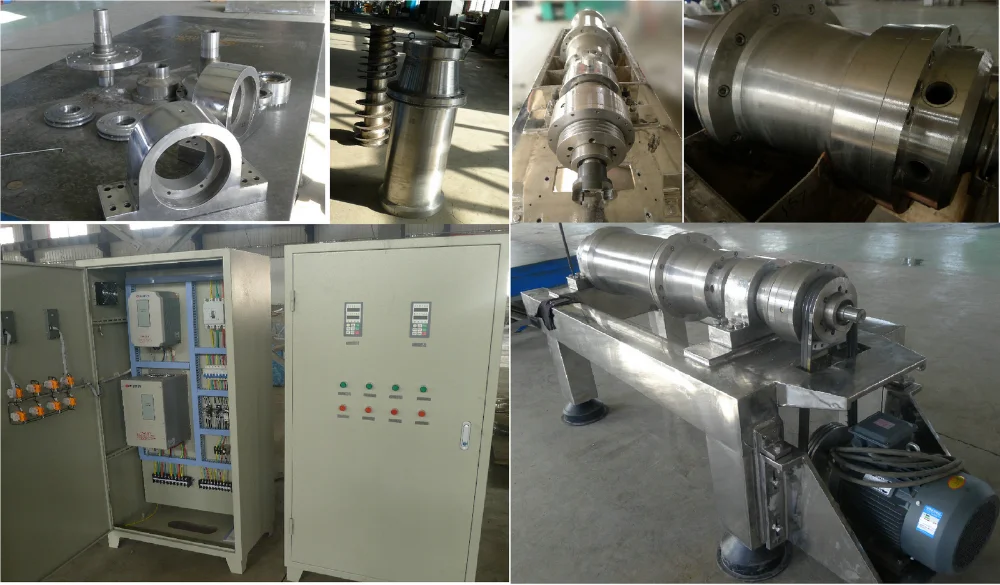

This machine is horizontal spiral discharging settling centrifuge, the main machine has a column-cone bowl, spiral stoker, differential system, bearing seat, base, cover, main motor,vice motor, and electric control chamber. With the high speed rotating of bowl, form strong centrifugal force, making the sludge dehydrate continuously in 24 hours a day.

The main motor through the triangle belt make the bowl rotating, through the planetary gear differential, make the vice motor and spiral differential speed different, realize sludge dewatering and pushing material function, That means differential rotating speed control and torque control. because containing solid rate of sludge may have wave motion, by differential speed control system is the guarantee for speed stability, achieve solid content in sludge is constant, the constant torque control make decanter load in a stable state, the separation effect and flocculation is the best state, so as to ensure the safe operation of the centrifuge.

This machine has good seal performance (guarantee without material leak in the process of operation), sludge dewatering work in full seal state, makes the environment clean.

This machine adopts the most advanced international special structural design, especially the spiral stoker, make the sludge concentration dehydration integration characteristics. It has better performance than ordinary centrifuge, more high capacity, better separation effect, save energy and manual work.

Model	Bowl diameter	Bowl length	Capacity	Motor	Weight	Dimention
LW250	250mm	960mm	0.5-5 m3/h	7.5kw	950kg	21201250680mm
LW300	300mm	1200mm	2-6 m3/h	11kw	1350kg	24501300900mm
LW355	355mm	1460mm	2-10 m3/h	15kw	1800kg	27501350830mm
LW400	400mm	1600mm	3-15 m3/h	22kw	2000kg	313016001080mm
LW450	450mm	1800mm	4-25 m3/h	37kw	2500kg	332017001130mm
LW500	500mm	2000mm	5-35 m3/h	45kw	4000kg	352018001170mm
LW600	600mm	1800mm	6-40 m3/h	55kw	4000kg	449014251690mm

Our Services

the suggestions from our customers, and offers the all-day, all-directional and top-grade market services.
The technical and after-sale services are listed as follows:
1. Provide free technical training, guidance and information of accessories.
2. Our technical staff could instruct our customers on the installation of connector and accessories on site, and deal with technical and quality issues.
3. We guarantee more than 10 years’ service life of our products with 1 years’ warranty and life maintenance.
4. 24-hour hot line: 86-18104024665 . Once receive the customer complaints, we will response within 24 hours.
5. Free maintenance and replacement will be provided if defects result from quality failure of our product.
6. Our company will provide technical services by phone, fax, e-mail, etc., please refer to the contact details.
7. Our company will implement the contract strictly; deliver the products to location specified by our customers for free in accordance with the mode of transportation.
8. Our company will provide perfect after-sale services and technical support.
