Application: | Automotive Industry,General Industry,Heavy Industry,Oil & Gas; | Bolts type: | U botls; |
Measurement system: | Imperial (Inch); | Material: | Stainless Steel; |
Payment Terms: | L/C,T/T,Western Union,Paypal; |

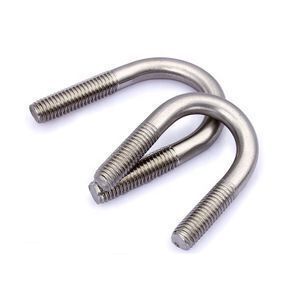

304 DIN3570 Stainless Steel U Bolt
A U-Bolt is a U shaped bolt with two threaded arms protruding from a curved base. There are many uses for a U-bolt such as attaching pipes to machines. Whereas a square shaped U-Bolt is mainly used for lumber applications.

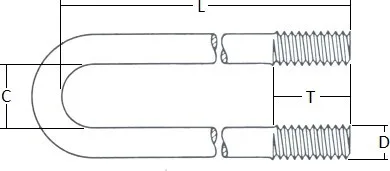

Diameter | C | L | T | Pipe Size | Tolerance |
Inside Width | Inside Length | Thread Length | |||
1/4 | 9/16 | 1 1/4 | 3/4 | 1/4 | +/-.039 |
1/4 | 3/4 | 1 1/4 | 5/8 | 3/8 | +/-.039 |
1/4 | 3/4 | 2 1/4 | 1 1/2 | 3/8 | +/-.039 |
1/4 | 1 | 1 3/4 | 1 | 1/2 | +/-.039 |
1/4 | 1 1/8 | 2 | 1 | 3/4 | +/-.039 |
1/4 | 1 | 2 3/4 | 1 1/4 | 1/2 | +/-.039 |
1/4 | 1 1/8 | 3 1/8 | 1 1/2 | 3/4 | +/-.039 |
1/4 | 1 1/4 | 2 1/4 | 1 1/4 | 3/4 | +/-.039 |
1/4 | 1 1/2 | 2 3/4 | 1 3/8 | 1 | +/-.039 |
1/4 | 1 3/8 | 3 7/16 | 2 3/8 | 1 | +/-.039 |
1/4 | 1 3/4 | 3 | 1 3/8 | 1-1/4 | +/-.039 |
1/4 | 2 | 3 1/4 | 1 3/8 | 1-1/2 | +/-.039 |
5/16 | 1 | 2 3/16 | 1 3/8 | 1/2 | +/-.039 |
5/16 | 1 1/8 | 2 3/16 | 1 | 3/4 | +/-.039 |
5/16 | 1 3/8 | 2 3/16 | 1 | 1 | +/-.039 |
5/16 | 1 3/4 | 2 11/16 | 1 1/8 | 1-1/4 | +/-.039 |
5/16 | 1 3/4 | 4 1/2 | 2 | 1-1/4 | +/-.039 |
5/16 | 2 | 2 11/16 | 1 | 1-1/2 | +/-.059 |
5/16 | 2 | 4 3/4 | 3 | 1-1/2 | +/-.059 |
5/16 | 2 1/2 | 3 3/16 | 1 | 2 | +/-.059 |
5/16 | 2 1/2 | 5 5/8 | 3 | 2 | +/-.059 |
5/16 | 3 | 3 11/16 | 1 | 2-1/2 | +/-.059 |
3/8 | 1 | 2 1/4 | 1 1/4 | 1/2 | +/-.059 |
3/8 | 1 1/4 | 2 1/4 | 1 1/4 | 3/4 | +/-.059 |
3/8 | 1 1/2 | 2 1/2 | 1 1/4 | 1 | +/-.059 |
3/8 | 1 3/4 | 2 3/4 | 1 1/8 | 1-1/4 | +/-.059 |
3/8 | 2 | 2 5/8 | 1 1/4 | 1-1/2 | +/-.059 |
3/8 | 2 1/2 | 3 1/8 | 1 1/4 | 2 | +/-.059 |
3/8 | 3 | 3 5/8 | 1 1/4 | 2-1/2 | +/-.059 |
3/8 | 3 1/2 | 4 1/8 | 1 1/4 | 3 | +/-.059 |
3/8 | 4 | 5 1/2 | 2 1/4 | 3-1/2 | +/-.059 |
3/8 | 4 1/2 | 6 | 2 1/4 | 4 | +/-.059 |
1/2 | 3 | 4 1/2 | 1 5/8 | 2-1/2 | +/-.059 |
1/2 | 3 1/2 | 5 | 1 1/2 | 3 | +/-.059 |
1/2 | 4 | 5 1/2 | 1 1/2 | 3-1/2 | +/-.078 |
1/2 | 4 1/2 | 6 | 1 1/2 | 4 | +/-.078 |
1/2 | 6 3/4 | 8 3/8 | 2 | 6 | +/-.118 |
1/2 | 8 3/4 | 10 3/8 | 2 | 8 | +/-.157 |
