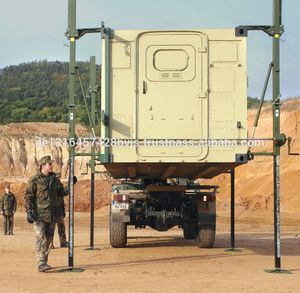

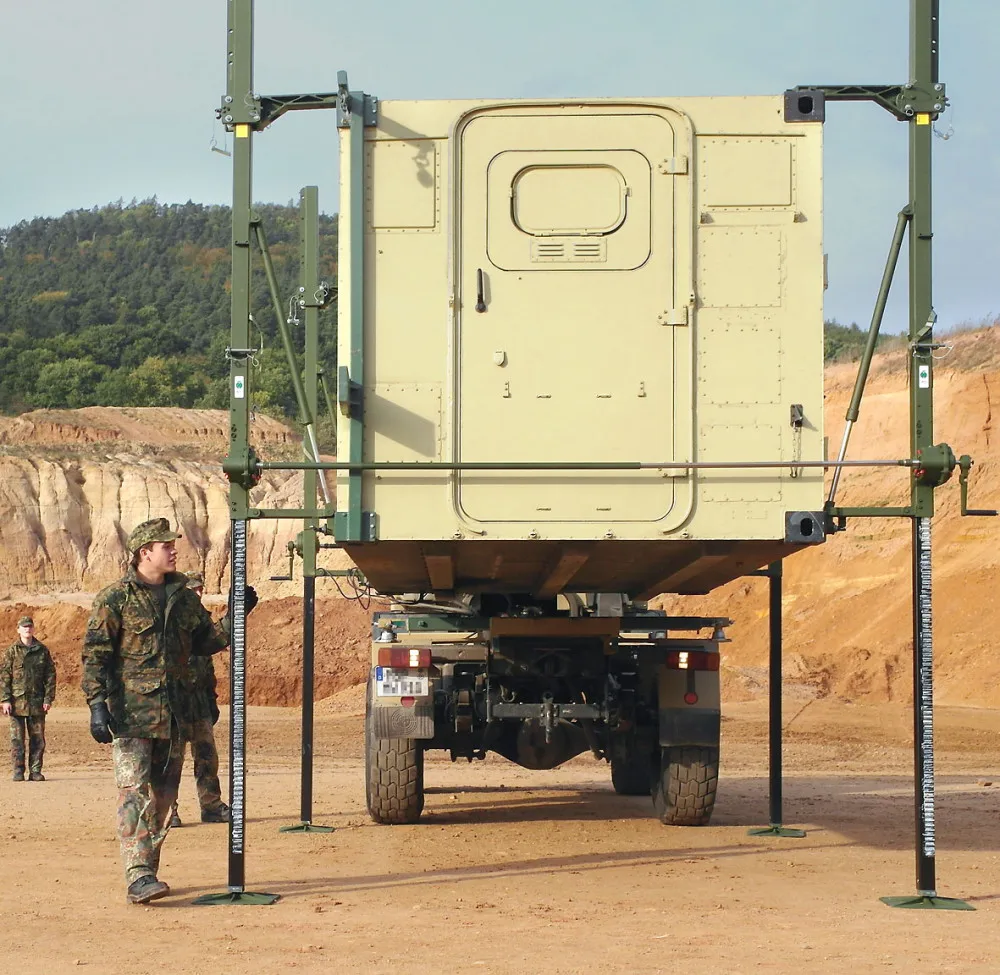

The 1889 is suitable for lifting and depositing containers from the truck

Description:

Specialised lifting systems for mobile devices
Depending on the application of the supports, the following technical parameters can be achieved: Container carrying capacity from 2.5 t to 20 t, Lifting heights from 500 mm to 1,750 mm (Optional maximum: 2,000 mm), Attachment to ISO corners and Position Control.
Innovative inclinometer-based position control is a special characteristic of our lifting systems and allows lifting and lowering action parallel to the ground during loading operations in uneven terrain, automatic initial inclination registration, inclination offset to zero degrees, control precision: +/- 0.2 degrees, safety shutdown when the inclination exceeds 3.5 degrees (or more, if required). Individual support control unit available as optional attachment.
In addition to our standard products, we offer customized designs:
Non-standard lifting heights, modified basic carrying capacity, specially adapted mounting and interlocking systems, special base plates, holding fixtures for easy lifting support transportation, tailor-made solutions with regard to functionality and intended uses, advice, assistance and support to customers implementing specific projects as well as special colours and paint coats.
Furthermore our products are accompanied by expertise and therefore offer appropriate performance in tests, trials and provision of samples. Our products are TUeV tested. Each product is subjected to functional and load tests performed on our own test equipment.

Pictures:

We offer various payment options. Please contact us for futher details.

1. Our products are packed according to the international export packing standards for seaworthy packing: carton box, plastic bag, wooden or iron/steel pallet or container.
2. We can also deliver our products carefully packed according to customer requirement. Please contact us for getting further details.
3. Packaging includes the full set of documents and (if necessary) operate maintenance and engine operate manual, spare parts list and set of inspection certificate issued by manufacturer.

haacon hebetechnik gmbh

ky.to/www.haacon.com

haacon hebetechnik gmbh, headquartered in Freudenberg am Main, is a manufacturer of special solutions in lifting technology. Business areas are Industrial Lifting Technology, Commercial Vehicle Technology and Lifting Systems. From a technical point of view, haacon develops hoists whose power transmission is carried out by means of a spindle, gear rack or rope.

haacon concentrates on the business units General Lifting Technology, Commercial Vehicle Components and Lifting Systems in the B2B sector.

The commercial vehicle components are mainly used by manufacturers of trailers and trailers (semi-trailers, construction and special vehicles). Specialised "mobile" hoists for containers are mainly used in the logistics of the armed forces and emergency forces (e. g. Technical Relief Agency, fire brigade, police). They guarantee self-sufficient operation with little or no existing infrastructure.
