Hot selling window and door used aluminum crimping machine
-
Supplier: Jinan Truepro International Trading Co., Ltd. -
Region: Shandong, China -
Contact: Mr Michael Ma -
Price: $1120.00 /set -
Min. Order: 1 set
| Applicable Material: | Aluminum; | Packaging Detail: | 1 set in one free-fulmigation wooden case for Hot selling window and door used aluminum crimping machine; |
| Port: | Qingdao; | Color: | Grey; |
| Production Capacity: | 100%; | Profile processing height: | 120mm; |
| Air pressure: | 0.6~0.8MPa; | Payment Terms: | L/C,D/A,D/P,T/T,Western Union,MoneyGram; |
| After-sales Service Provided: | Online support,Field installation, commissioning and training,Field maintenance and repair service,Video technical support; | Voltage: | 380V or as your requirement; |
| Weight: | 400kg; | Warranty: | 1 Year; |
| Power(W): | 2.2kw; | Certification: | CE; |
| Key Selling Points: | Easy to Operate; | Dimension(L*W*H): | 1300*1200*1200mm; |
| Input power: | 2.2Kw; | Profile width: | 90mm; |
| Applicable Industries: | Manufacturing Plant,Construction works ; | Overall dimension: | 1300*1200*1200mm; |
| Corner crimping casing movement journey: | 85mm; | Weight: | 300Kg; |
| Brand Name: | Truepro; | Supply Ability: | 50 Set/Sets per Month; |
| Rating oil pressure: | 15MPa; | Product name: | Hot selling window and door used aluminum crimping machine; |

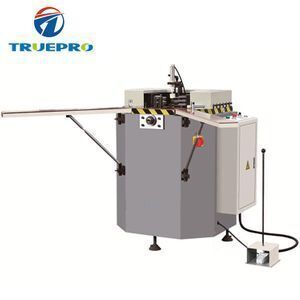

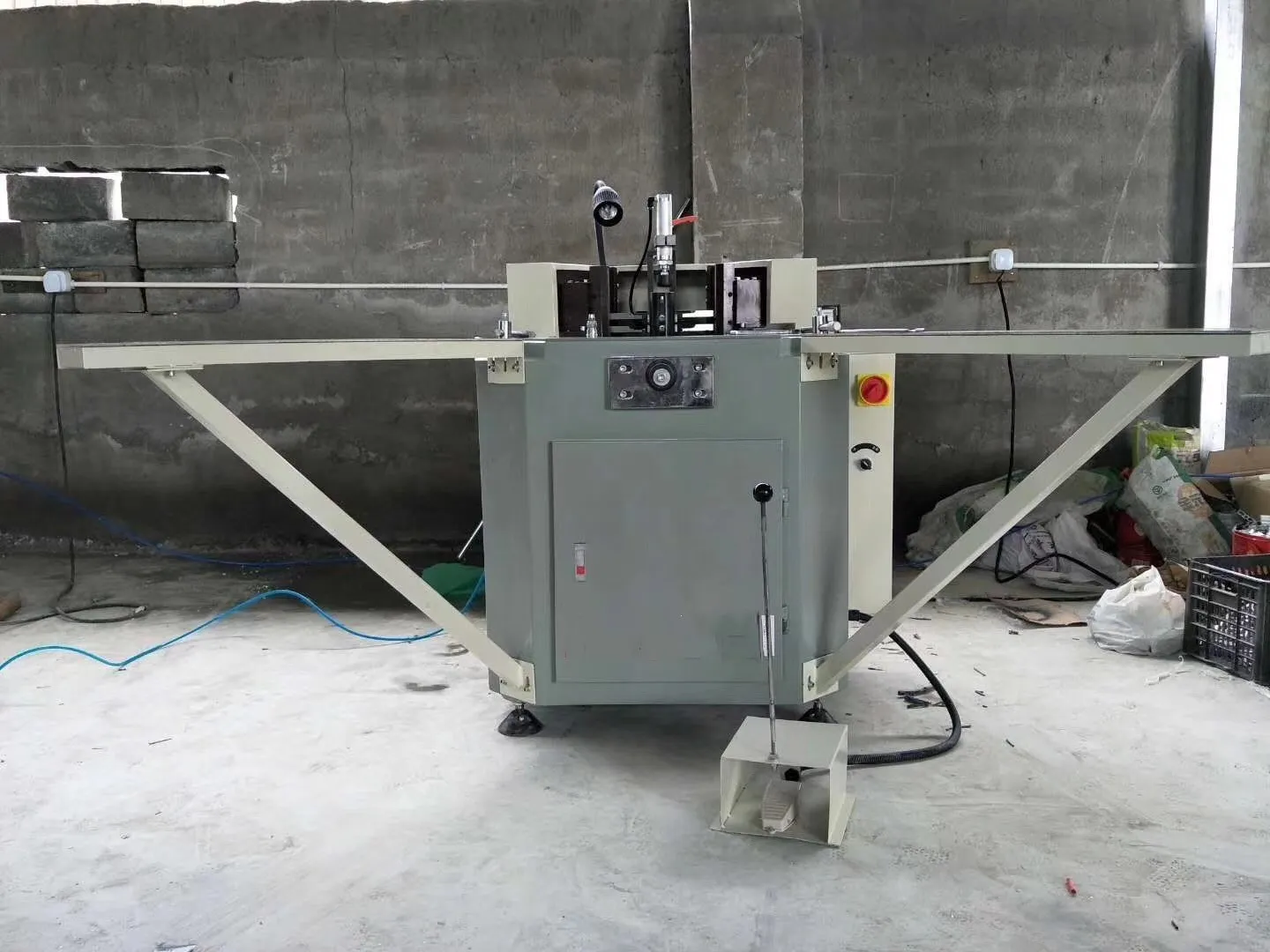

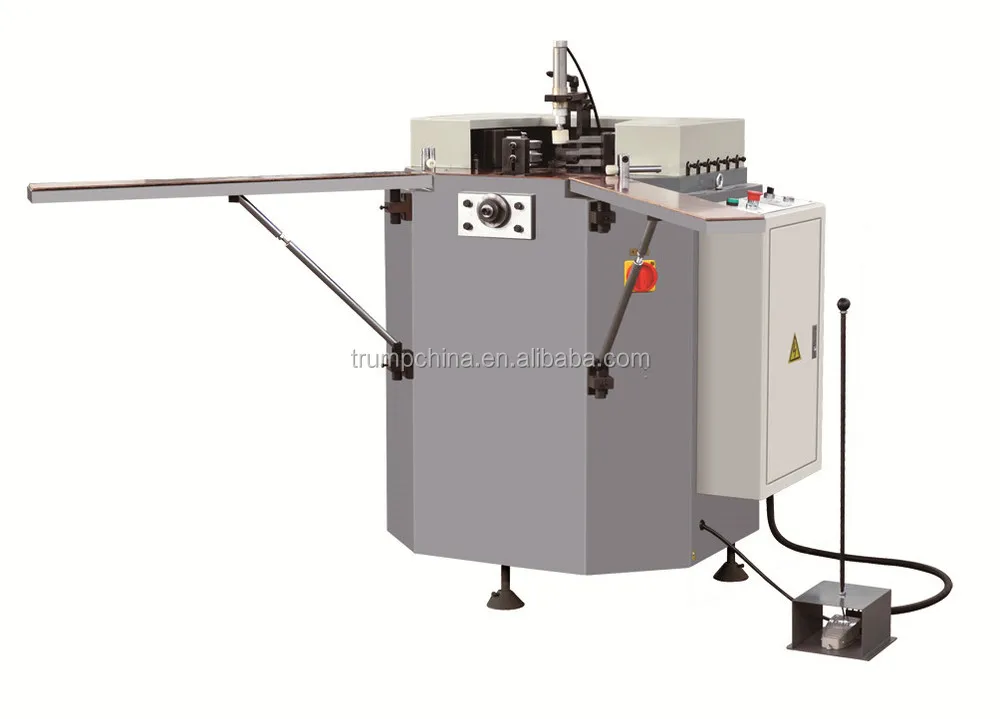

Hot selling window and door used aluminum crimping machine

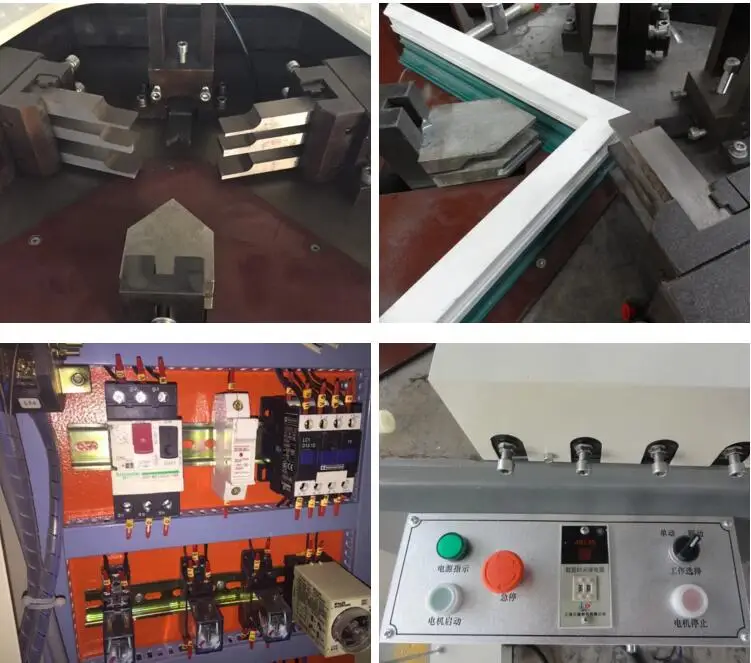

Feature:
1.The frame is special jointed by steel with high quality and then does special process.
2.Synchronous feeding of the level(left and right side) pushing knives by link with one hydraulic cylinder driving, which aviod the corner deform and enchance the corner connection efficiently.
3.Synchro feeding structure make the adjustment very easy.
4.Convenient operation and less error in processing.
5.Distance of tool knife adjustable,as the screw thread connection,easy working for tools.
Technical parameter:
Brand | TRUEPRO |
Model | CLMB-150 |
Power Supply | 380V/50HZ |
Input Power | 2.2KW |
Air Pressure | 0.6~0.8MPa |
Motor Rotational Speed | 1400r/min |
Profile processing height | (Max)120 |
General pressure of corner combining | 48KN |
The adjustable range of the main location block | 70mm |
Air consumption | 20L/min |
Capability of oil box | 20L |
Corner crimping casing movement journey | 85mm |
Profile width | 90mm |
Connection seam error | ≤0.15mm |
Overall Dimension | 1300*1200*1200mm |
Weight | About 400Kg |
Ralated machines:

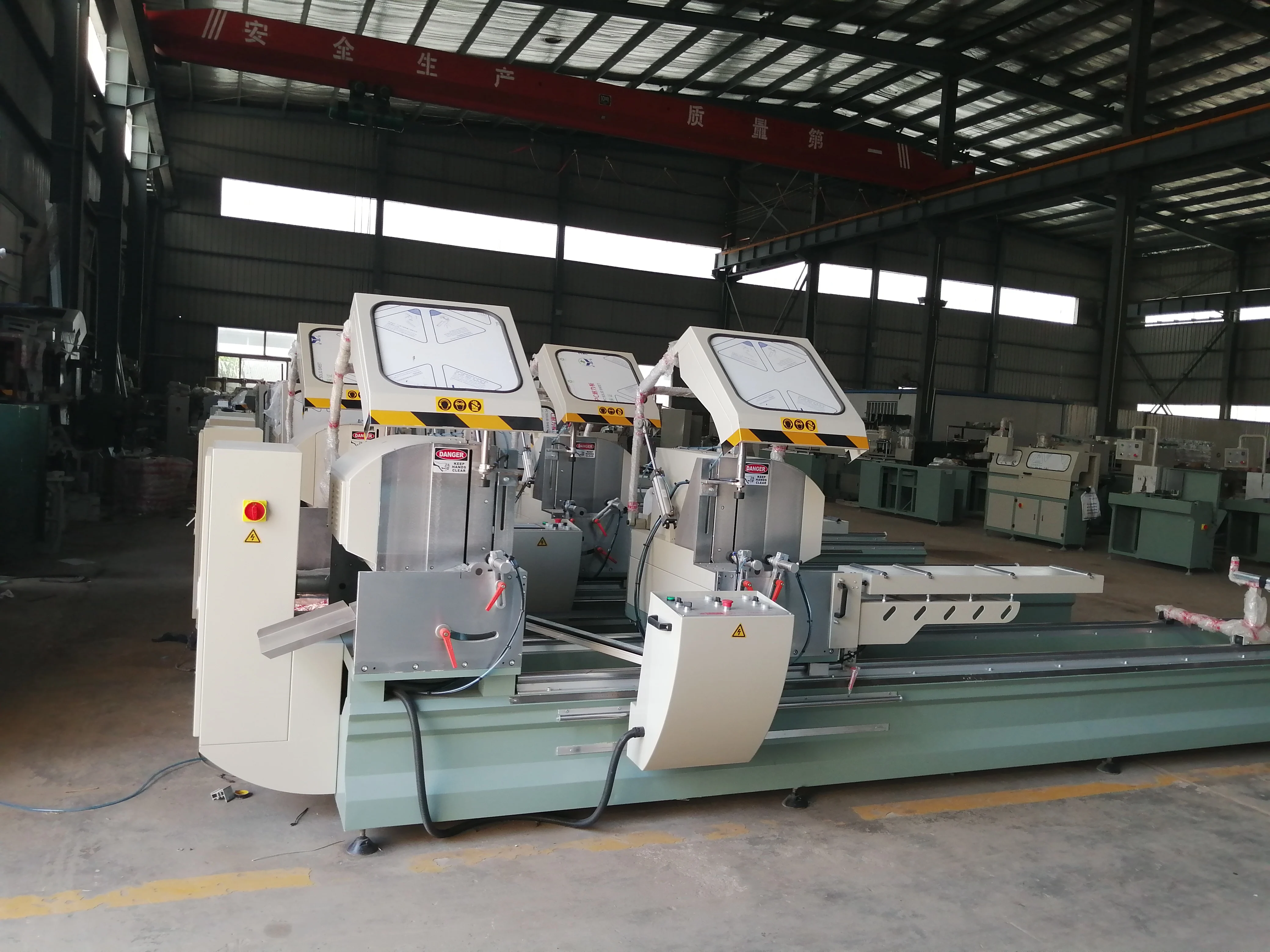

Double head cutting saw

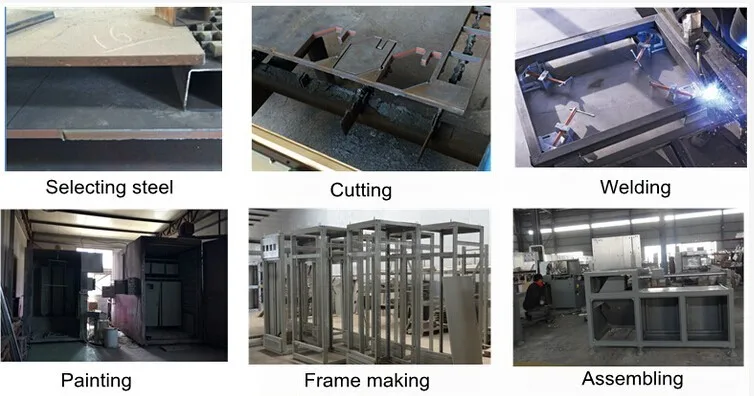

We work with everything from raw material to final machine, could guarantee machine quality from each step. select each part carefully, we are strive to quality first when machine production and test each machine before delivery.
We will provide the best machine for you.
Before payment
Free contact for the most suitable machine
Free professional design for each customer especially.
After sale service
24 hours technical support by phone, email or skype (email or skype) .
1years warranty period
Our senior engineer is available to travel aboard, help the installation, maintenance and training staff.
By offering this support, we make sure the cutomer start the business smoothly, to realise win-win cooperation.
Payment
♦ L/C, 30% deposit by T/T,70% spare payment L/C.
♦ T/T, 30% deposit by T/T,70% spare payment before shipment.
♦ Western Union or Paypal.
Jinan Truepro is a manufacturer of window machine, insulating glass processing machine and curtain wall machine with well-equipped testing equipment and strong technical force. With a wide range, good quality, reasonable prices and stylish designs, our products are extensively used in building trade and other industries. Hope we can cooperate with you.
We believe that "IT'S THE BEST THAT FITS MOST."
Every machine could be customized to meet your special requirement.
1. When can we arrange shippment?
We usually arrange shippment within 15 days after getting deopsit,
but customized machines should be more than 25 days.
2.What you can do if my machines have problems?
1) We can send you free components to you if your machines are in guarantee time.
2) We can send our engineers to repair your machines
3.If I make Aluminum window and door, how many basic machines do i need?
1) Double head cutting saw
2) Lock hole copy milling machine
3) End milling machine
4) Automatic Corner connector automatic cutting saw
5) Single head Corner combining machine
Kindly note:
These five basic machines just can be enough for a 20 foot container,if you want to know the freight charge, you can tell me your destination port name, then I can tell you the freight charge.
-
