Single package size: | 43X26X10 cm; | Model Number: | BS-B10-BA; |
IP Degree: | 67; | Place of Origin: | China; |
RFID: | Yes; | Package Type: | carton box; |
Brand Name: | Besen; | Cable Length: | 20 feet ( 6m ); |
Package Preview: | https://sc02.alicdn.com/kf/HTB1c5j3If1TBuNjy0Fjq6yjyXXa9.jpg_640x640.jpg; | Color: | black/white/orange or customized; |
Application: | AC Home Charging; | Selling Units: | Single item; |
Mode: | A; | Certificate: | CE, TUV; |
Product name: | EV Charging Station (WallBox); | Single gross weight: | 5 KG; |
Power: | 3.6/7.2/11/22kw; | Weight: | 5kg; |

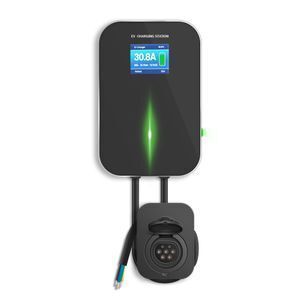

16/32A LCD EV Charging Station
Model | BS-B10 |
Mode | A |
Certificate | TUV, CE |
Current | 16A/32A single phase/three phase |
Power | 3.6/7.2/11/22kw |
Size | 295mm*195mm*70mm |
Weight | 6kg |
Rated supply voltage | 220VAC |
Rated operating frequency | 50Hz/60Hz |
Charging control pattern | Auto/Button/Key/Card |
Protection level | IP67 |
Key features
-High compatibility
It can charge all EVs manufactured in Europe and USA, correctly and effectively.

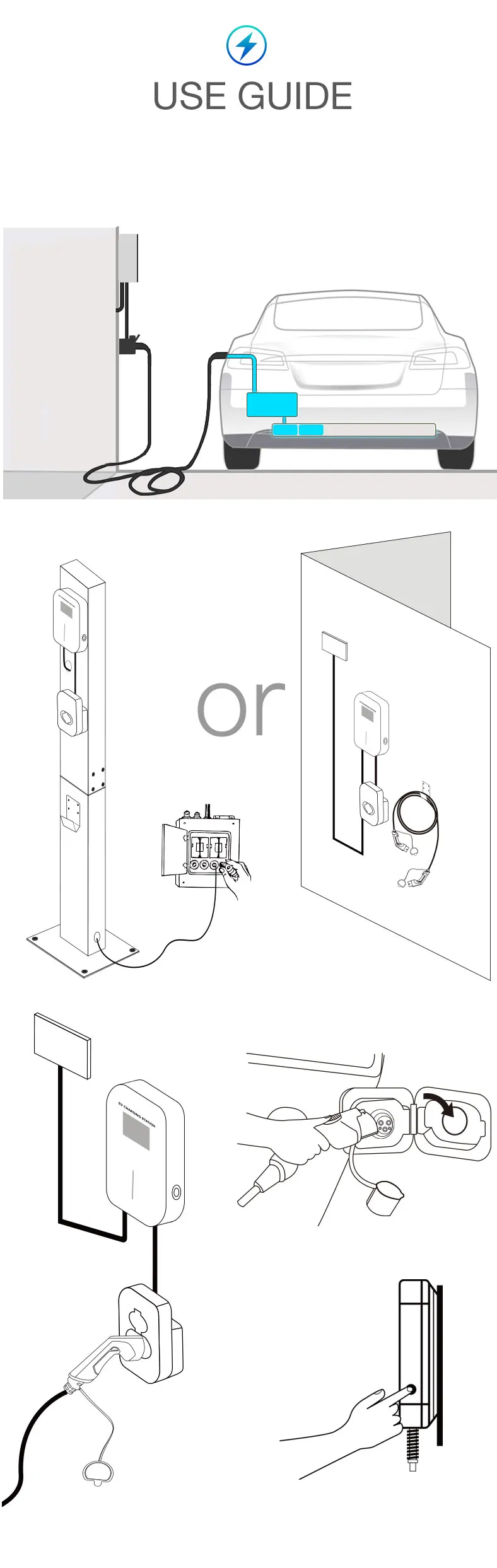

-Easy to install
Products are sent to you with associated installation tools. You are able to install the charger indoor or outdoor. Firmly locking the charger on the installation backplane can prevent theft.
-Small size
This product is small and exquisite, and thus it is very easy to transport, store and install.
-Containing the intelligent chip
It can automatically repair minor charging problems while charging. When a fault occurs, the lights will blink in different ways to indicate different problems.

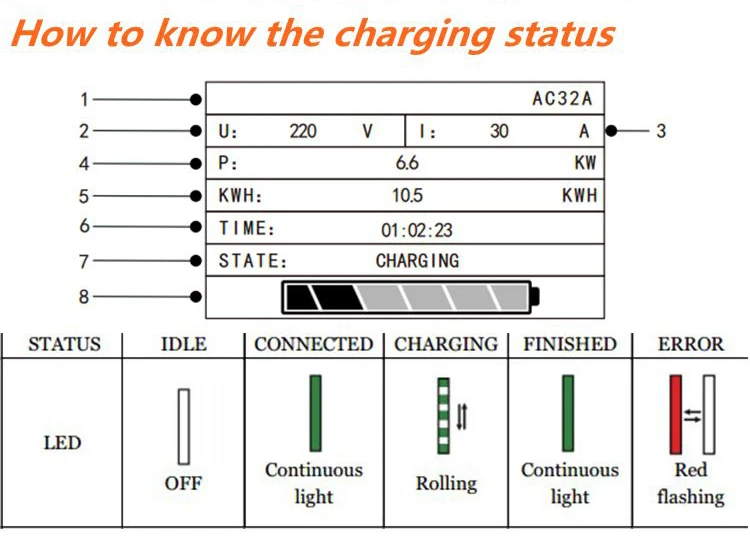

-LED Display
shows charging status via screen
Good to know
-Persons who install and use charging poles must observe the principles and regulations to ensure the personal safety and equipment safety of the personnel concerned.
-Before powering on the device, please confirm that the device is properly grounded to avoid unnecessary accidents
-All tools used do not need exposed metal parts should be insulated to prevent exposed metal parts from touching the metal frame, causing a short circuit.
-Do not modify, retrofit, or change any part by yourself under any circumstances.
-Ensure the service life and operation of the charging pile are stable, and the environment for use of the equipment should be kept as clean, constant temperature and humidity as possible. The charging pile must not be used in the presence of volatile gas or flammable atmosphere.
-Be sure to confirm that the input voltage, frequency, circuit breakers and other conditions of the device have already met the specifications before the device is powered on.

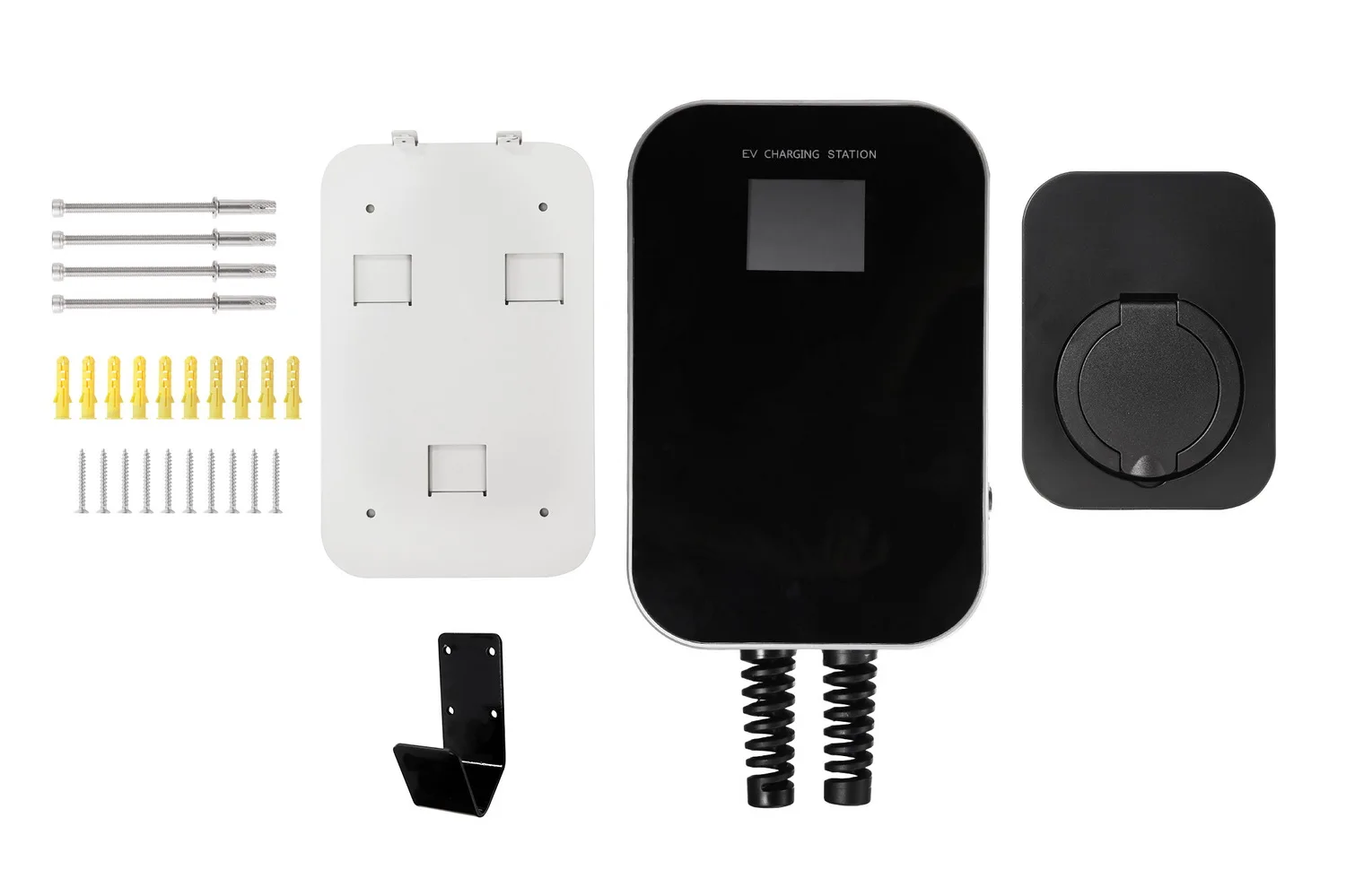

Package including
Charging equipment assembly × 1
Wall mounting plate × 1
Fixed pegboard bolts and screws × 4
Contactless IC card (Optional) × 2
Instruction × 1
Charging station installation board × 1
Backplane locking screw × 2
Details Images
We have abundant experience of EV charging products. Our products have been successfully applied in most of countries all over the world. From cold Norway to hot Saudi Arabia, you can see form of our products. We provide the most professional products and the best quality service to each of our customers.
We pay more attention to handle the detailed part of our products, hope to provide with our customers’ safety, difficult to damage and convenient operation in use.

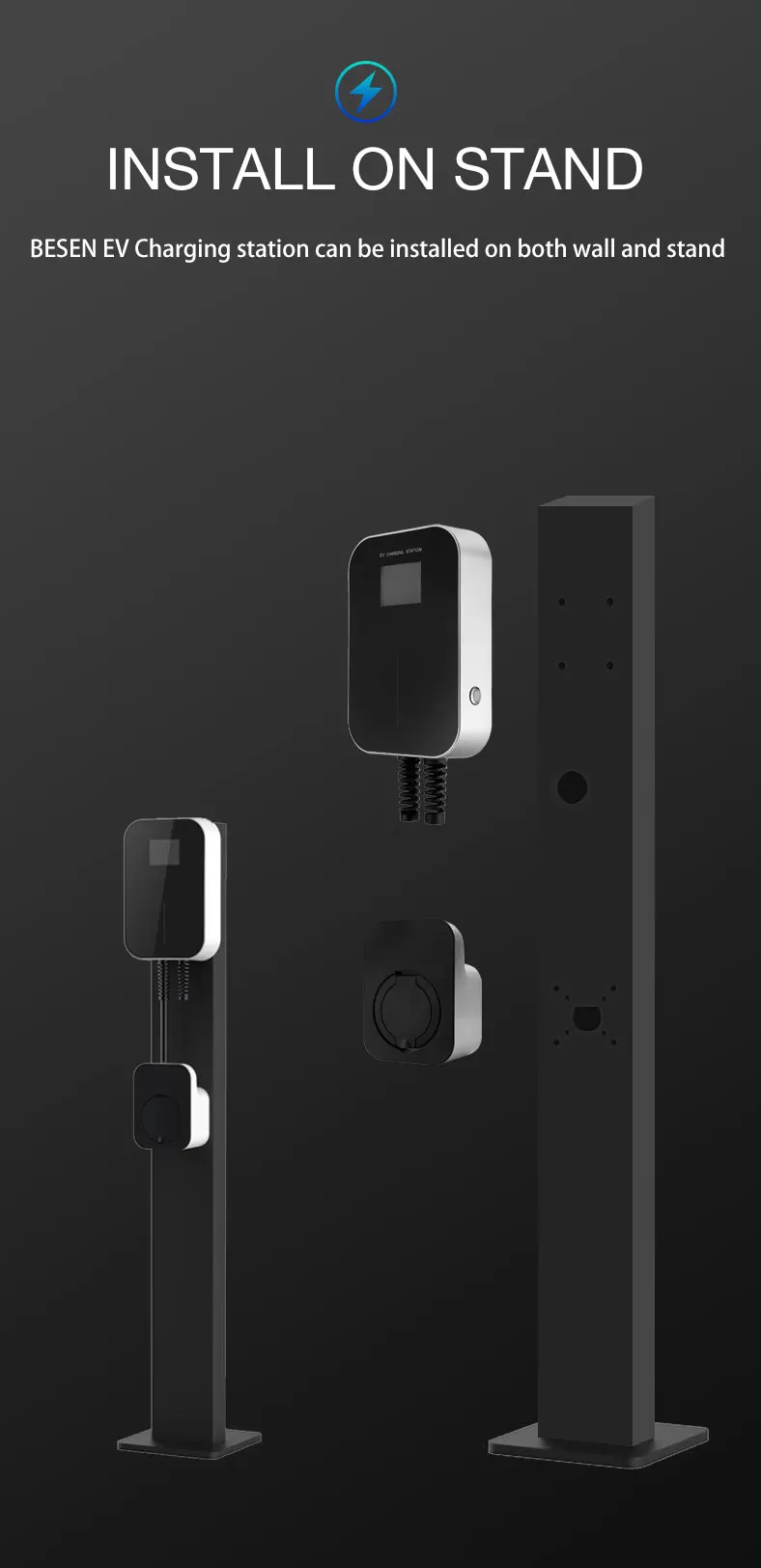

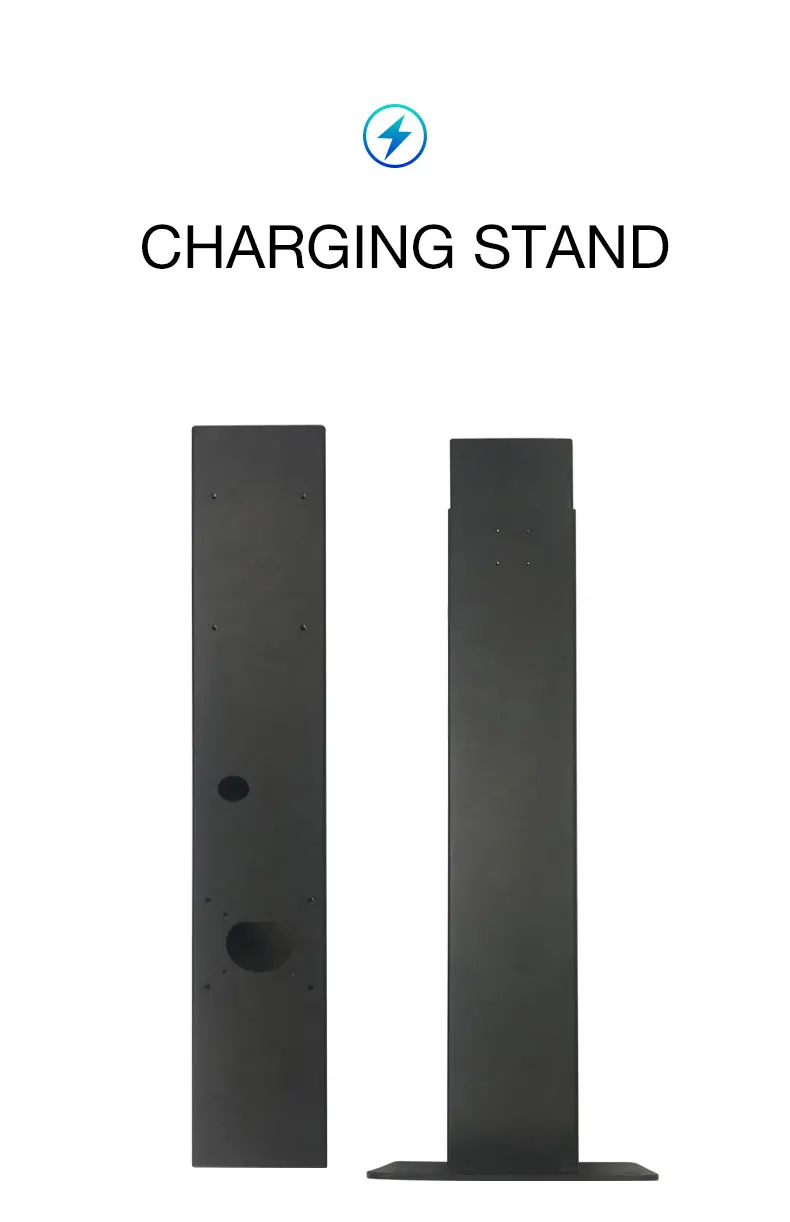

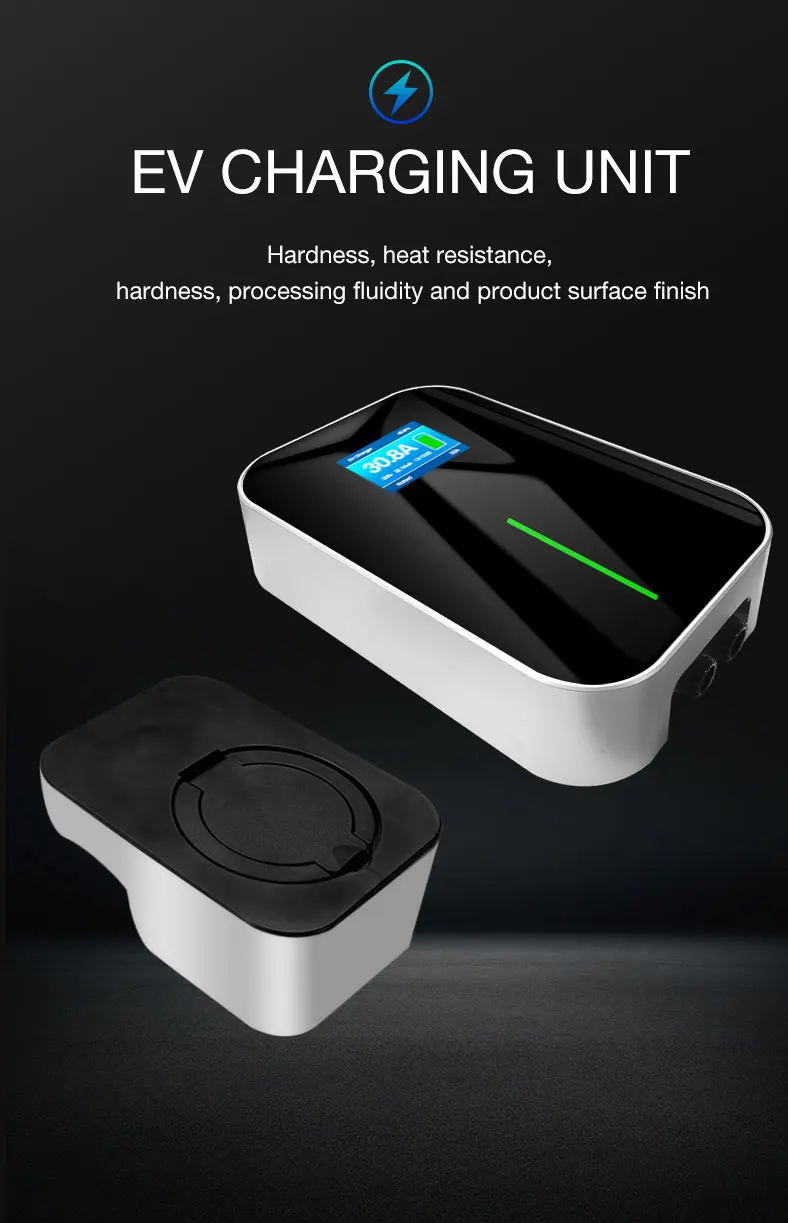

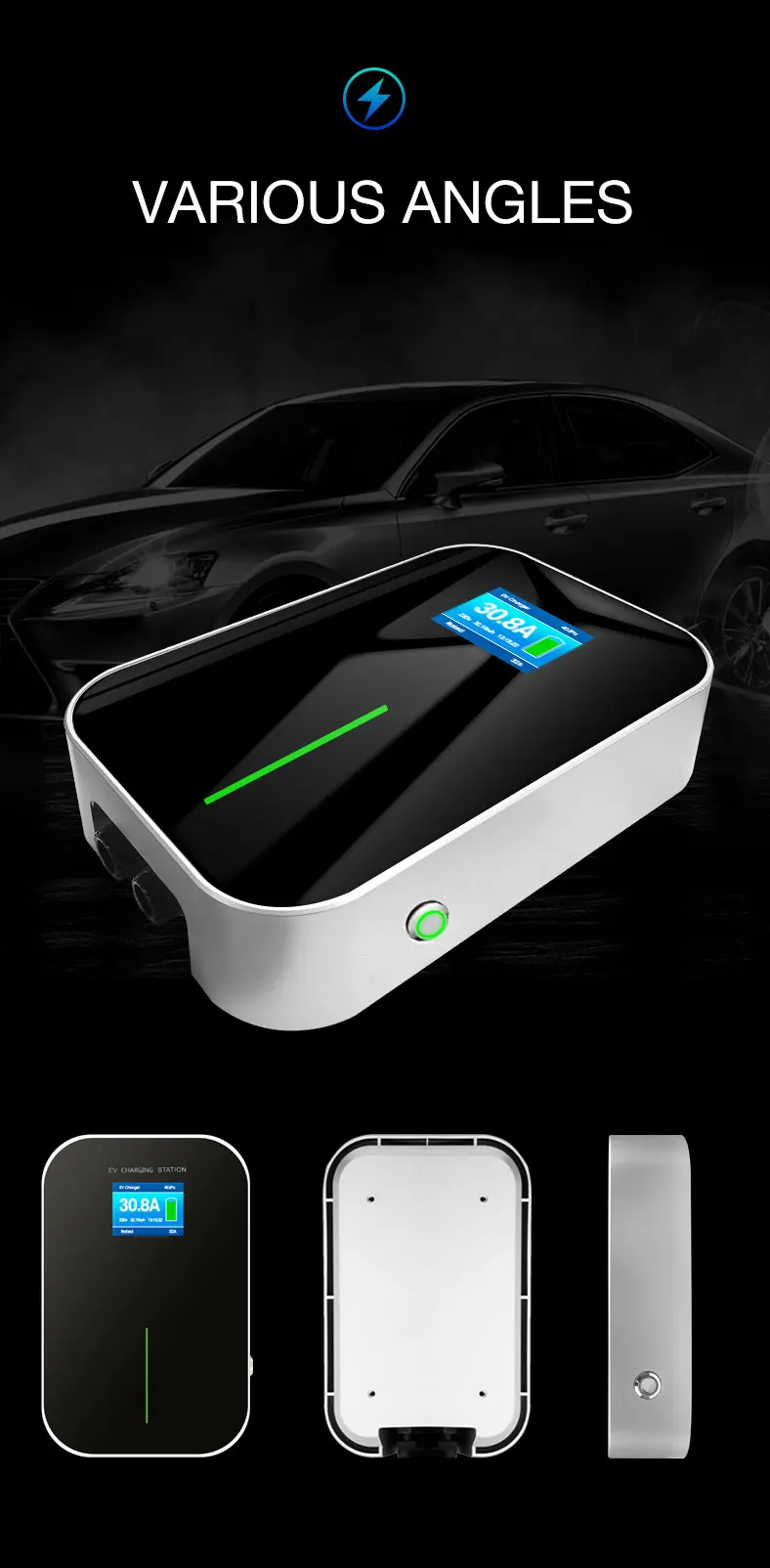

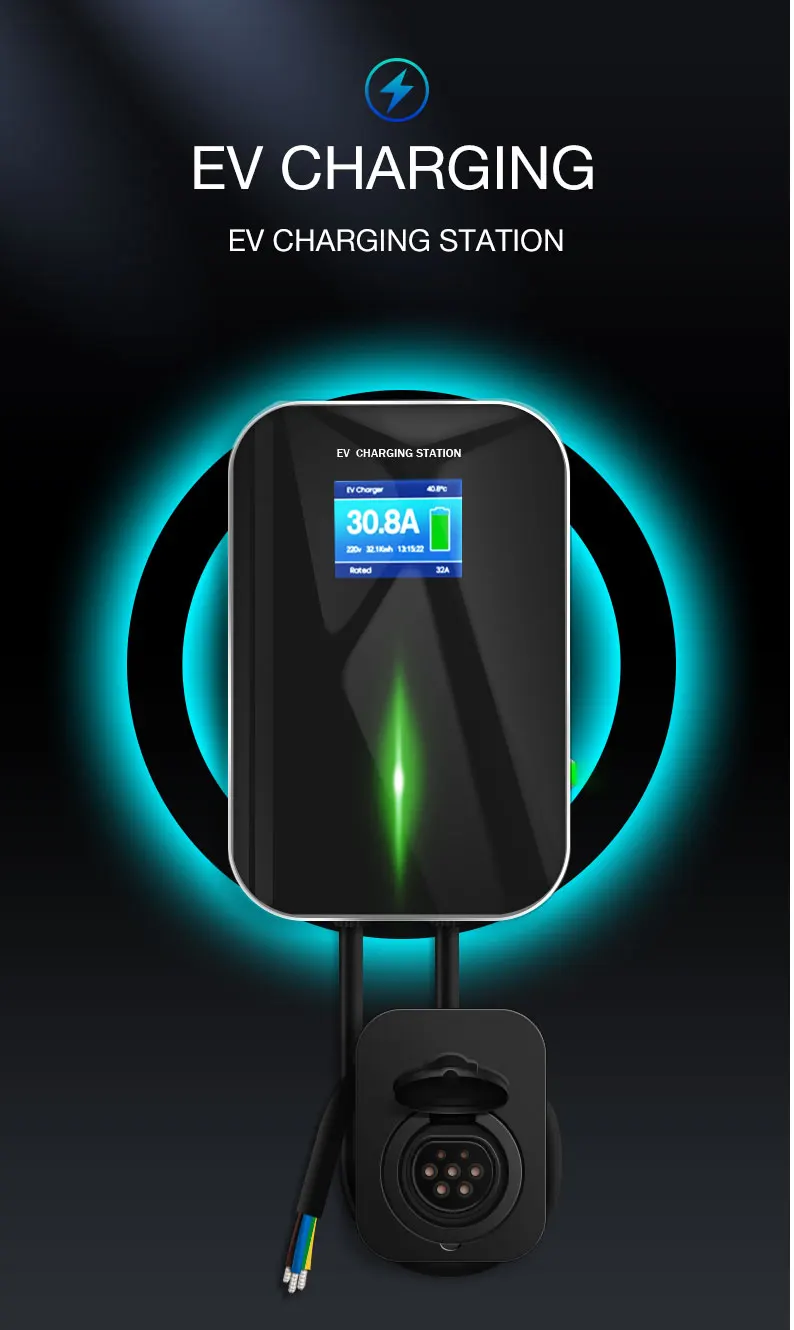

Here are some detailed pics about our BS-B10 ev charging station:
