blade material: | cast iron; | Type: | Other; |
Certification: | ISO9001; | model: | TIP-200S; |
duct fan: | ventilating fan; | color: | ivory; |
Brand Name: | ROBOTECH; | Blade Material: | Cast Iron; |
Packaging Detail: | Robotech Standards; | Mounting: | Duct Fan; |
Type: | Other; | Warranty: | 1 Year; |
weight: | 6.5kg; | Place of Origin: | Gyeonggi-do South Korea; |
After-sales Service Provided: | Free spare parts; | Payment Terms: | L/C,T/T; |
Certification: | GS; | Voltage: | 110v/220v/380v; |
We, Robotech are one of the professional fan companies in the field of industrial and domestic fans including variety of motors based south Korea. All products have supplied to the worldwide with superior technology and good service.
Features
- Tremendous air volume extraction.
- Low noise and lightweight due to aluminum die-casting blades.
- Easy to connect to ducts.
- Suitable for small space, but supplies a lot of air.
- Elegant design.
Applications
- Tight work areas (Welding, manhole, construction site, etc.)
- To cool and dry equipment.
- Big advertising balloon parties.
- Crowded market areas.
- Underground construction sites

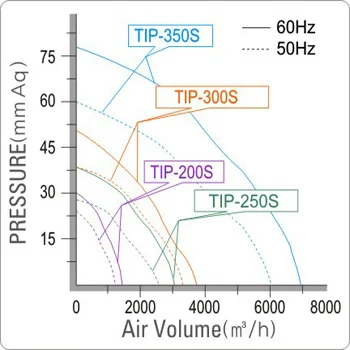

Performance Curve
Performance Data
Model | Impeller size (mm) | Phase.Volt | Poles | Current | Air Volume | Static Pressure | Rated Speed | Weight |
TIP-200S | Φ 170 | 1/220/60 | 2 | 190 | 1,440 | 30 | 61 | 6.5 |
1/220/50 | 140 | 1,250 | 23 | |||||
TIP-250S | Φ 230 | 1/220/60 | 2 | 310 | 3,060 | 38 | 65 | 7.6 |
1/220/50 | 230 | 2,660 | 29 | |||||
TIP-300S | Φ 270 | 1/220/60 | 2 | 440 | 3,780 | 50 | 67 | 11 |
1/220/50 | 325 | 3,280 | 38 | |||||
TIP-350S | Φ 320 | 1/220/60 | 2 | 890 | 6,900 | 80 | 70 | 18 |
1/220/50 | 658 | 6,010 | 60 |
