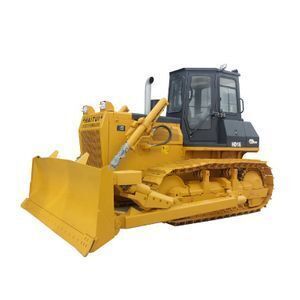

Chinese crawler bulldozer HD16 160hp standard type crawler dozer

Supplier: Shandong Haitui Heavy Industry Machinery Co., Ltd.
Region: Shandong, China
Contact: Mr Haitui Official
Price: $63000.00 /set
Min. Order: 1 set

Click here to contact

Product details

Gronud pressure:	0.067 Mpa;	After-sales Service Provided:	Field maintenance and repair service,Video technical support,Online support,Free spare parts;
Machine Weight:	17000kg;	Condition:	New;
Blade dimension WxH:	3390x1150mm;	Hydraulic Pump Brand:	Weichai;
Hydraulic Valve Brand:	Weichai;	Hydraulic Cylinder Brand:	TongYang;
Applicable Industries:	Construction works ;	Track Shoe width(mm):	510mm;
Dimension(Long * Breadth * High):	5140x3388x3032mm;	Place of Origin:	Shandong China;
Moving Type:	Crawler Bulldozer;	Rated power:	131/1850kw/rpm;
Reverse(km/h):	4.28/7.59/12.83;	Payment Terms:	L/C,T/T;
Min.ground clearance:	405mm;	Blade max.tilt adjustment(mm:	860mm;
Brand Name:	HAITUI;	Blade max.digging clearance:	540mm;
Supply Ability:	30 Set/Sets per Month;	Warranty:	1 Year;
Forward(km/h):	3.29/5.82/9.63;	Engine Brand:	Weichai;
Packaging Detail:	RORO;	Engine:	WD10G178E25;
UNIQUE SELLING POINT:	High operating efficiency;	Port:	Qingdao,Shanghai,Tianjin port;

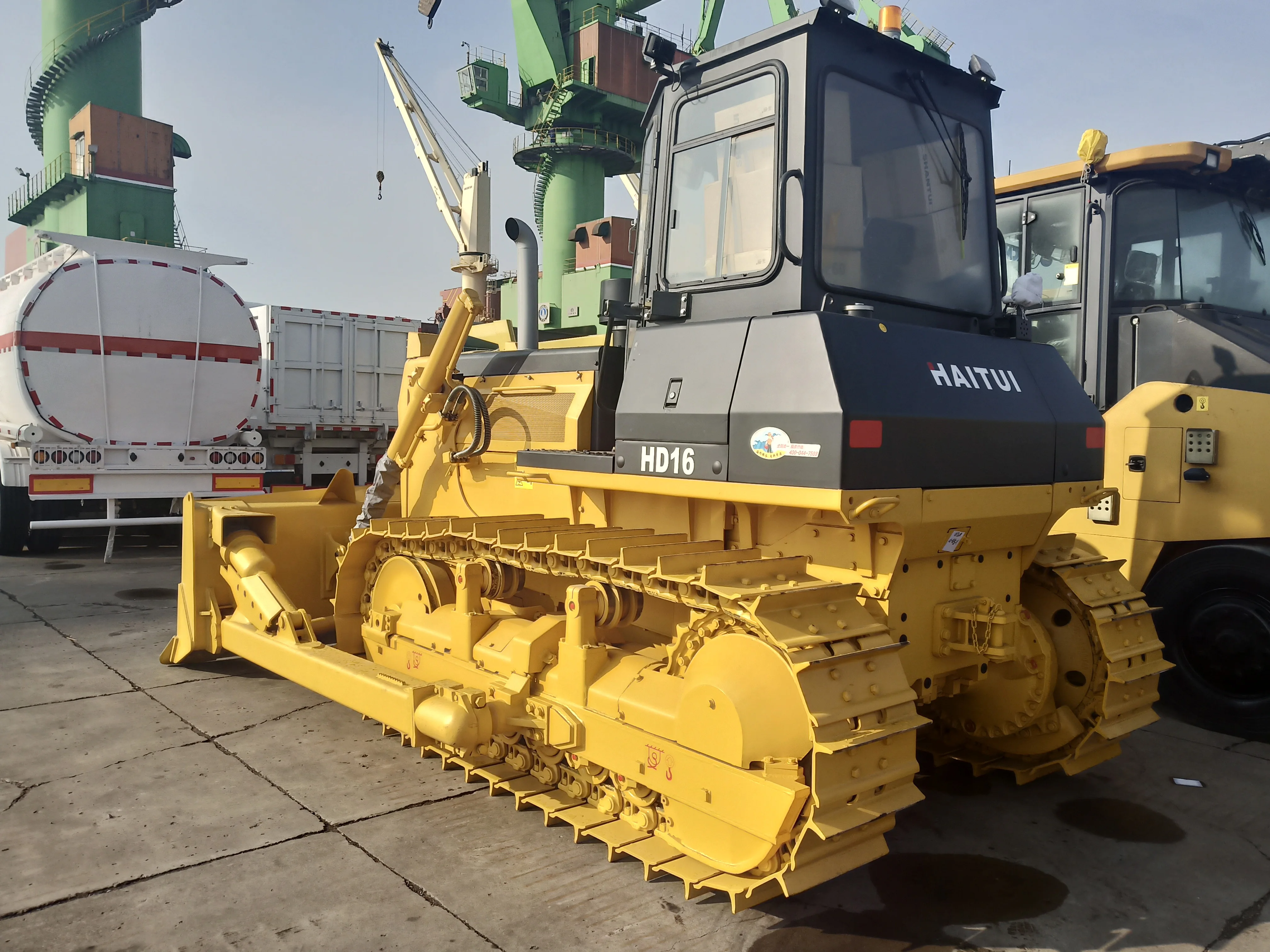

Chinese crawler bulldozer HD16 160hp standard type crawler dozer

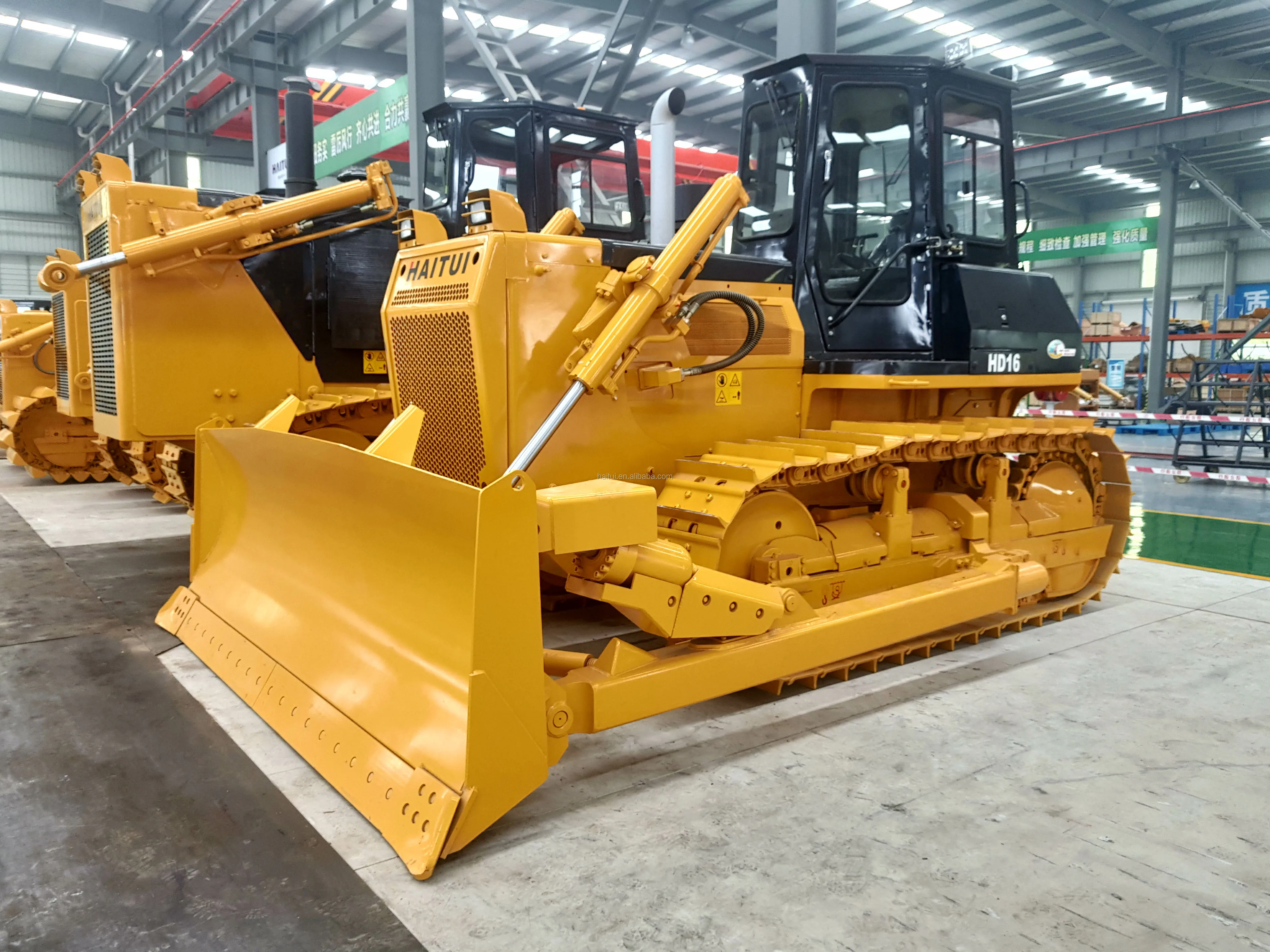

HD16 bulldozer is a standard type medium size dozer equivalent to CAT D6N dozer or SHANTUI SD16 bulldozer.It can be machanical or hydraulic transmission.With multiple working devices and cabins,HD16 bulldozer can meet the operation demands for diversified working conditions,like swamp,forest logging,sanitation,coal mining etc.It is an ideal high-efficiency machine for earth-moving operations and bulk material handling.

Product Description

Main Parameters of 160hp Crawler Bulldozer

Model	HD16
Operating weight(Kg)	17000
Engine model	Weichai WD10G178E25
Rated power(kw/rpm)	131/1850
Displacement(L)	9.726
Dimension(no ripper)(mm)	5140×3388×3032
Ground pressure(MPa)	0.067
Track shoe width(mm)	510(560,610)
Track gauge(mm)	1880
Dozing capacity( m³)	4.55
Blade width(mm)	3390
Blade height(mm)	1150

Main Features

1,A Weichai WD10G178E25 engine with 131KW rated power gives you the power and reliability you need. Improved fuel economy over the previous model with strong torque output and low fuel consumption gives you excellent overall fluid efficiency.

2,The planetary power shift transmission with forced lubrication and the hydraulically assisted steering system achieve light operations of the machine and feature high transmission power and high productivity.

3,The high quality undercarriage parts like rollers and tracks guarantee the stable and great performance and long service life of the dozer.

4,Roomier cab with a wider entry offers added comforts like a adjustable seat, manually adjustable armrests, larger cup holder and auxiliary power port. Smoother shifting and a quieter

Products Details

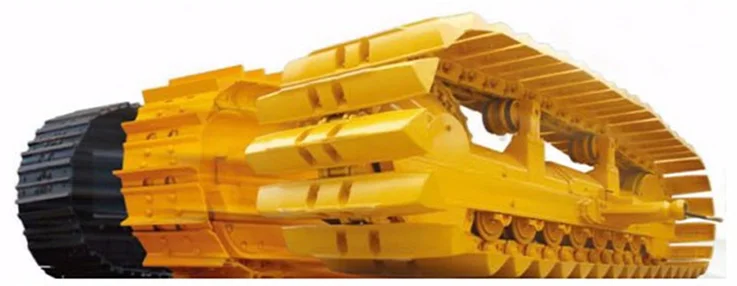

1,Quality undercarriage parts including rollers,tracks and chains ensures the stable and good performance of the dozer.Different types of the tracks can meet different working condition,like dryland,wetland and rock conditions.

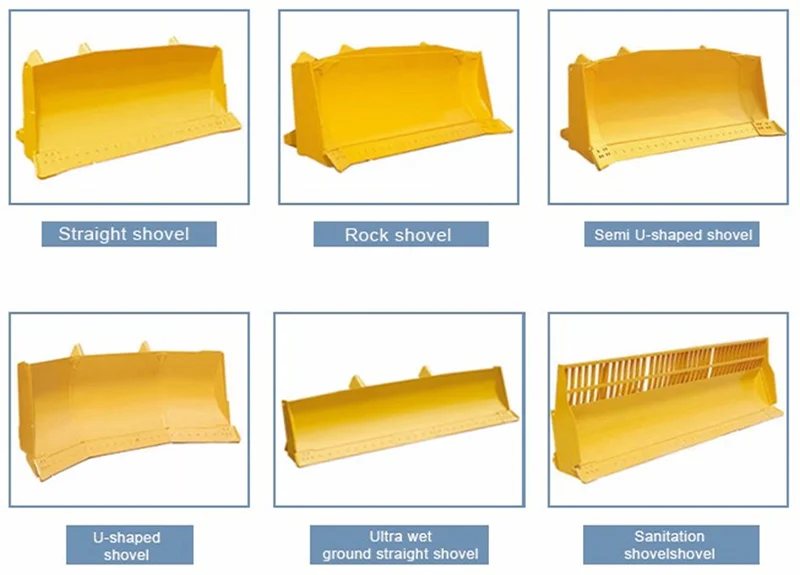

2,The standard straight tilt blade features powerful cutting force and variety of shovels can be optional,like rock shovel,U-shaped shovel,semi-U shaped shovel,sanitation shovel etc.

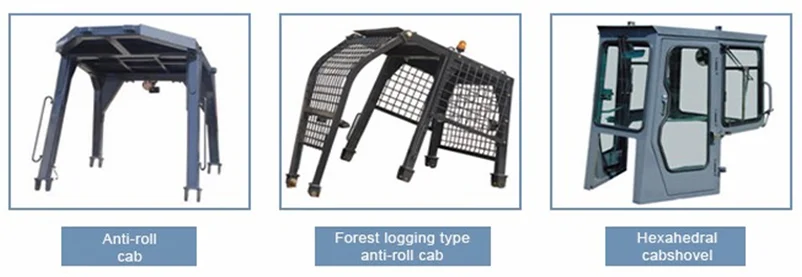

3,The hexahedral cabin for standard type dozer and different types of cabins can be equipped,like ROPS cabin,forest logging anti-roll cabin etc.

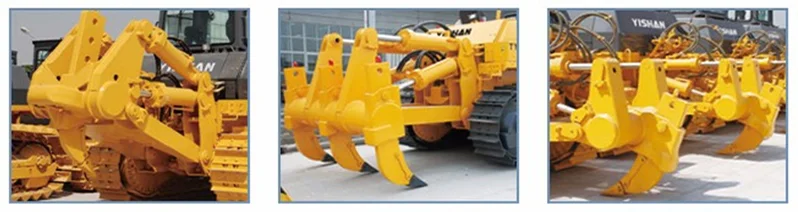

4,Variety devices can be equipped with HD16 crawler bulldozer,like three tooth ripper,winch.

Products Application

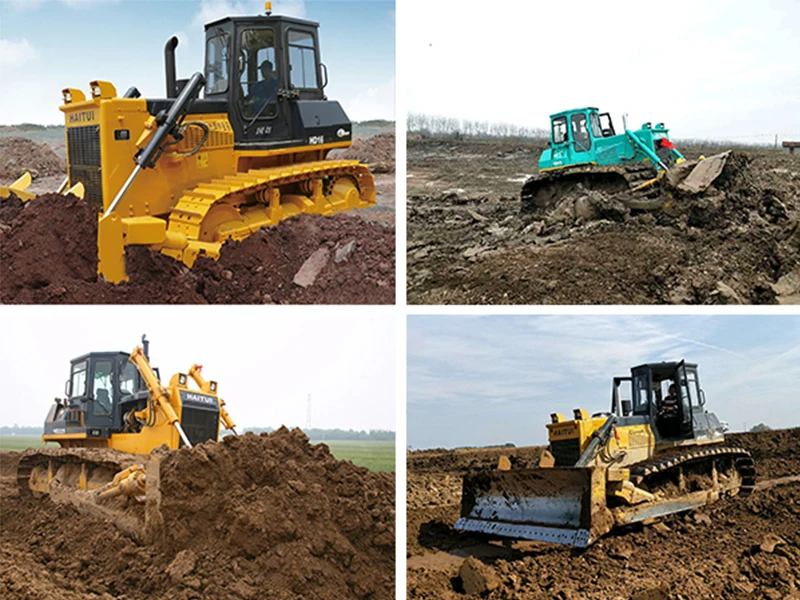

HD16 bulldozer is a multifunctional earthmoving machinery and it widely used at construction projects,environment sanitation treatment,road construction,landfill,forest logging etc.

Packing and Transportation

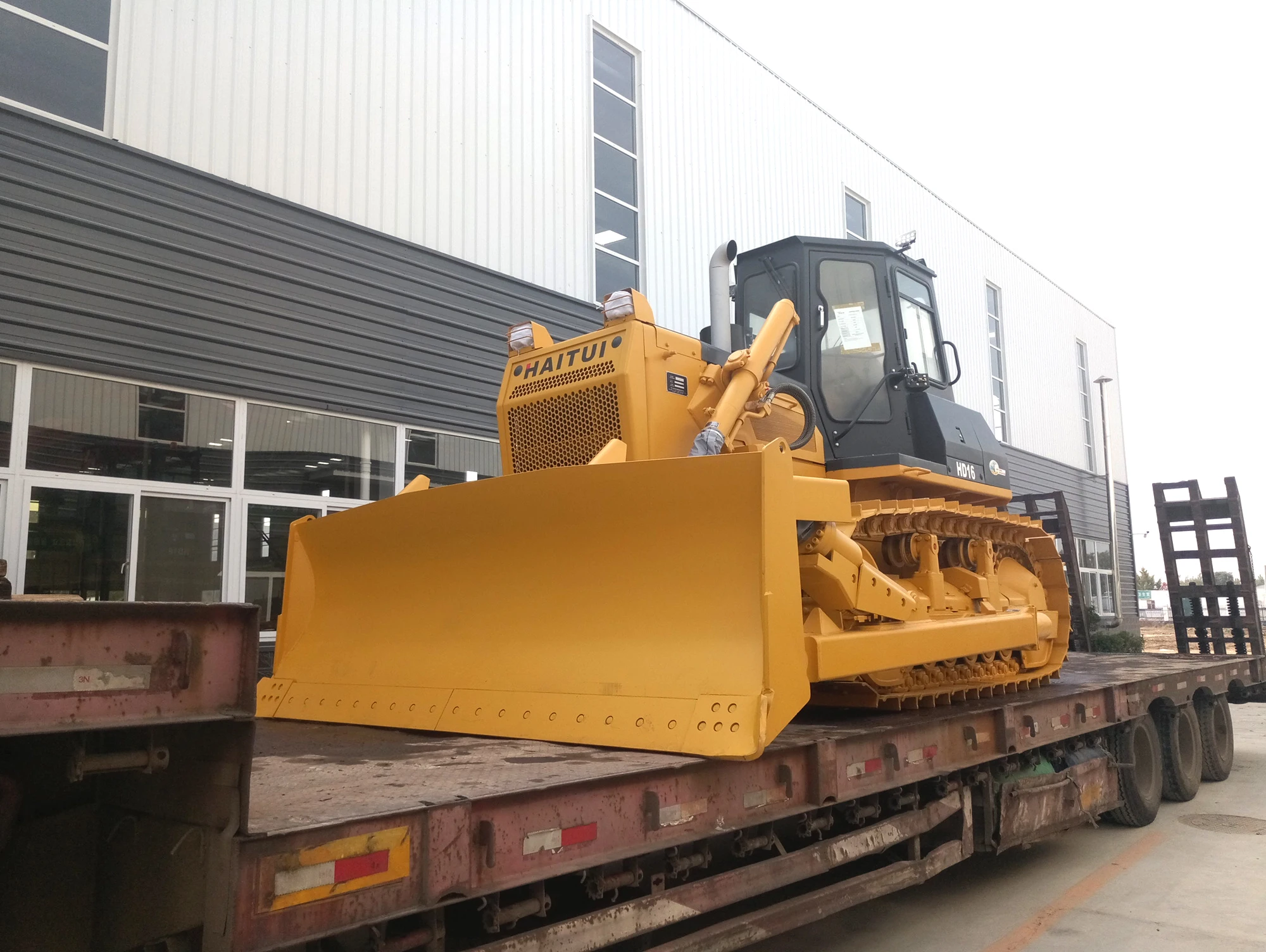

The HD16 crawler dozer loaded and transported by a flat truck and will be shipped by RO-RO by sea.Before loaded,the whole machine will be coated with a layer of wax to prevent rust as customer's request.

FAQ

Q1. Are you a manufacturer or trader?
A: We are a manufacturer of construction machines which specilized in producing and exporting bulldozers and loaders.Meanwhile we also can supply the related heavy construction machinery as a trader.

Q2. What is your terms of payment?
A: T/T 30% as deposit in advance, and 70% will be paid against copy of B/L.

Q3. How about your delivery time?
A: Generally, it will takes 25 working days after deposite payment. The specific delivery time depends on the items and the quantity of your order. Sometimes we have some stock.

Q4. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery

Q5. What is your warranty policy?
A: We can supply one year or 2000h warranty for our machines and parts for free within warranty.

About Company

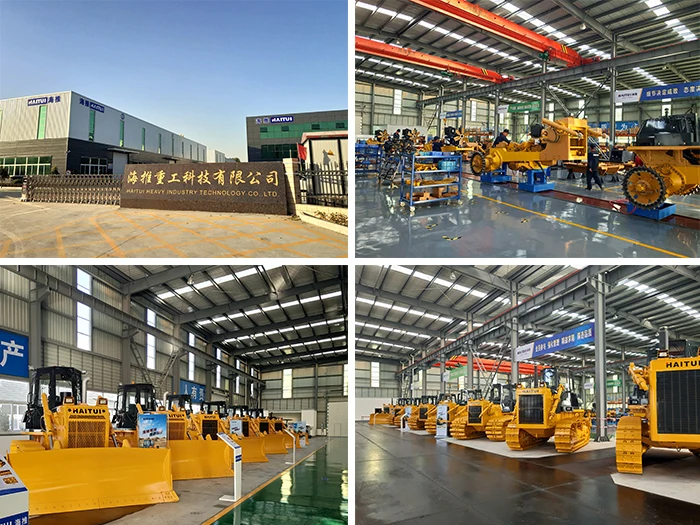

After a year construction,the new plant of Haitui bulldozer was officially put into operation on 20th September,2018.It covers around 40000 square meters and have more than 100 workers.The new plant composed by spare parts area,assemble workshop,testing area and office building.The annual production capacity can reach 2000 units crawler bulldozers to meet the demand of domestic and internation market.
