Polypropylene Multi Filament Yarn Manufacturing Spin-Draw Machine Taesin

Supplier: HealthGuard Corporation Pty Ltd
Region: Victoria, Australia
Contact: Victoria Harvey
Price: $80000.00 /unit
Min. Order: 1 unit

Click here to contact

Product details

Production Capacity:	Capacity 150 to 600 Denier;	Brand Name:	Taesin Co.,LTD.;
Year:	2007;	Material:	Polypropylene;
Spinning Method:	Rotor Spinning;	Automatic:	Needs operator initially;
COLOR OF YARN:	Optional Colour Injection;	Packaging Detail:	Buyer to organise disassembling or can be organised by seller at buyers expense (Quote at time of enquiry).;
Place of Origin:	Daegu South Korea;	After-sales Service Provided:	Overseas service center available;
Payment Terms:	T/T,Western Union;	Power(W):	440V, 380V, 415V AND 50HZ, 60HZ;
Type:	Multi Filament Spin-Draw;	Delivery Detail:	ASAP;
Certification:	Non;	Condition:	Used;
MODEL:	HS-300-8SP;	Application:	yarn machine;
Parts included:	Spare Spinerettes for differing Yarn types;	Weight:	TBA;
Dimension(LWH):	9.6m x 4.4m x 5.5m;	Port:	Melb;

Product Description

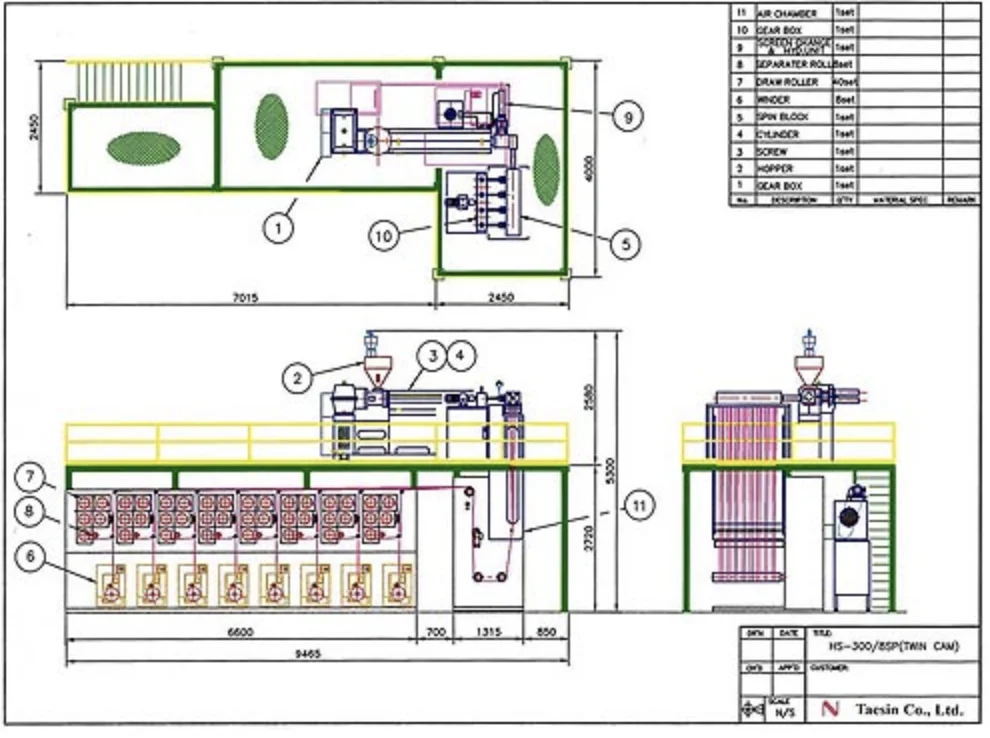

Taesin Spinning Line

We have available for immediate sale the following Polypropylene Multi Filament Spin-Draw Fiber Manufacturing Line, subject to prior sale and availability

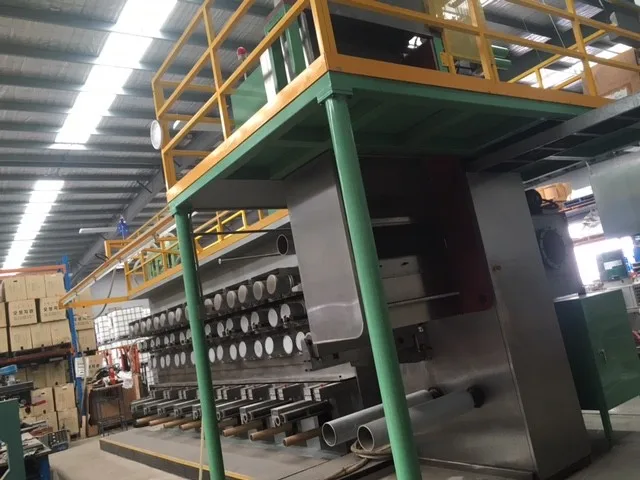

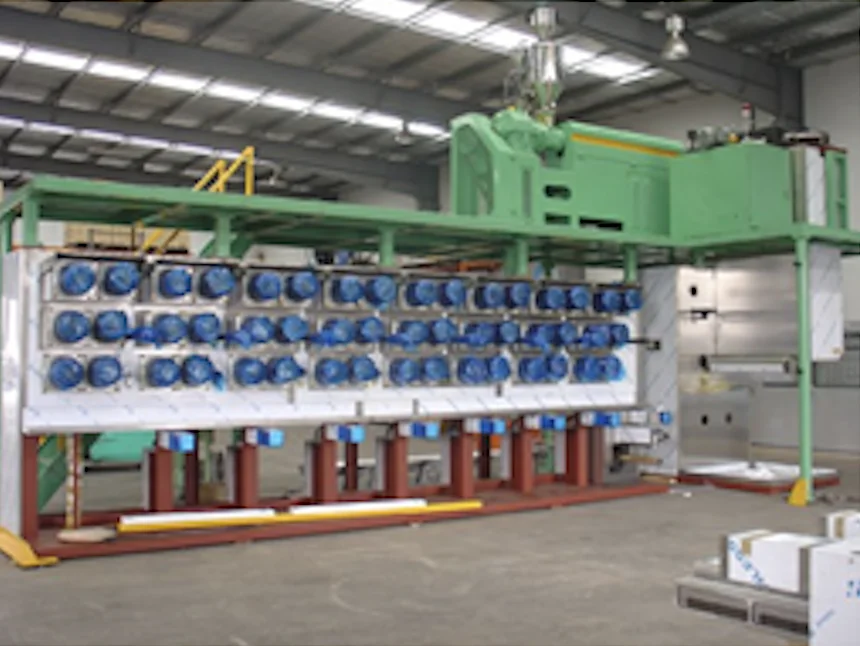

1 Complete Free Standing & Compact Taesin Spinning Line
For the production of Multi Filament, FDY (Fully Drawn), Air Textured
Polypropylene Yarns
Year of Manufacture 2007
Manufactured by Taesin of South Korea
Technology By Taesin Co. Ltd
Used only for the manufacture of yarn samples - Like New
Multi Filament Polypropylene Yarn Production
36 to 72 filaments per thread line
With Multi Roll Hot Godet Draw Rolls and Air Texturing on each end
16 Thread Lines
8 winders
2 Cops per winder
Capacity 150 to 600 Denier
3 Tons per day at 150 Denier
6 tons per day at 300 Denier
12 tons per day at 600 Denier

Comprising of

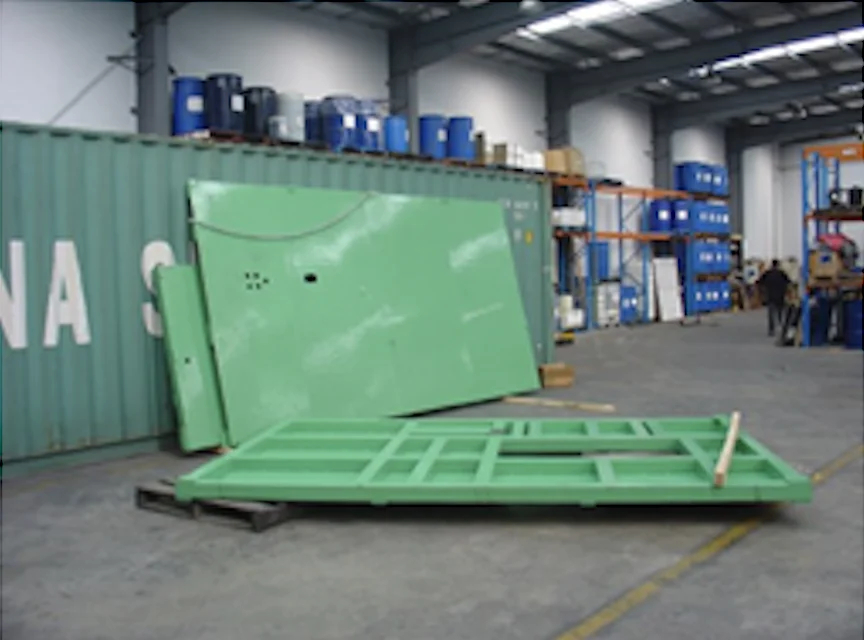

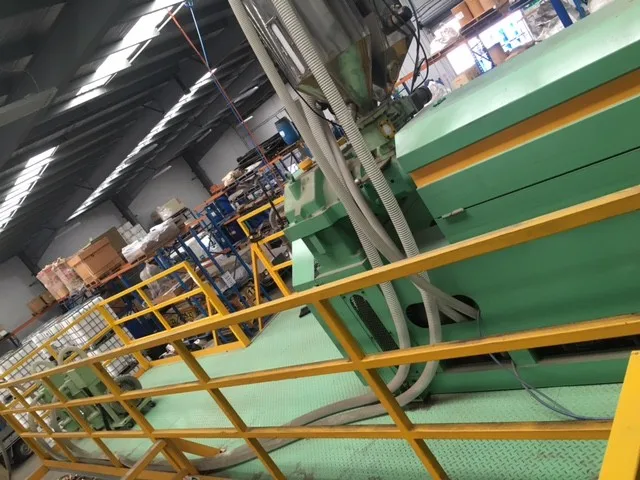

• 1 Free Standing Steel Frame

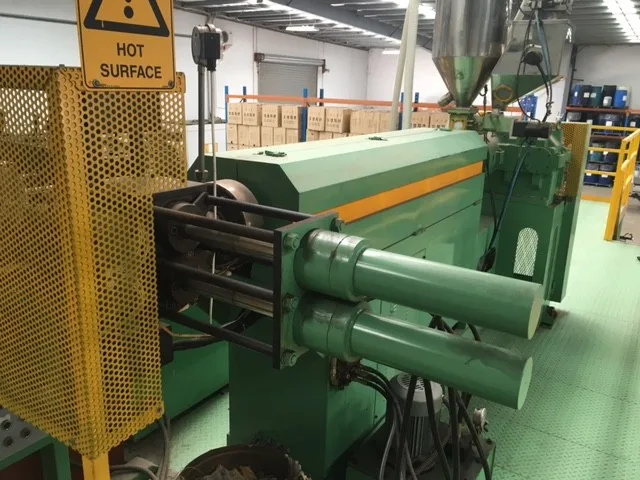

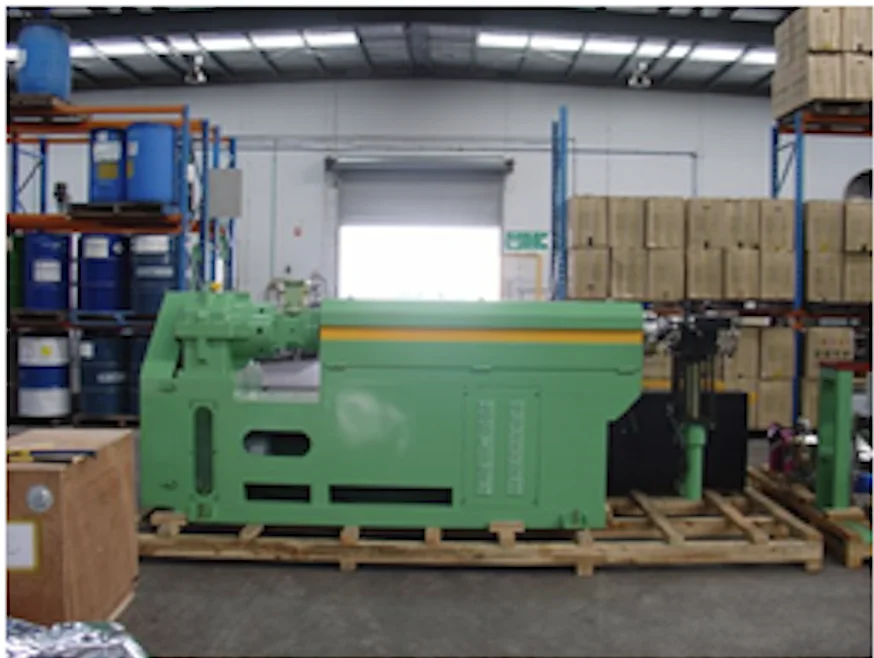

• 1 Extruder 70mm diameter screw - Ratio 30:1
• 1 Computerized color addition unit, to produce colored yarns
• 1 Auto Filter Changer
• 4 Metering Pumps
• 1 Spinning Head with 8 quick change spinerettes
• 1 Air Quenching Chamber
• 1 Suction System

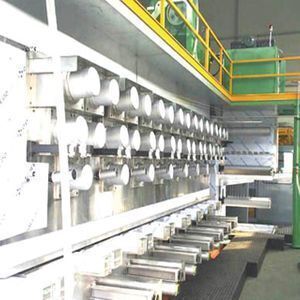

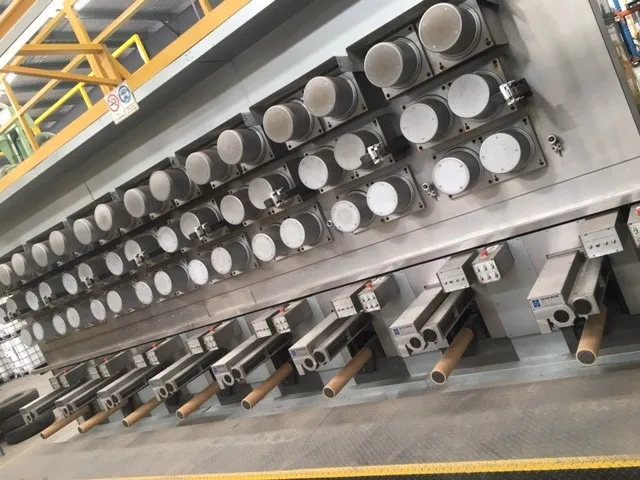

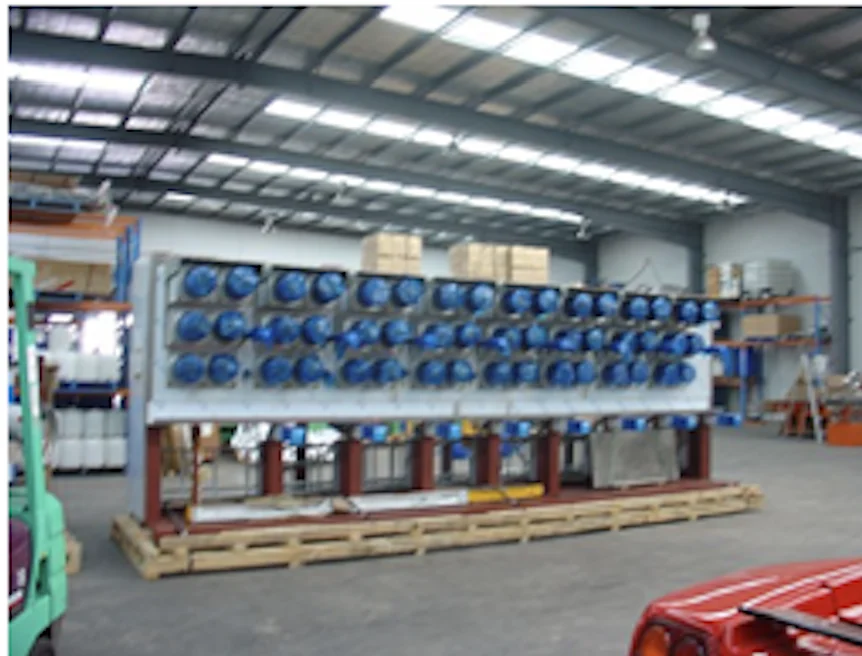

• 8 Drawing sections each with 5 Godet Rollers and 1 Idler Roller
1st Heated single roll and Single Separate Roll
185mm diameter x 170mm long - Orange Bail 0.50HP
2nd Heated Twin Rolls
185mm diameter x 170mm long Orange Bail 0.50HP
3rd Heated Twin Rolls
185mm diameter x 170mm long Orange bail 1.0HP

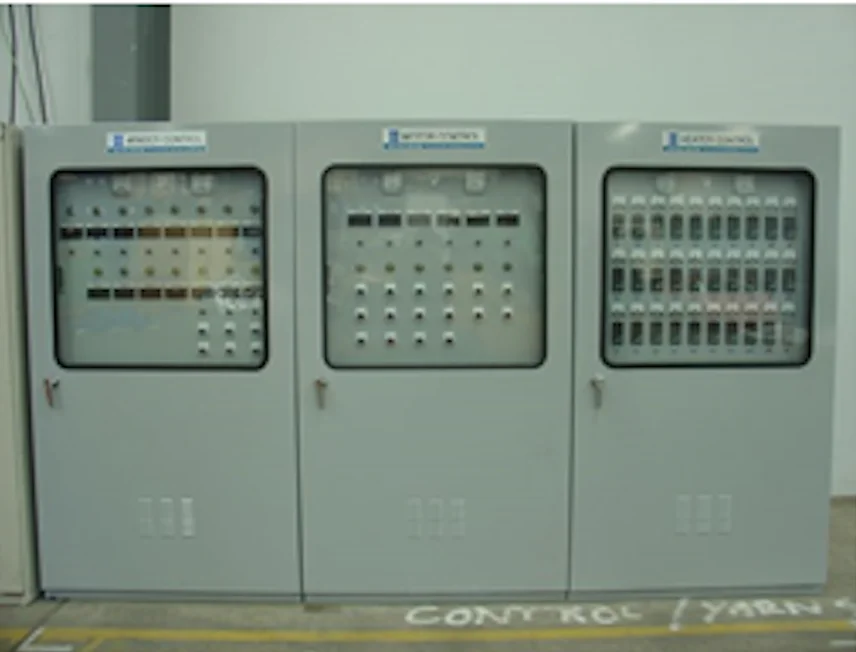

With AC drive and Inverters Maximum operating speed 2500 meter per min
Heated Rolls have full PID Electronic Temperature controls
• 1 Finish Applicator - Roller / Trough System
• 8 Air Entangling Jets designed to assist the final package
Formation Each thread passes through an air interlacing jet
Frequency mode is controlled by air pressure and winding tension
• 8 Winders each with 2 Cops
Friction Driven Winders
Max speed 2500 meter per min
Paper tube Dims
73mm inside diameter
87mm outside diameter
270mm long
Max Package weight 7 kg

Complete with;
Spare Spinerettes for differing Yarn types
Spare Parts
