Solder Seal Heat Shrink Butt Connectors Terminals Solder Seal Wire Connector Solder Sleeve

Supplier: Yueqing Hrya Electric Technology Co., Ltd.
Region: Zhejiang, China
Contact: Ms shelley zhou
Price: $0.02 / >=10 pieces
Min. Order: 10 pieces

Click here to contact

Product details

Brand Name:	HRYA;	Type:	Crimp Terminal;
Payment Terms:	L/C,D/P,T/T,Western Union;	Type:	insulation sleeving;
Name:	Discrete Solder Sleeve Wire Terminators;	Packaging Detail:	Standard export carton;
Port:	NINGBO/SHANGHAI;	Color:	red,black,yellow,transparent;
Application:	Low Voltage;	Material:	Composite polymer;
Supply Ability:	100000 Roll/Rolls per Day;	Place of Origin:	Zhejiang China;
Rated Voltage:	1kv;	Model Number:	SST-R14;

Solder Seal Heat Shrink Butt Connectors Terminals Solder Seal Wire Connector Solder Sleeve

Banner

Specifications:	Voltage 1kV Ideal for wire termination PE or PVDF as the out layer with the tin ring inner are all environmental friendly.

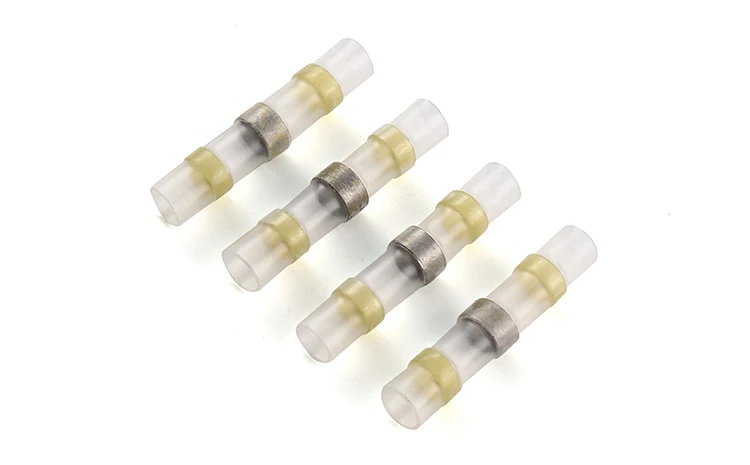

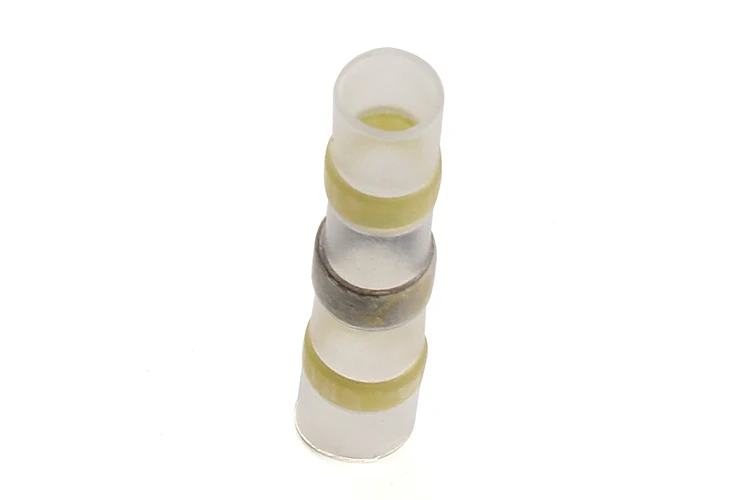

Features/Benefits:	Transparent outer layer, made from PE or PVDF. Provide encapsulation, insulation and strain relief Refluxed solder ring, offers controlled soldering process Thermoplastic inner insert at each end of the terminator, sealing against water and moisture Easy to use, and minimize damages to the termination Clear sleeve, make it easy to detect wire splice

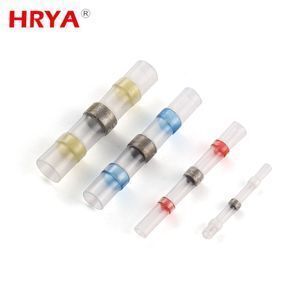

Colour:	Outer layer available in transparent only Inner thermoplastic insert available in Red, Blue, Yellow, Transparent
Product Code Cross References:	Raychem/Tyco : CWT/D110
Applications:	Terminating wires to component terminals, such as motor tabs, connector pins, and switch terminals
Temperature Range:	Operating Temperature : -55 ~ 125 °C Shrink Temperature : 150 ~ 200 °C
Certification:	CE Certified

Technical Details:

Test Item	Test Method	Typical Value
Dielectric voltage withstand	RT-1404	2.0kV
Voltage rating	RT-1404	600V
Voltage drop	RT-1404	Less than 2.0mV
Copper corrosion	UL224/ASTM D2671	Non-corrosive

Product Selection:

Product Code	Length (mm)	Inner Diameter (mm)
SST010017CR005	25	1.7
SSTT010027RD005	40	2.7
SST010045BL005	40	4.5
SST010060YL005	50	6

If you need other, feel free to contact us.
