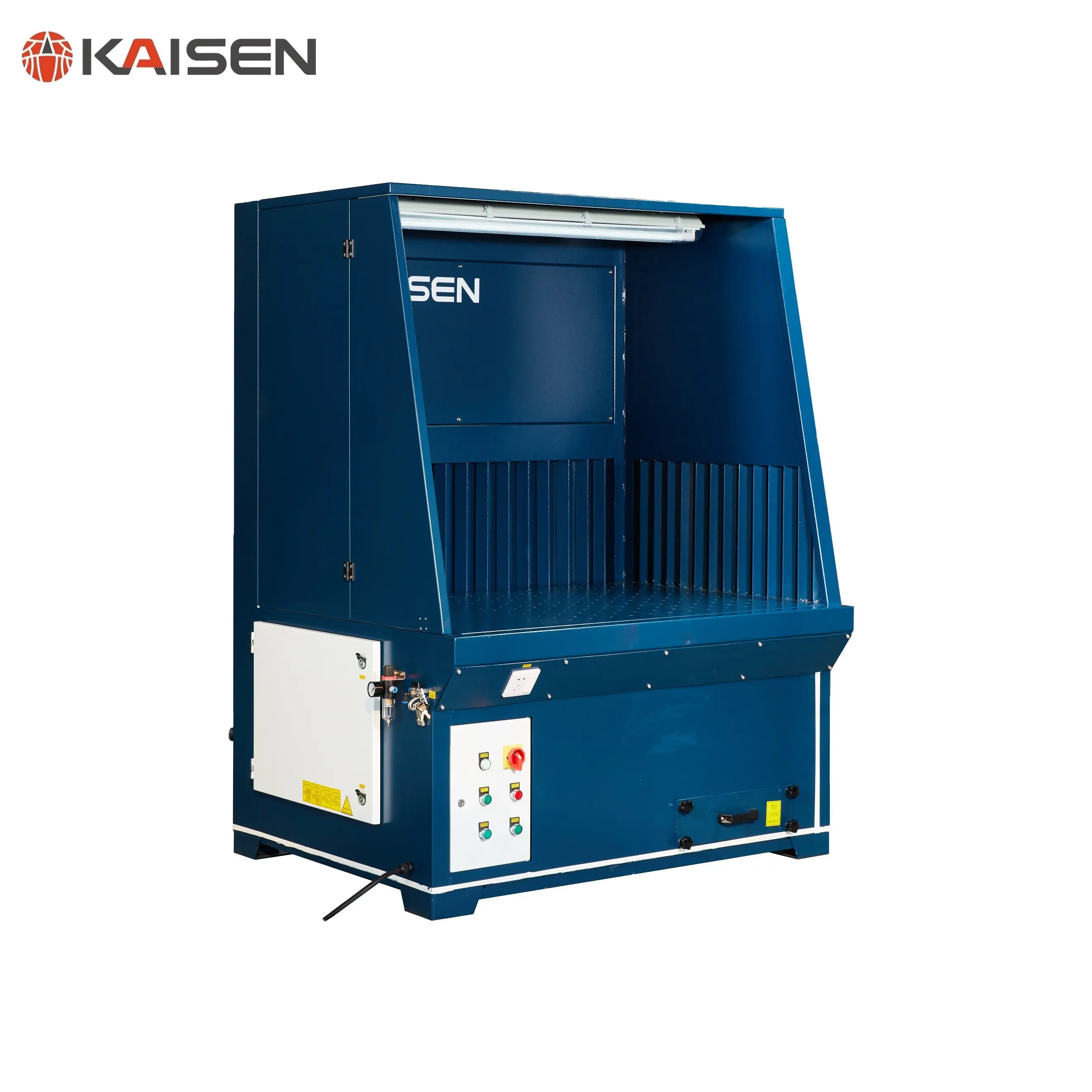

Metal Grinding Polishing Downdraft Welding Table Fume Extractor
-
Supplier: Shanghai Kaisen Environmental Technology Co., Ltd. -
Region: Shanghai, China -
Contact: Mr Jason lee -
Price: $3000.00 /set -
Min. Order: 1 set
| Warranty: | 2 Years; | Payment Terms: | L/C,T/T,Western Union; |
| Applicable Industries: | Manufacturing Plant,Machinery Repair Shops; | Weight: | 550kg; |
| Supply Ability: | 100 Set/Sets per Month; | After-sales Service Provided: | Free spare parts; |
| Minimum Particle Size: | 0.1um; | Application: | Dust Collect; |
| Place of Origin: | Shanghai China; | Name: | KSSDM-4.0 series fume collector for grinding and welding machine; |
| Brand Name: | KAISEN; | Condition: | New; |
| Packaging Detail: | Export Standard Packing; | Motor power: | 3kW; |
| Certification: | CE ISO; | Color: | blue; |
| After-sales Service Provided: | Engineers available to service machinery overseas; | Usage: | Clean Dust Air; |
| Port: | Shanghai; | Dimension(L*W*H): | 1400/1150/1900mm; |
Product photos
Dust extraction
Types of grinding dust cleaners
1.Integral byte polishing dust removing worktable, internal blower, motor and dust collector worktable.
With splash and large particles separation, filtration, collection function
2 .Explosion proof integrated self-cleaning polishing dust removing workbench, explosion-proof explosion-proof fan set, explosion-proof electric control box.
3 .The utility model has the advantages of low noise, stable performance, convenient operation and use, etc..
4. The exhaust type working table has no purification device, and can use large central dust collector to drive a plurality of exhaust type sanding and dust removing tables.
5. Water curtain sanding dust removing and purifying worktable.
Parameters
KSDM-3.0 Series
| Air Volume | 3000±100m³/h |
| Motor Power | 3kW |
| Working Voltage | 3×380V/50Hz |
| Filtering Area | 24m2 |
| Cleaning Way | Semi-automatic pulse reversely blowing cleaning |
| The maximum pressure | 0.6~0.7MPa |
| Filtraton Efficiency | >99.9% |
| Noise Level | ≤75±5dB(A) |
| Dimension | 1400(W)×1150(D)×1900(H)mm |
| The actual working table | 1315(L)×1000(W)×730(H)mm |
| Filtering cavity weight | 550±15KG |
-
