Square Cooling Tower

Supplier: Zhejiang Kingfit Enviroment Co., Ltd.
Region: Zhejiang, China
Contact: Ms Tracy Deng
Price: $2000.00 /set
Min. Order: 1 set

Click here to contact

Product details

Cooling Type:	Counter Flow;	After-sales Service Provided:	Engineers available to service machinery overseas;
Voltage:	3PH 380V/50HZ;	Applicable Industries:	Hotels,Manufacturing Plant,Food & Beverage Factory,Farms,Construction works ;
Warranty:	1 Year;	Port:	NINGBO;
Place of Origin:	Zhejiang China;	After-sales Service Provided:	Video technical support,Online support;
Weight:	1000KGS;	Certification:	ISO9001;
Brand Name:	QINGFENG;	Packaging Detail:	wooden case;
Payment Terms:	T/T;	Condition:	New;
Power(W):	1500;	Material:	FRP;
Supply Ability:	300 Set/Sets per Quarter;	Dimension(LWH):	2450MM X 2450MM X 4400MM;

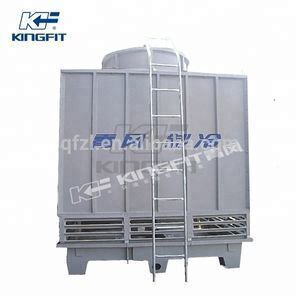

Square Cooling tower

Applications

Square cooling tower is mainly applied to air conditioning cooling system, cooling series, plastic, leather, power generation, and steam turbine, aluminum processing, air compressor, industrial water cooling, cooling for industrial production or refrigeration technology process.

Note: the customizable cooling tower can be designed and manufactured on the request from customers, and the manufacturer reserves the rights of changing product specifications.

Advantages

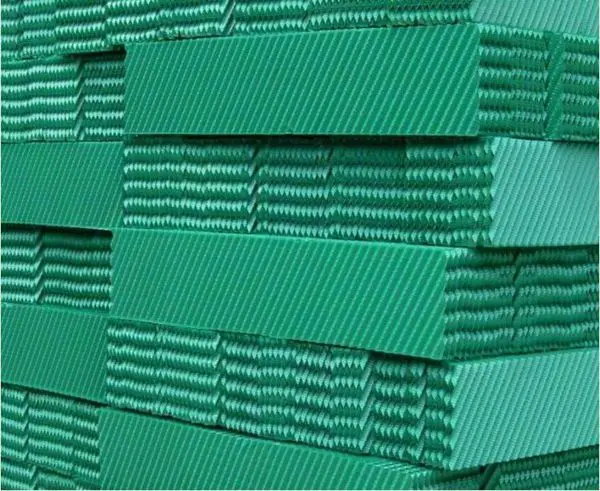

The curve grain is used on the radiator fin to effectively extend contact and thermal exchange between

water circulation and cooling wind in the cooling tower, making the air flow in the tower more reasonable

and reducing the air resistance to the minimal level. Coaxial blower adopts the spreading-shape

large vanes made in Hong Kong.

The blower, running more stably, reduces the noise, and improves the cooling efficiency greatly.

The housing of cooling tower, made form top-grade high-strength glass fiber reinforced plastics, can be

resistant to the erosion form natural factors and chemical

substances, keeping fresh with the time going; all the galvanized steel plates are resistant to oxidization

and erosion in conformity to the British standard BSENISO1461:1999, making product become more solid

and durable.

Kingfit brand cooling tower is provided with an observation window and water suction and filtering

net so as to observe the running condition inside and guarantee the cleanness of backwater.

Product Description

Kingfit brand cooling tower is working through evaporation action by contact of water and air, to disperse

the heat from industrial or refrigeration conditioning.

After getting through the air blower, dry-enthalpy air goes into the wind twitched nets in the cooling tower.

High saturated steam pressure points of

high temperature water molecules flow to the flow pressure air, and high enthalpy hot water sowing from the

water system of the tower. Since direct heat transfer and pressure drop between water and air, the action of

evaporation happened to take away the water evaporation heat, so as to achieve the purpose of cooling.

Selection of installation sites

The cooling tower shall be installed on the construction ground which has adequate load carrying capability

and good ventilation. The shortest distance between air inlet of the cooling tower and the horizontal building

shall be no less than 1.5 times of the tower outer diameter, that the fresh air can enter the tower without

resistance. The place which produces hot air and airborne dust shall be avoided effectively, otherwise other

protection methods shall be adopted for installation.

Our Services

All Kingfit machines have one year of free maintenance period starting from the date of sale.

The damagedpart can be replaced free of charge if it is not damaged due to manual misoperation,

and is confirmed by the technical identification of the company or agent; otherwise, costs of the part

will be charged.

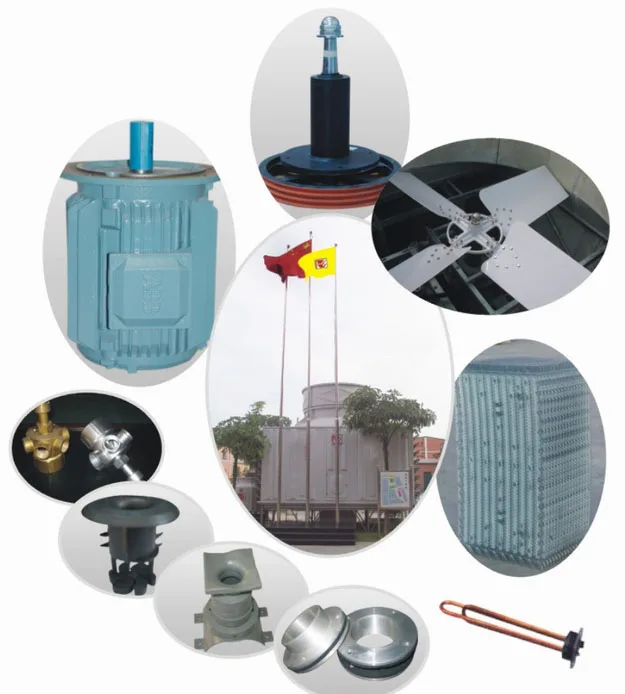

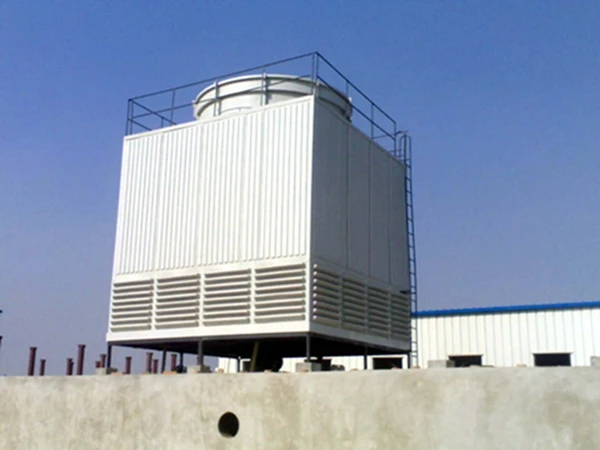

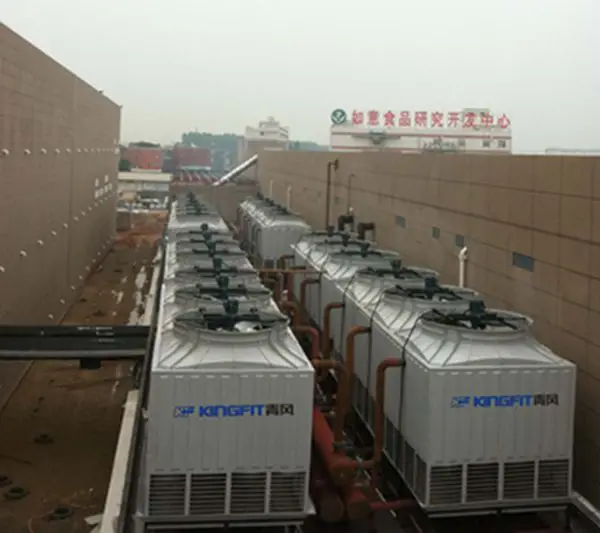

Product Pictures

Kingfit Company Show
