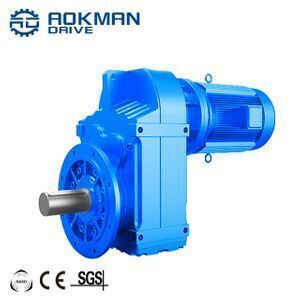

AOKMAN 10HP 20HP F Series BLDC Gear Motor Speed Reducer

Product details
Input Speed:1400rpm;Brand Name:AOKMAN DRIVE;
Certification:ISO9001;Output Torque:7840N.m-18000N.m;
Color:Customer Request;Mount Position:Foot, Flange, Shaft Mounted;
Bearing:NSK Bearing;Output Form:Flange Output;
Gearing Arrangement:Helical;Gear Material:20CrMnTi Alloy Steel;
Warranty:1 Year;Place of Origin:Henan China;
Output Speed:Based on Ratio;Port:Shanghai/Ningbo;
Packaging Detail:Plastic Bags, Plywood Cases;Housing Material:Cast Iron;
Ratio:4.63~270.18;Supply Ability:3000 Set/Sets per Month Hardened Helical Gears AOKMAN F108-F158 Reversible Gear Box with;
Input Form:Motor, Motor Flange, Input Solid Shaft;Payment Terms:L/C,D/A,D/P,T/T,Western Union,MoneyGram;
Gearbox Description

AOKMAN 10HP 20HP F Series BLDC Gear Motor Speed Reducer

Components:

1. Housing: Cast Iron
2. Gears: Hardened Helical Gears
3. Input Configurations:
Equipped with Electric Motors
Solid Shaft Input
IEC-normalized Motor Flange
4. Applicable Motors:
Single Phase AC Motor, Three Phase AC Motor

Brake Motors
Inverter Motors
Multi-speed Motors
Explosion-proof Motor
Roller Motor
5. Output Configurations:
Solid Shaft Output
Hollow Shaft Output

Models:

F Series - Foot-mounted, solid shaft output
FAB Series - Foot-mounted, hollow shaft output
FA Series – Keyed hollow shaft output
FF Series – B5 Flange-mounted, solid shaft output
FAF Series – B5 Flange-mounted, hollow shaft output
FAZ Series – B14 Flange-mounted, hollow shaft output
FAT Series – Hollow shaft output, torque arm
FH, FHB, FHF, FHZ Series – Hollow shaft output, shrink disk
FV, FVB, FVF, FVZ Series – Hollow shaft output, splined hollow shaft
F(FA, FF, FAF, FAB, FAZ)S Series – Solid shaft input

Features:

1. Modular design, compact structure. Extra-slim parallel shaft helical gearmotors are the perfect solution when space is limited
2. F series parallel shaft helical gearmotors are typically used in conveyors and materials processing applications
3. Multi-stage(2 or 3 stages) gear units for low output speed
4. Hollow output shaft with keyed connection, shrink disk, splined hollow shaft, or torque arm
5. Can be combined with other types of gearboxes (Such as R Series, UDL Series)
6. Optional mounting options (foot-mounted, flange-mounted, shaft-mounted)

Gearbox Parameters
Models
Output Shaft Dia.
Input Shaft Dia.
Power(kW)
Ratio
Max. Torque(Nm)
Solid Shaft
Hollow Shaft
F38
25mm
30mm
16mm
0.18~3.0
3.81~128.51
200
F48
30mm
35mm
16mm
0.18~3.0
5.06~189.39
400
F58
35mm
40mm
19mm
0.18~5.5
5.18~199.70
600
F68
40mm
40mm
19mm
0.18~5.5
4.21~228.99
820
F78
50mm
50mm
24mm
0.37~11
4.30~281.71
1500
F88
60mm
60mm
28mm
0.75~22
4.20~271.92
3000
F98
70mm
70mm
38mm
1.1~30
4.68~276.64
4300
F108
90mm
90mm
42mm
2.2~45
6.20~255.25
7840
F128
110mm
100mm
55mm
7.5~90
4.63~172.33
12000
F158
120mm
120mm
70mm
11~200
12.07~270.18
18000
Customer Visiting

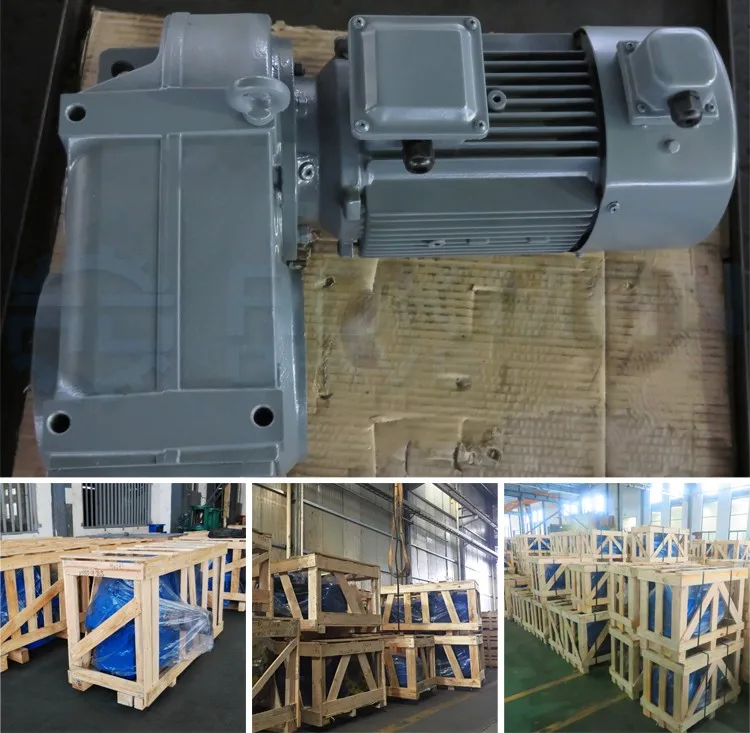

Packing & Delivery

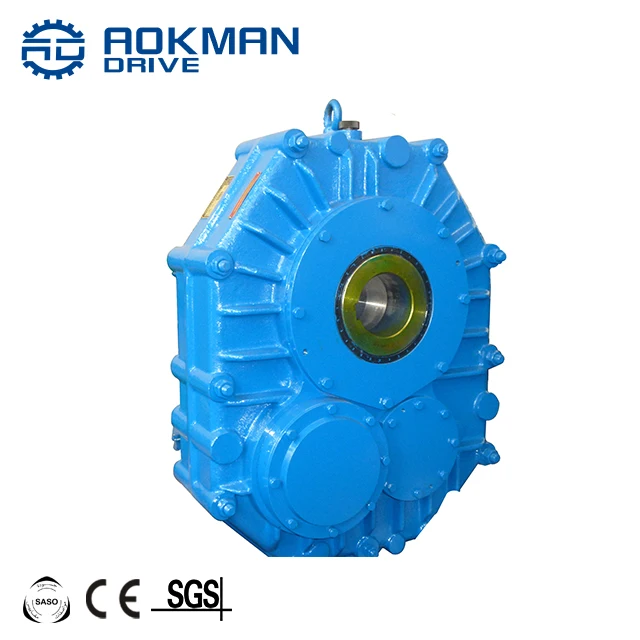

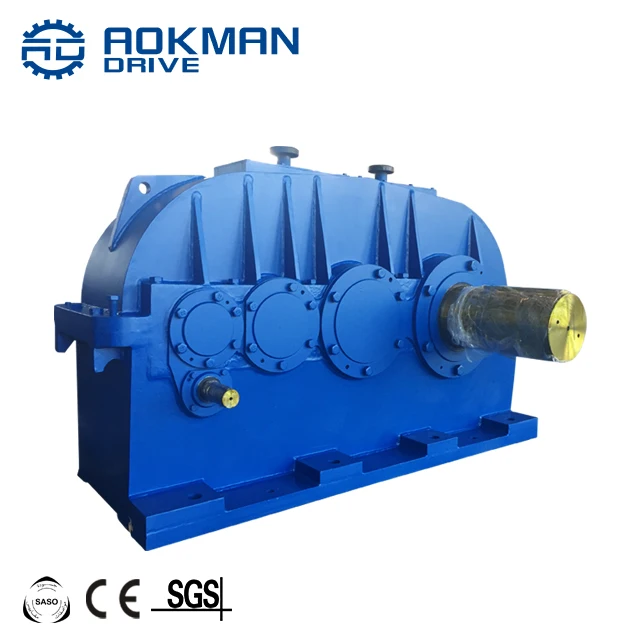

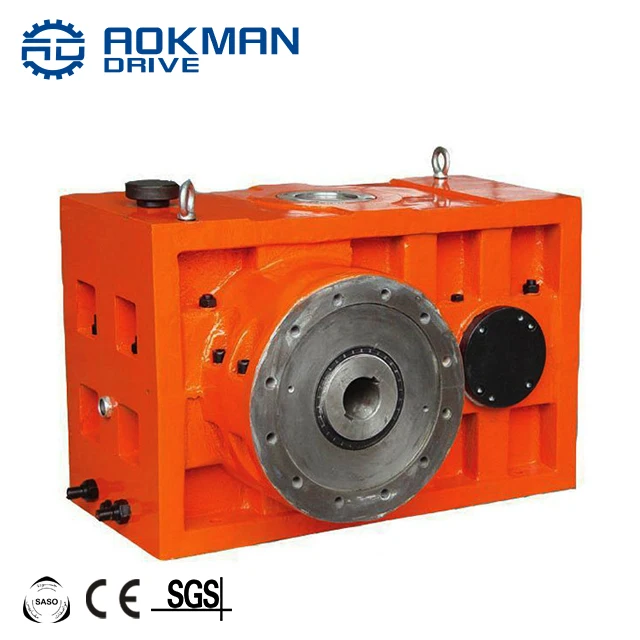

Related Gearboxes
