Model Number: | CHA12025; | impeller & frame: | PBT; |
Single package size: | 44X39X27 cm; | Type: | Fan; |
Single gross weight: | 10.8 KG; | bearing type: | hydraulic or double ball; |
Fan Speed Control: | 2800rpm; | Power Interface: | 3pin/4pin; |
Package Type: | Tray + Carton + Pallet or Packed as customer require; | Selling Units: | Single item; |
Heatsink Material: | Plastic; | Fan Size: | 120x120x25mm; |
Product Name: | hot sale 120x120x25mm 12025 5V 12V 24V dc computer case cooling fan; | Brand Name: | CCHV; |
static presure: | 1.57-2.65mmAq; | Size: | 120mm x 120mm x 25mm; |
Bearing: | TWO BALL BEARING; | Noise: | DEPENDS ON RPM; |
Fan Life: | 50000 Hrs; | Application: | Computer Case; |
Place of Origin: | Guangdong China; |
Product Parameter

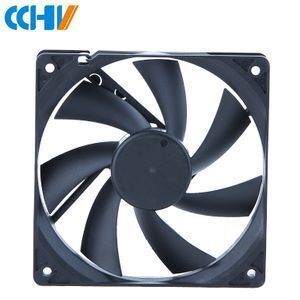

hot sale 120x120x25mm 5V 12V 24V dc computer case cooling fan

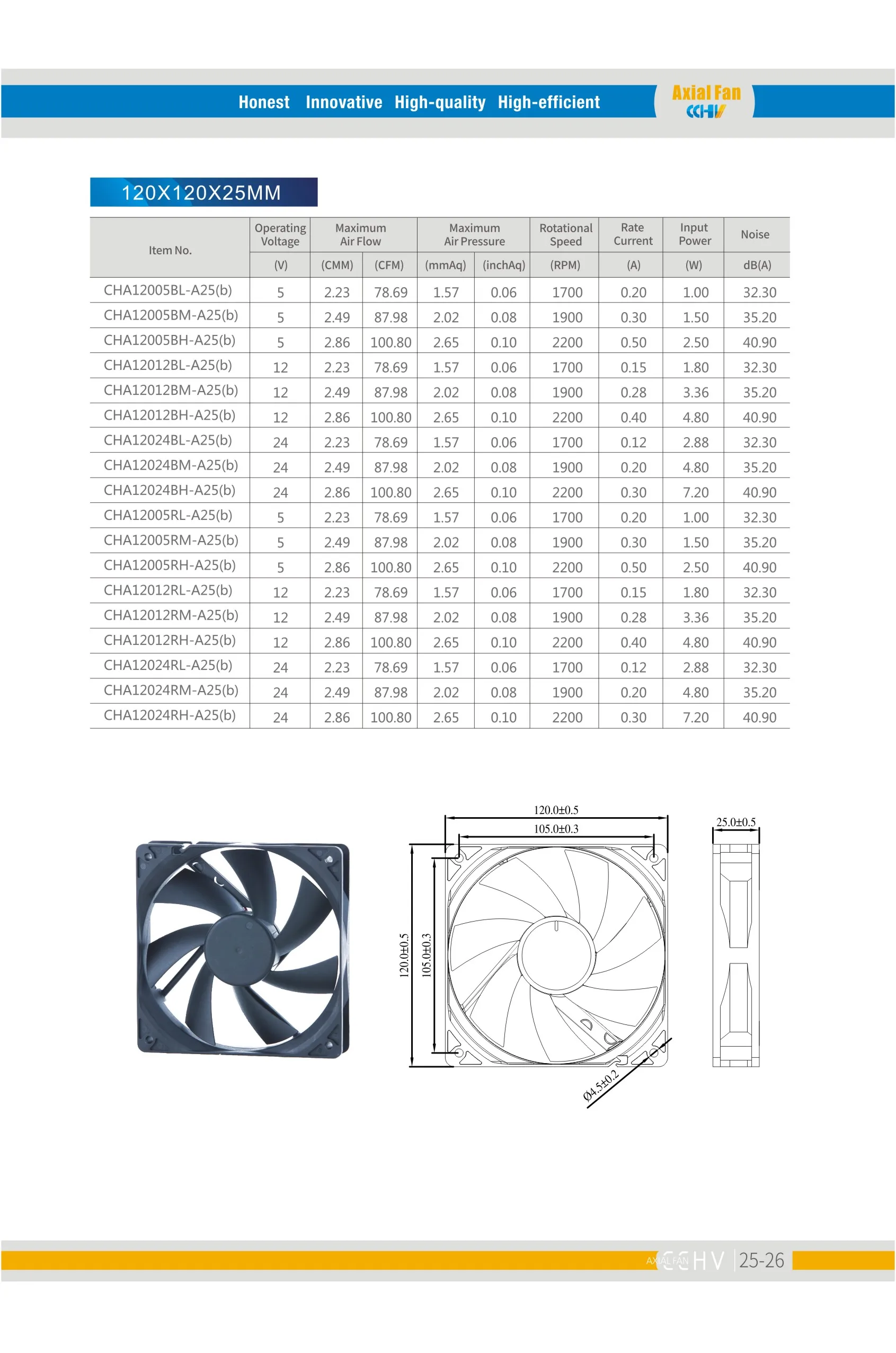

Product specification | 120x120x25mm 5V 12V 24V dc computer case cooling fan |
computer case fan, computer 12V cooling fan, dc computer cooling fan | |
Size: | 120mm x 120mm x 25mm |
Speed: | 2750RPM-4300RPM |
Voltage | 5V/9V/12V/24V |
Static Pressure: | 2.02-11.03mmAq |
Air Volume: | 80cfm-150cfm |
Wire: | 2 pin, 3pin or 4pin with Customized connector |
Impeller: | 7 fings |
Bearing Type: | Hydraulic or Ball |
We specialize in producing DC/EC brushless cooling fan for more than 10 years. |
Product Dimensions
