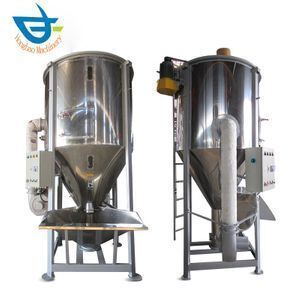

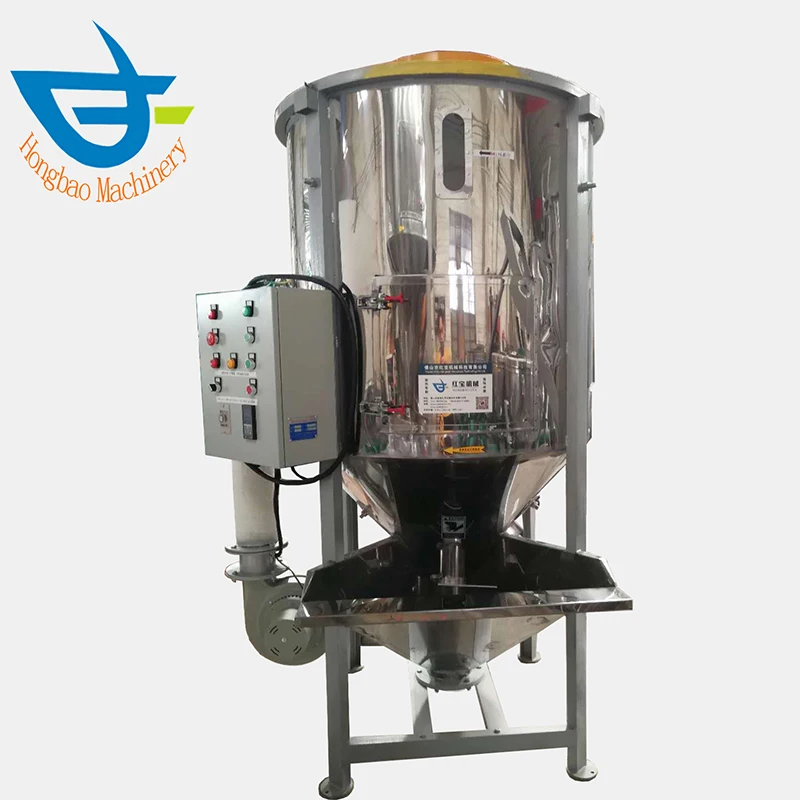

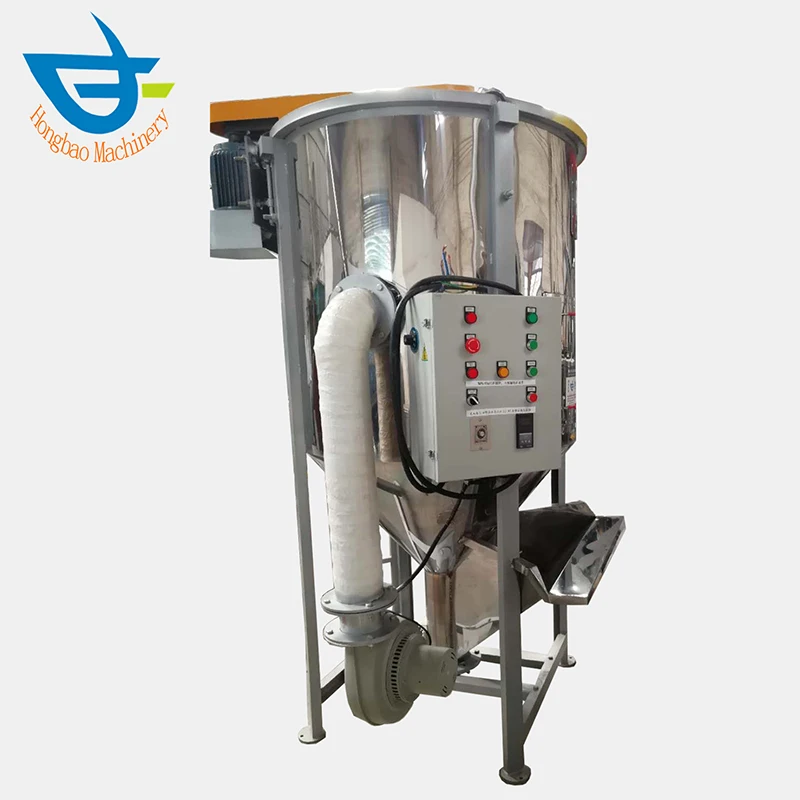

500kg plastic mixing dryer

Supplier: Foshan Hongbao Machinery Technology Co., Ltd.
Region: Guangdong, China
Price: $1684.80 /piece
Min. Order: 1 piece

Click here to contact

Product details

Port:	Guangzhou huangpu port;	Capacity:	500;
Brand Name:	Hongbao;	The motor power:	3kw;
Speed:	350r/min;	Condition:	New;
Material of blade:	Stainless steel;	Applied material:	Stainless steel;
Heating power:	12kw;	Dimension(LWH):	120120235;
Supply Ability:	1 Piece/Pieces per Day;	Place of Origin:	Guangdong China;
Model:	HBH--500;	Payment Terms:	T/T;
PRODUCT NAME:	plastic mixing dryer;	Overall dimensions:	120120235;
Packaging Detail:	Wooden frame plywood Stretch film Foam membrane;	Warranty:	1 Year;
After-sales Service Provided:	Video technical support;

Model	HBH--500	HBH--1000	HBH--2000	HBH--3000	HBH--5000
Capacting(KG)	500	1000	2000	3000	5000
The motor power(KW)	3	4	5.5	7.5	11
Heating power(KW)	12	20	30	40	50
Speed(r/min)	350
Overall dimensions(CM)	120120235	160160265	175175355	220220385	240240435

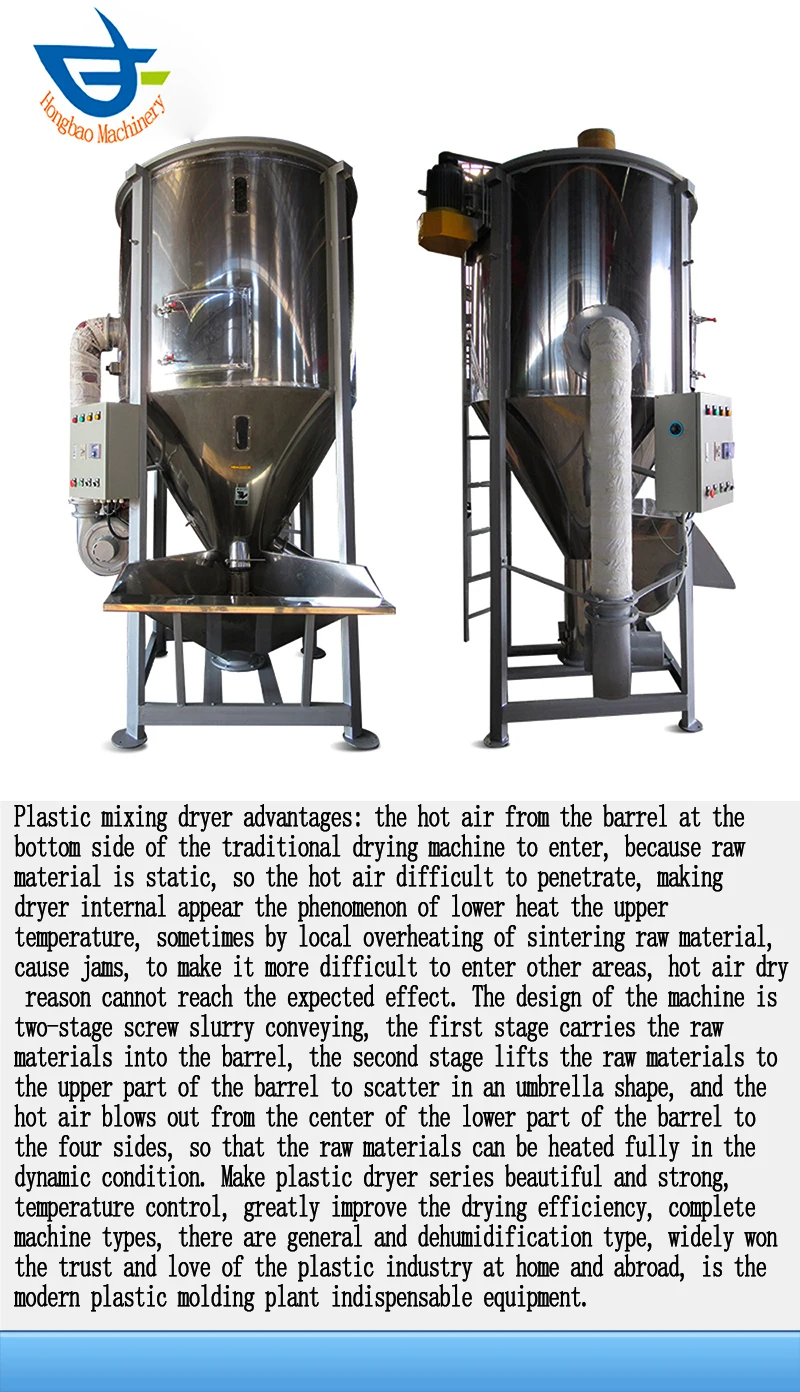

Plastic mixing dryer is one of the necessary equipment of injection molding machine, granulator, plastic particles from the feed hopper, under the action of helical blade propulsion, along the blade surface upward sliding under the action of centrifugal force of the upper, the barrel scattered around, scattered material continuously moves down, by circulating discharging mouth and circulate in barrel mouth by continual spiral blade in promoting. Such repeated cycle, purpose of mixing, meanwhile the air blower sent to the electric heating box, became hot after heating and automatic control, temperature control table to evenly between hot air from the resin is suitable for all the way through, through the material layer, hot alternating constantly take away moisture, top-down, resin particles decreased continuously in the process of purging dry, efficient drying and mixing process.
