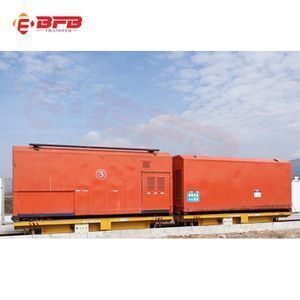

Hot dip galvanized plant electric railway flat wagon for heavy pipe handling

Supplier: Xinxiang Hundred Percent Electrical And Mechanical Co., Ltd.
Region: Henan, China
Contact: Ms Anny zhang
Price: $5500.00 /set
Min. Order: 1 set

Click here to contact

Product details

Type:	Platform Wagon;	Warranty:	12 Months;
Application:	Industry Field/Workling Line;	Payment Terms:	L/C,T/T,Western Union,Trade Assurance;
Supply Ability:	600 Set/Sets per Year railway flat wagon manufacturer since 2003.;	Packaging Detail:	The whole railway wagon will be packed by the tarp, the parts will be packed by polywood case.;
Certificates:	CE ISO SGS;	Dimensions (L x W x H) (mm):	Client's Requirement;
Load capacity:	1-300t;	Port:	Qingdao/Tianjin/Shanghai;
Preload:	> 50t;	Place of Origin:	Henan China;
Running Speed:	0-20m/min;	Running Time:	Unlimited;
Color:	Red /Yellow /Blue /Gray /Customized;	Power supply:	Conductor rail powered;
Product Type:	KPD;	Running distance:	Unlimited;
Material:	steel;	Brand Name:	BEFANBY;

Product Description

Customized railway wagon

BEFANBY designed and manufactured the industrial railway wagon and provide innovative handling solution with more than 16 years' experience.the railway wagon can be used in industry plant, port, workshop, production line and so on to transport ladle, coil, mold, steel products, work piece and so on.All the solution are designed as per customers true demand.

The low voltage rail powered transfer wagon is a good choice if meeting the following features:

1. No cables so that the transfer wagon make the transfer more convenient, and the transfer wagon can realize turning easily
2. The transfer wagon is required to run on the rails(The rails needed to be insulated due to low voltage rail power)
3. The transfer wagon usually is used in indoors, from one workshop to another
4. The working frequency is higher
5. The speed is adjusted

Hot dip galvanized plant electric railway flat wagon for heavy pipe handling

Remark: Dimensions,capacity, loading platform superstructure, speed and many others features can be customized as per client request despite running on indoor or outdoor, high temperature or explosive environment.

Advantage

1.   High level automation(self propelled/steerable)
2.   The largest capacity can reach to 500t
3.   Safe parts are installed in the transfer wagon(warning light, e-stop, buffer...)
4.   Robust sturdy car frame
5.   AC/DC electric engine , diesel engine or pneumatic engine
6.   Excellent gear reducer and motor with high quality, assemblied together perfectly
7. Remote control&hand pendant control make the opration more convenient.
8.   The speed can be adjusted
9.   Easy operation and maintenance
10. Famous brand parts, guarantee the quality and prolong the using lifetime
11. Low noise and do not pollute the environment

Product Parameter

Modle	KPD-10T	KPD-30T	KPD-50T	KPD-80T	KPD-100T	KPD-150T
Table Size (m)	3.62.00.5	4.52.20.6	5.52.50.65	6.02.60.8	6.52.80.85	103.01.2
Power	Low Voltage Rail Power
Rail inner Gauge	1435mm	1435mm	1435mm	1800mm	2000mm	2000mm
Wheel Dia.	300mm	400mm	500mm	600mm	600mm	600mm
Running Speed	25m/min	20m/min	20m/min	20m/min	20m/min	20m/min
Motor Power	1.6kw	3.5kw	5kw	7.5kw	11kw	15kw
Max Wheel Load	42.6Kn	110.4Kn	174Kn	278.4Kn	343.8Kn	265.2Kn
Reference weight	4.2t	6.8t	8t	12.8t	14.6t	26.8t
Recommend Rail	P18	P38	P43	P50	QU100	QU100

Remark: the technical parameter of the transfer cart only can be make reference above.All can be customized manufacturing as per your true demand. please contact us if any doubt. Our professinal engineer will help you solve the transfer problems in any time. Hot dip galvanized plant electric railway flat wagon for heavy pipe handling

Packing & Delivery

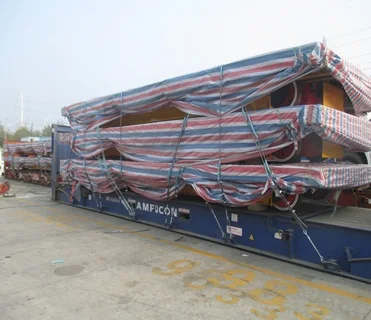

Packing
Size	Actual measurement shall prevail
weight	The actual weight shall prevail
Details	The transfer wagon normal package is plastic cloth(Size: LWH). If export to european countries or container is too tigher,we will packed it according to customers special request

Delivery
Size	Actual measurement shall prevail
weight	The actual weight shall prevail
Details	The transfer wagon are shipped to proper container as per the cargo size, LCL, 20', 40', FR container and so on. And we have the long term cooperative forwarder, and the proper transportation solution and economic price will be provide and make you at ease with rich experience.

Our Company

Xinxiang Hundred Percent Electrical and Mechanical Co., Ltd is a collection of research, design, manufacture, installation and after-sales service of electric handling cart ,metal sheet rail wagons as one of the professional manufacturing company, which has a modernized management team and excellent staff.And our prodcuts gets CE, SASO,SGS,ISO certificate and other 8 national patent, our products have been exported to more than 50 countries and regions,such as Germany, Mexico, USA, Turkey, South Africa, Singapore etc. Hot dip galvanized plant electric railway flat wagon for heavy pipe handling

Give us a call today at 86-373 5289556 or click here for more information for a free quote on any size transfer car.
If you can think it then we can manufacture it; transfer cars for any application.
