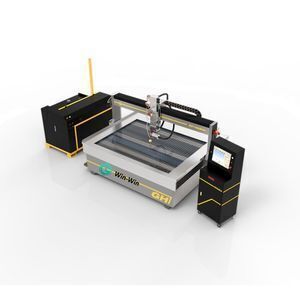

Small Five-axis Waterjet Cutting Machine for Metal Marble Glass Cutting with Competitive Price

Product details
Rated Power:30kw/40hp or 37kw/50hp;Warranty:1 Year;
Brand Name:Win-Win;Port:Dalian;
Control system:WEI HONG;Voltage:380V/220V/415V;
Year:2019;Cutting material:Metal Stainless Steel Carbon Steel Aluminum;
Packaging Detail:Soft packing in wooden case shipped by sea for waterjet cutting machine.;Supply Ability:10 Set/Sets per Month Short delivery time;
Handling Time:15-25 days after payment;Applicable Industries:Building Material Shops,Machinery Repair Shops,Manufacturing Plant,Retail,Construction works ,Energy & Mining;
Condition:New;Cutting speed:0-10000mm/min;
Dimension(L*W*H):2900mmx2300mmx2000mm;Cutting mode:Cold Cutting;
Cutting size:2000*1500mm;Name:Small five-axis waterjet cutting machine;
Certification:Trade assurance;After-sales Service Provided:Field installation, commissioning and training,Field maintenance and repair service,Online support,Video technical support;
Key Selling Points:Competitive Price;Payment Terms:L/C,D/A,D/P,T/T,Western Union,MoneyGram;
Place of Origin:Liaoning China;Type:Water Jet Cutters;
Weight (KG):3700;Cutting thickness:1-150mm thickness;
Product Description

                                             1.Waterjet Platform

Platform structure

5 axis Gantry type

Available Cutting range

X-3000mm,Y-2000mm,Z-140mm

Max Swing Angle

±10°

Swing Angle precision

 +0.01°

Cutting accuracy

±0.1mm

Re-position accuracy

0.025mm

Max. Travel Speed10m/Min.

Operating software

WEIHONG

Nominal power rate of  X.Y Axis

0.8KW/pc

Nominal power rate of Z.A.B Axis

0.4KW/pc

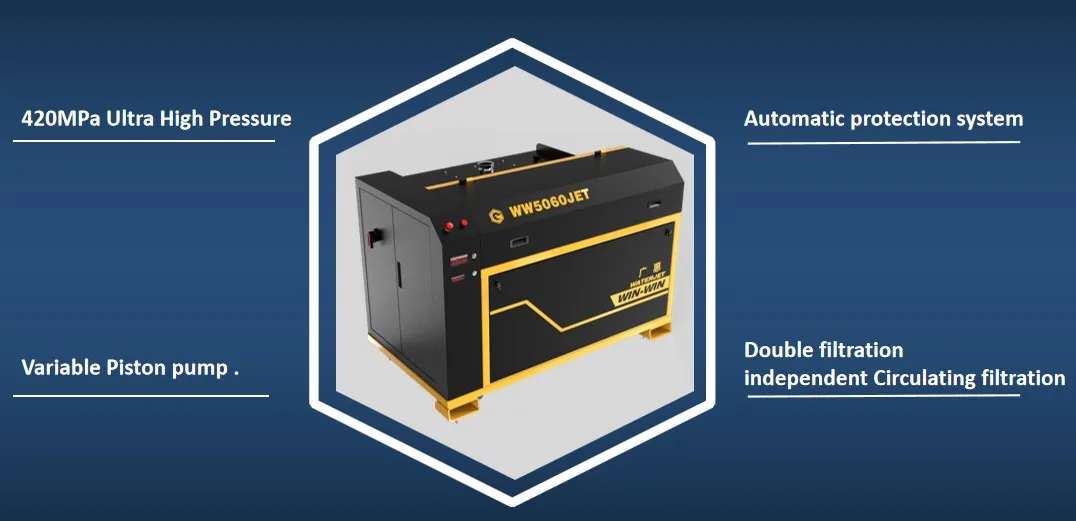

                                                                       2.  Waterjet pump

  • .International high standard universal pump with imported spare parts.
  • .420MPa ultra-high pressure and high efficiency cutting, perfectly reflecting the water cutting performance.
  • .1.2L large-capacity accumulator : eliminate the fluctuation of the cutting .
  • .Automatic Constant pressure variable pump,reduce consumption and heating, extend the life of hydraulic components.
  • .Oil pump: Double filtration and independent Circulating filtration system to ensure the optimization of oil quality.
  • .With effective fan-oil cooling system and fan-water cooling system, oil temperature is strictly control to not over 60 degrees Celsius, guaranteeing life of sealing elements,suitable for 24 hours work .
  • .The automatic protection system shutdown when water shortage or overheating, could working continuously and safely.



Voltage

380V(220V/420V/110V Accept customization)

Rated Power

30kw/40HP  37KW/50HP

Max. operating pressure

420MPa/4137bar/60000psi

Continuous working pressure

320MPa-380MPa

Max. discharge rate

3.8L/min

Orifice diameter

0.33mm

Nozzle diameter

1.02mm

Oil tank volume

150L

Dimension(L*W*H)

1.8m·1.1m·1.3m

Weight

1.3t

                                                                     3.Waterjet control system

Display

Industrial-grade Display

Brand

WEIHONG

Language

English/Chinese

System Version

Win10

Formats

DXF/G/ENG/OLT

System Function

AB  5Axis

                                                                 4. Waterjet abrasive delivery system

Wall thickness

4.5mm (Explosion-proof)

Air pressure

0.2MPa-1MPa

Volume

200KGS

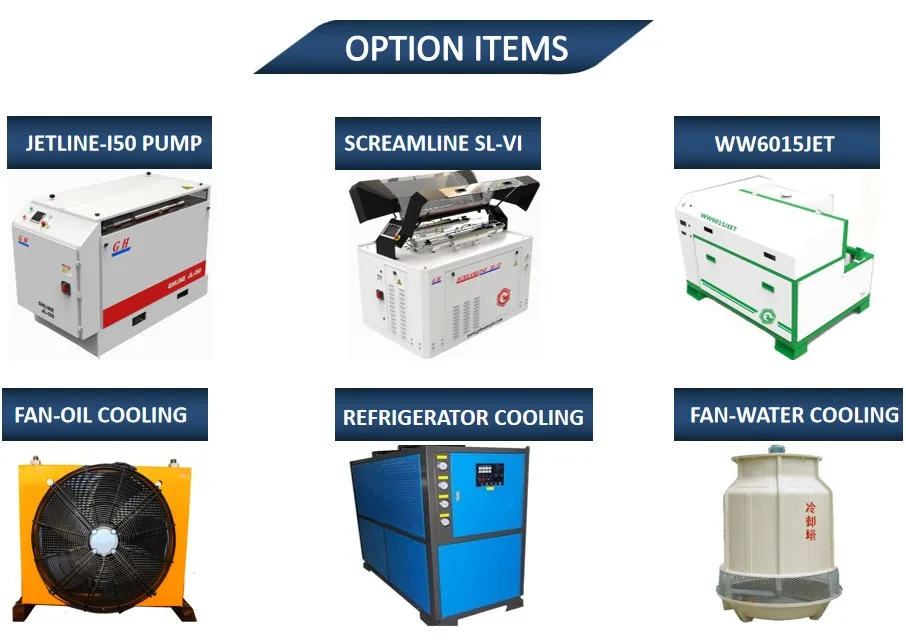

Option item



You May Like

You may also like

5 Axis waterjet cutting machine



1

3 axis waterjet cutting machine



2

Waterjet robotics



3

Waterjet spare parts



Nozzle
Orifice
On/off repair kit Intensifier                     Accumulator
Seals                   More...
4

 4







Company Information

Shenyang Win-Win Waterjet Co.,Ltd

Win-win has been in water jet business for more than fifteen years. Our founders is an industry pioneers, a group of lovely engineers, like Edison, are fascinated by the breakthrough and progress of ultra-high pressure technology. So, Win-win have mastered more than ten core technologies and processes of ultra-high pressure.

In the process of questioning our company's ability and technical level, Win-win has become the largest and most reliable supplier of ultra-high pressure parts in China. In our own 2500 square meters standardized workshop, you can see automated production lines, standardized inspection process, 100% pre-sale testing, especially, the best R&D (research and development) design team. At present, Win-win is focus on the following three core and high-level undertakings:

1.Robot water cutting workstation.
2.Various brand components(World brand and Chinese brand).
3. AB five-axis, AC five-axis and portable water cutting equipment.

At the same time, we are also willing to accept customized parts and equipment.


We are not only a durable and high quality supplier of ultra-high pressure equipment and parts, but also a reliable partner of you in China. We will never be on the other side of the network. Our technical engineers will be there in time. We will be able to receive customer consultation 24 hours anywhere in the world, after-sales service, Our cooperation is not limited to water cutting. Through cooperation and mutual trust in the field of water cutting, we can share all aspects of life and work, such as tourism, food, children studying abroad, family medical assistance and so on.

Quality Control



Trade Shows



We are 5 years Alibaba Golden, Verified Supplier, with full 5 Star service level, in Waterjet cutting machine filed.



Please contact us to get you product now!

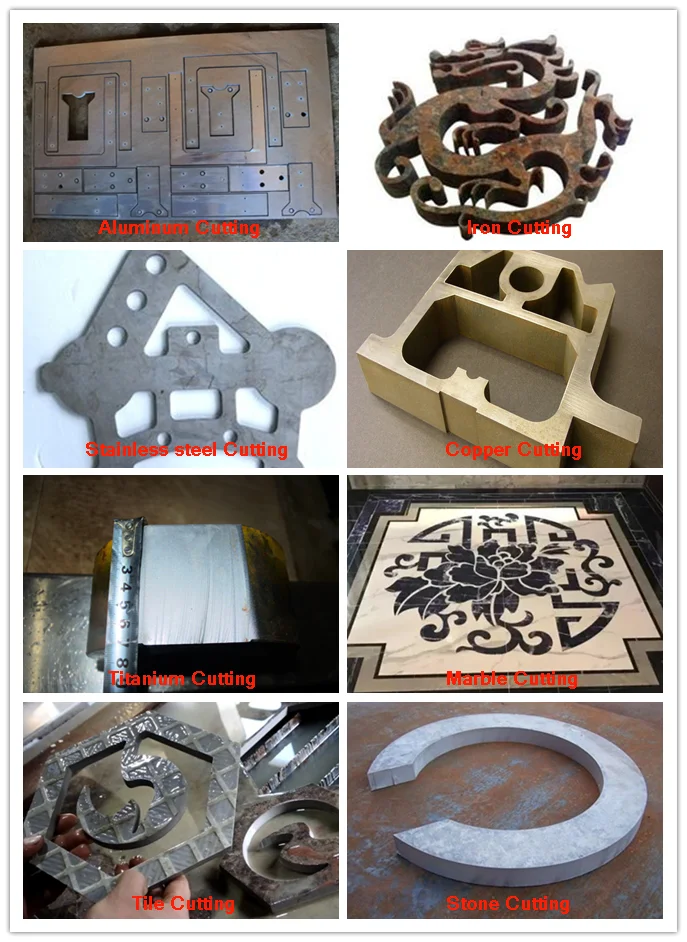

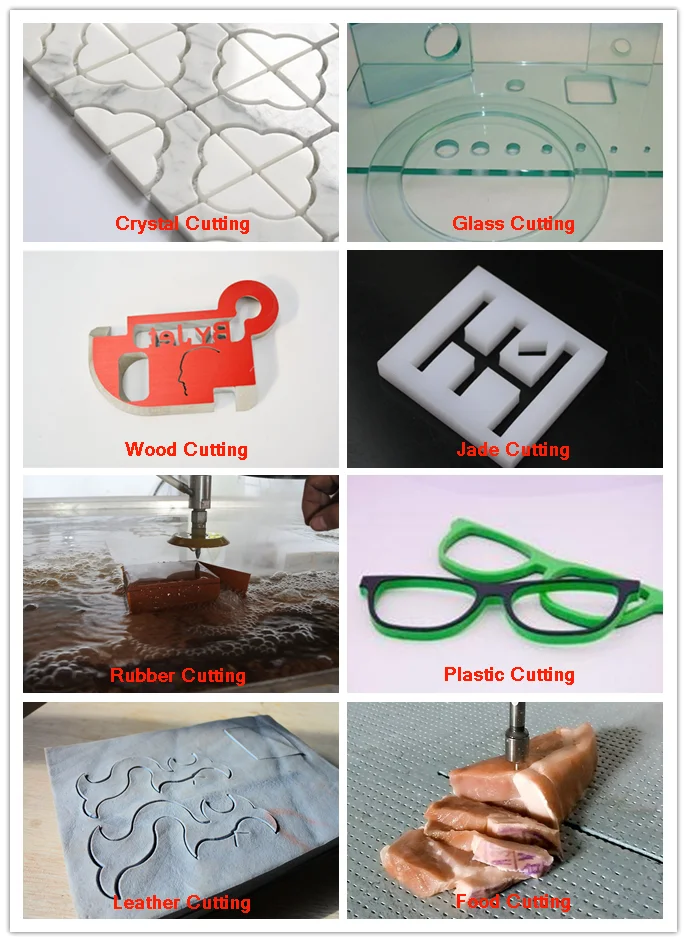

Cutting Samples



CNC 5 Axis Waterjet Cutting Machine Cutting Samples



FAQ

Q: Trading or Manufacturer?

A: We are factory.

Q: Delivery time?

A: Generally it is 3-5 days if the goods are in stock. or it is 10-15 days if the goods are not in stock, it is according to quantity.

Q: Do you have sufficient in stock?

A: We have 5 warehouse, with sufficient stock for many customer.

Q: Terms of payment ?

A:  L/C, T/T/ Western Union, Paypal, Alipay, Credit Card and etc..

Q: What's your aftersale service?

A: 24 hours remote service, fast trouble shooting and technical support, provide video and instruction.

Q: Can you provide customized parts?

A: Yes, of course. we have tennical and design department, customized parts no problem.

 If you have any inquiry, please chat with us to get support!
