Drawing customized Cobalt Based Alloy 20 stellite 6 valve ball and seat

Supplier: Shenyang Top New Material Co., Ltd.
Region: Liaoning, China
Contact: Mr Manager Liu
Price: $2.50 /piece
Min. Order: 1 piece

Click here to contact

Product details

Specifications:	VII-106 to VII-375;	Supply Ability:	10000 Piece/Pieces per Month valve ball and seat;
Application:	Oil&gas industry;	keywords:	valve ball ,stellite ball;
Performance:	Wear, corrosin and thermal resistance;	Place of Origin:	Liaoning China;
Port:	Dalian Port of China;	Material Grade:	Stellite 3,6,20;
State:	Blank or ground;	Product name:	Drawing customized stellite 20 stellite 6 valve ball and seat;
Fittings:	Stellite valve seat;	Material:	Stellite 3,6,20;
Model Number:	stellite valve ball seat;	Brand Name:	SYTOP;
Compositions:	CoCrW alloy;	Packaging Detail:	Standard package of Drawing customized stellite 20 stellite 6 valve ball and seat : plywood exporting packaging;
Payment Terms:	L/C,T/T,Western Union;	Blank:	No belt;

Product Description

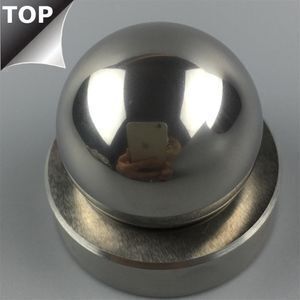

Drawing customized stellite 20 stellite 6 valve ball and seat

Materials of valve balls - Cobalt Chrome Alloy

---Excellent wear and corrosion resistance even at high temperature up to 800℃

Chemical compositions and properties (%)

Brand

Density

(g/cm3)

Hardness

(HRC)

TOPS 20

2.2-3.0

2.0

30-34

3.0

1.0

14-18

Bal.

3.0

≤0.05

8.65

53-59

Dimensions of valve seats and balls

API Standard Valve Seat &ball

No.	Specifications	Dimensions OD/ID×H (in)	Dimensions D (in)
1	VII-106	0.793/0.460×0.500	0.625
2	VII-125	0.918/0.550×0.500	0.750
3	VII-150	1.168/0.670×0.500	0.938
4	VII-175	1.388/0.825×0.500	1.125
5	VII-200	1.478/0.960×0.500	1.250
6	VII-225	1.720/1.060×0.500	1.375
7	VII-250	2.010/1.310×0.500	1.688
8	VII-375-1	3.072/1.700×0.750	2.250
9	VII-375-2	3.072/1.880×0.750	2.250

The above specifications can not cover your demands?

No problem. Please let us know what you need. Our design and production capability is capable to provide the custom service.

Send your inquiry details in the below for free sample , Click "Send" Now !

Features and FAQ

Product Features

1. High temperature resistance: the strength keeps stable up to 800℃ and it can even

momentarily used at 1200℃.

2. Wear resistance: due mainly to the unique inherent characteristics of the hard carbide

phase dispersed in a CoCr alloy matrix, it has exceptional wear and galling resistance.

3. Corrosion resistance: this exellent and lovely property allows this kind of material parts

to be used in oil&gas, slurry, acid liquid and any other mediums.

FAQ

Q1: Are you a manufacturer or a trading company?

A1: We are the manufacturer located in the north of China with 15 years producing experience and 10 years exporting experience.

Q2: What's the material of your valve seats?

A2: It's the CoCrW alloy, which is usually called stellite alloy.

Q3: What's the stellite alloy?

A3: It is a range of cobalt-chromium alloys designed for wear resistance, heat resistance and corrosion resistance.

Q4: What's the lead time of valve seats?

A4: 15-30 days depending on the order quantity. Immediate delivery with standard stocks.

Q5: What's the tolerance and surface finish we can control?

A5: As your demand.

Q6: How do we deliver the seats?

A6: Air or sea way. We are the VIP customer of DHL express, having good discounts.

Q7: MOQ?

A7: 1pc

Q8: Why I choose your company?

A8: We are professional. We are reliable. We are easy communication.

Your feedback is our best honor, please do not hesitate to give us your valuable feedback and we'll prove that we deserve your fully trust.

Our Services

Why Choose us?

-Our faith is that the quality and customer's demands are always the first important thing for everyone in our company.

1. 15 years in producing cobalt alloy parts and 10 years exporting experience.

2. Providing professional solutions.

3. Our own R&D team has professional backgroun and excellent innovation ability.

4. Drawing designed ability.

5. Customized producing.

6. Small quantity is acceptable.

7. Quick feedback and good English communication.
