Quality: | 100%tested; | Type: | Clutch Assembly; |
Application: | Auto Transmission Parts; | Car Model: | passenger car; |
Warranty: | 1 year; | Payment: | T/T; |
Car Make: | passenger car; | Place of Origin: | Henan China; |
Product Name: | engine + transmission assembly; | Port: | qingdao; |
Shipment: | Sea.Air.Express; | Brand Name: | chery; |
Payment Terms: | L/C,T/T; | Certification: | IATF16949; |
OE NO.: | SQR472; | Packing: | wooden Packing; |
Supply Ability: | 10000 Piece/Pieces per Month; | Size: | standard size; |
Packaging Detail: | wooden carton or as customer's request; | Model Number: | SQR472; |
Delivery time: | 15-30 Days; | MOQ: | 1 PC; |

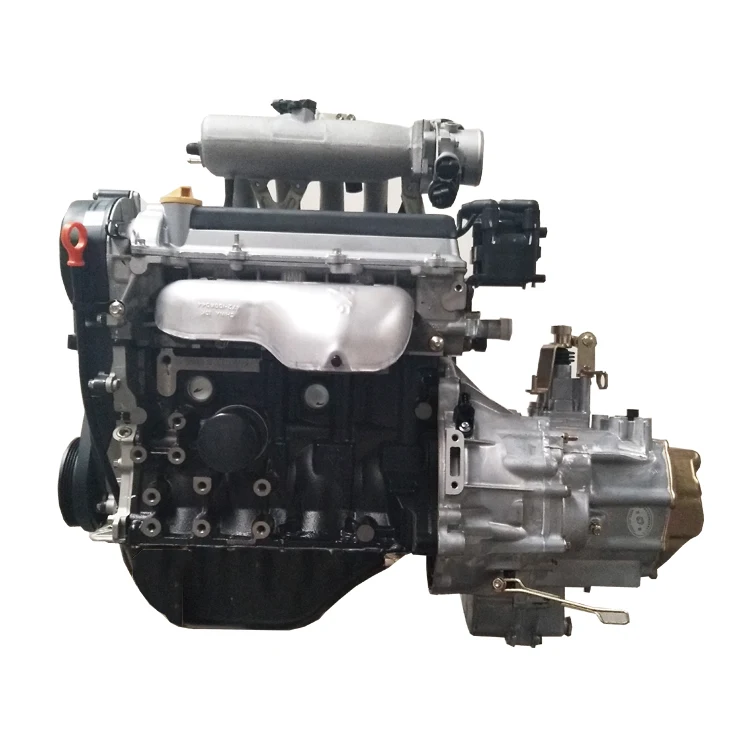

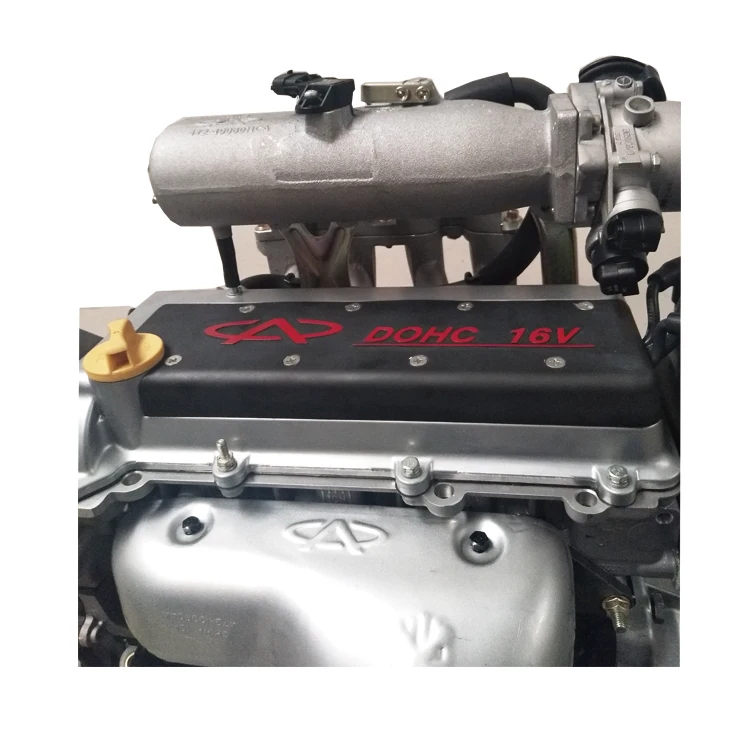

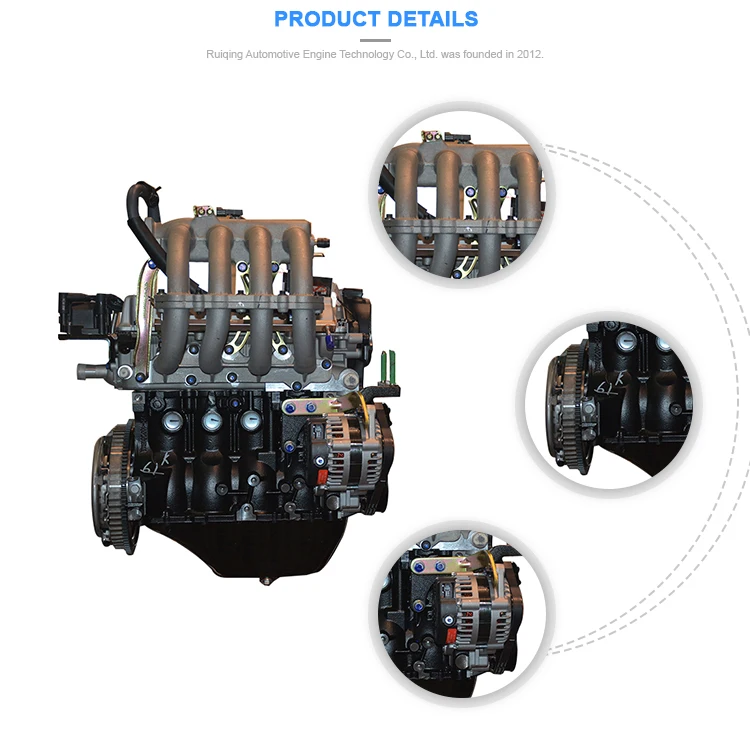

chery 1100cc SQR472 engine with manual transmission for passenger car
Application to:
SQR472 engine technical parameters:
Model | SQR472 | Compression Ratio | 9.5 |
Fuel Type | Gas/petrol | Rated Power(kw@r/min) | 75/5500 |
Displacement(L) | 1.083 | MAX Torque(N.m@r/min) | 90/3500-4500 |
Overall Dimension(mm) | 577X443X685 | Weight(kg) | 80 |
Emission | Euro 4 | Minimum Fuel Consumption Rate(g/kwh) | 275 |

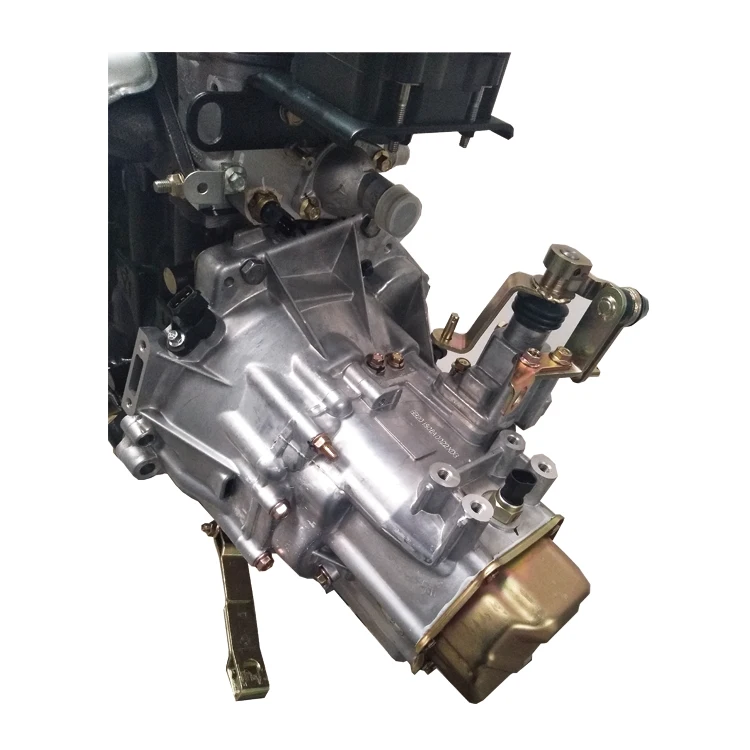

Match transmission technical parameters:
Final Gear Ratio | 5T07D1 | 5T07D3 | 5T07F |
Max input Torque(Nm) | 100 | 100 | 100 |
Final Gear Ratio | 4.412 | 4.412 | 5.133 |
L*W*H(mm) | 342*394*440 | 342*394*440 | 342*394*440 |
Weight(kg) | 25 | 25 | 25 |
Drive Form | FF | FF | FF |
Ratio | Ⅰ:3.818 Ⅱ:2.529 Ⅲ:1.727 :1.400 V:0.838 R:3.583 | Ⅰ:3.818 Ⅱ:2.158 Ⅲ:1.400 :1.029 V:0.838 R:3.583 | Ⅰ:3.818 Ⅱ:2.158 Ⅲ:1.400 :1.029 V:0.838 R:3.583 |
Remark | widthout differential |
