Model Number: | T Bolt Hose Clamp; | Standard or Nonstandard: | Standard; |
Supply Ability: | 3000000 Piece/Pieces per Month; | Material: | Stainless Steel; |
Usage: | Auto Pipe; | Payment Terms: | L/C,D/P,T/T,Western Union,MoneyGram; |
Delivery Detail: | 30 days; | Brand Name: | Ygclamp; |
Size: | Standard; | Packaging Detail: | plastic bag and carton; |
Place of Origin: | Tianjin China (Mainland); | CERTIFICATES: | ISO9001:2015; |
Warranty: | 2 Years; | Port: | Tianjin, China; |
OE NO.: | 73269090; | Band width: | 19mm; |
Car Make: | Universal Car; |

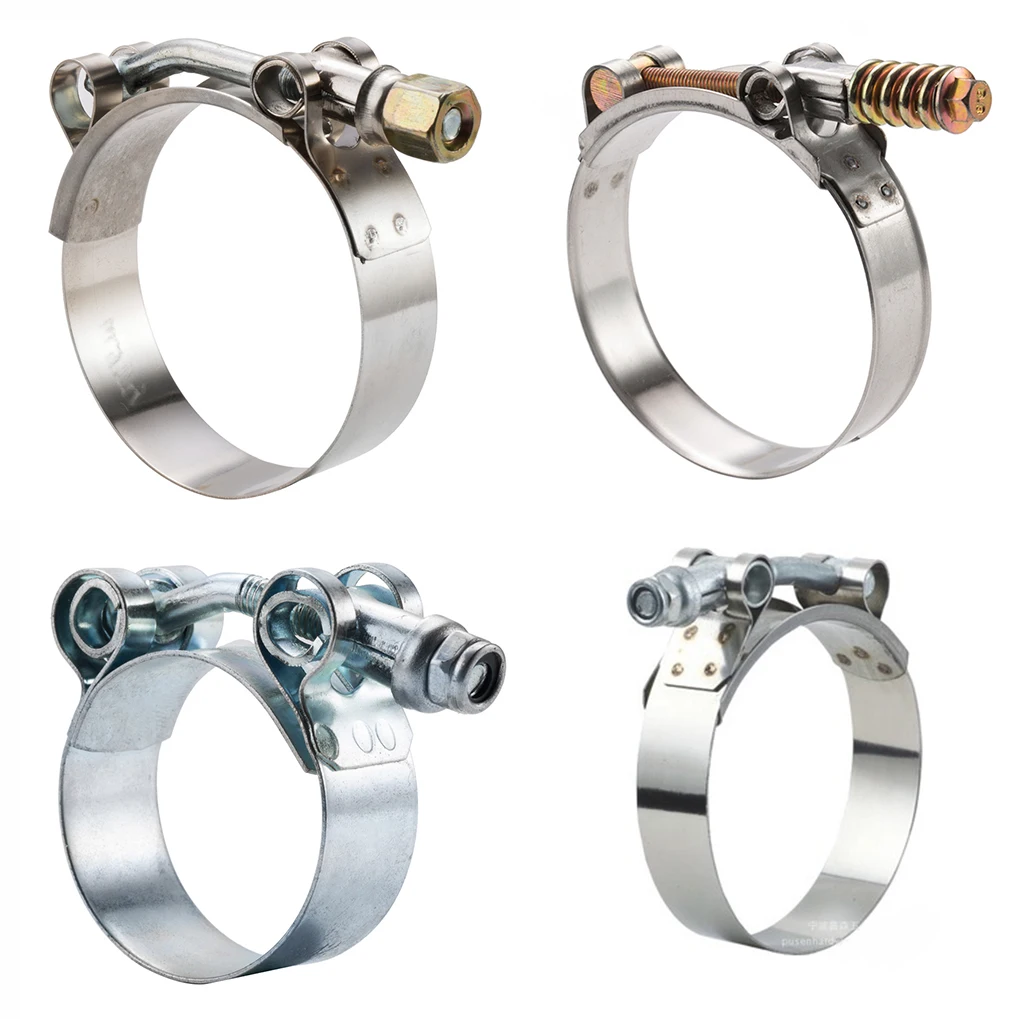

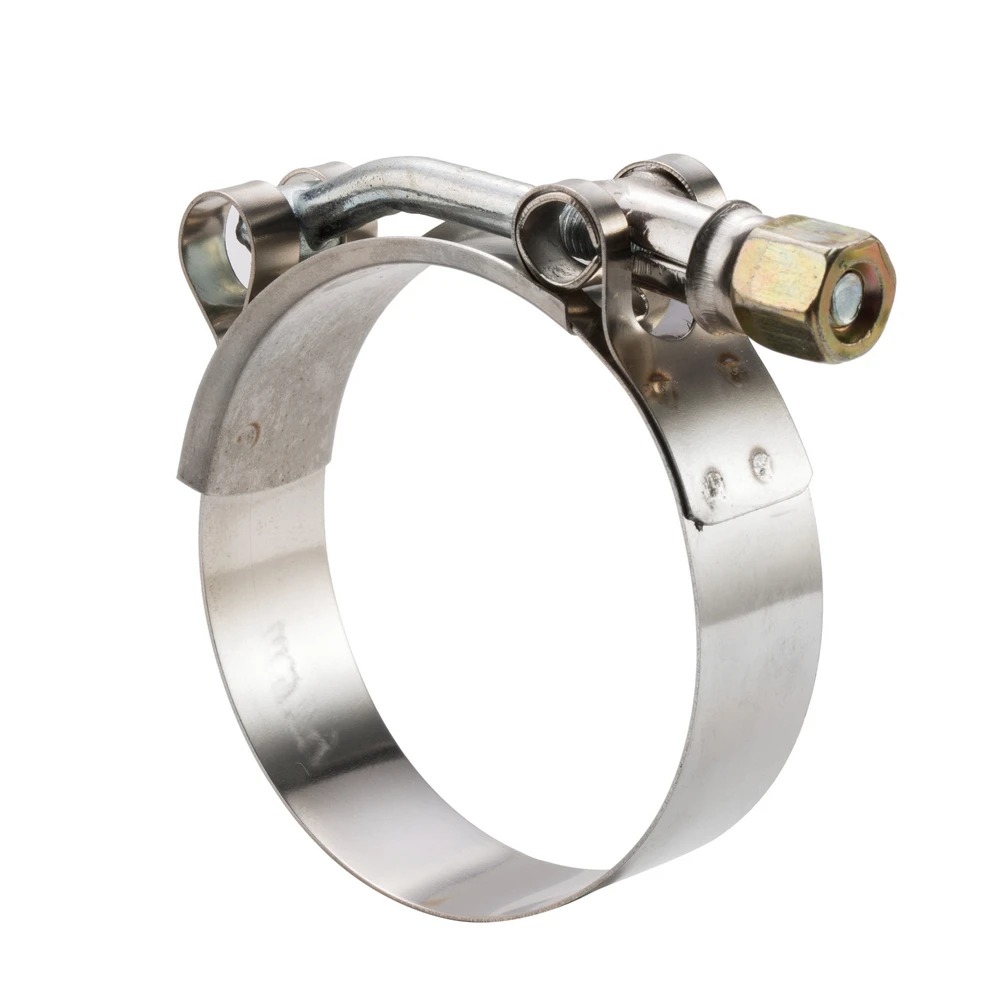

High pressure Stainless Steel T Bolt Hose Clamp
Size: 37-40 mm to all
Band WIdth: 19mm
Band Thickness: 0.60mm, 0.65mm
YG item# | Size | YG item# | Size | Suggestion Working Torque Nm |
W2 | mm | W4 | mm | Nm |
TCW2001 | 37 - 40 | TCW4001 | 37 - 40 | 9 |
TCW2002 | 43 - 49 | TCW4002 | 43 - 49 | 9 |
TCW2003 | 46 - 52 | TCW4003 | 46 - 52 | 9 |
TCW2004 | 51 - 57 | TCW4004 | 51 - 57 | 9 |
TCW2005 | 58 - 65 | TCW4005 | 58 - 65 | 9 |
TCW2006 | 64 - 72 | TCW4006 | 64 - 72 | 9 |
TCW2007 | 70 - 78 | TCW4007 | 70 - 78 | 9 |
TCW2008 | 76 - 84 | TCW4008 | 76 - 84 | 9 |
TCW2009 | 83 - 91 | TCW4009 | 83 - 91 | 9 |
TCW2010 | 89 - 97 | TCW4010 | 89 - 97 | 9 |
TCW2011 | 95 - 103 | TCW4011 | 95 - 103 | 9 |
TCW2012 | 102 - 110 | TCW4012 | 102 - 110 | 9 |
TCW2013 | 108 - 116 | TCW4013 | 108 - 116 | 9 |
TCW2014 | 114 - 122 | TCW4014 | 114 - 122 | 9 |
TCW2015 | 121 - 129 | TCW4015 | 121 - 129 | 9 |
TCW2016 | 127 - 135 | TCW4016 | 127 - 135 | 9 |
TCW2017 | 133 - 141 | TCW4017 | 133 - 141 | 9 |
TCW2018 | 140 - 148 | TCW4018 | 140 - 148 | 9 |
TCW2019 | 146 - 154 | TCW4019 | 146 - 154 | 9 |
TCW2020 | 152 - 160 | TCW4020 | 152 - 160 | 9 |
TCW2021 | 159 - 167 | TCW4021 | 159 - 167 | 9 |
TCW2022 | 131 - 139 | TCW4022 | 131 - 139 | 9 |
TCW2023 | 165 - 173 | TCW4023 | 165 - 173 | 9 |
TCW2024 | 171 - 179 | TCW4024 | 171 - 179 | 9 |
TCW2025 | 178 - 186 | TCW4025 | 178 - 186 | 9 |
Material:
Material | W1 | W2 | W4 | W5 |
Band | galvanized steel | 201, 301, 304 stainless steel | 201, 301, 304 stainless steel | 316 stainless steel |
Housing | galvanized steel | galvanized steel /stainless steel | 201, 301, 304 stainless steel | 316 stainless steel |
Screw | galvanized steel | galvanized steel | 201, 301, 304 stainless steel | 316 stainless steel |
The clamp offered comprise circular metal band that is suitable for holding soft hose onto rigid circular pipe as well as spigot of smaller diameter. We can make these clips available in stainless steel/galvanized/electro-plated construction finish as per the specific requirements of the customers. Some of its features include available in range of sizes, multiple grade options, high corrosion resistance, choice of customization and others.
1. Are you a manufacturer?
Tianjin Yonggu Hose Clamp Co., Ltd. directly professional factory, only focus on all kinds of Hose Clamps.
2. Where is your company located?
Our factory is located in Jinghai, Tianjin, the production base of Hose Clamp in China.
3. Can you offer free some samples?
Yes, normal size samples are free, freight will be collected from buyer's express account.
4. Can you produce according to samples or drawings?
Yes, we have efficient R&D department to develop new items according to customers' requirement.
5. Can you put our logo on the clamps and packages?
Yes, we can make your logo on the products and packages upon receipt of letter of permission.
6. Why your prices are higher compared with other competitors?
We are the power brand factory, we produce under ISO9001:2015 and our products are with CE certificate, meet the standard of EU environmental protection. Satisfying customers by improving the quality is the premise of our success, we offer full refund in case of bad quality.
7. What is your delivery time?
Usually 30 days, we are factory, no stock, even small orders need to be made production. But once guaranteed, the delivery time will be assured on time.
