TK101B motor vehicle gps tracking device

Supplier: Shenzhen Legevo Technology Co., Ltd.
Region: Guangdong, China
Contact: Ms. legevo GPS
Price: $13.85 / >=10 units
Min. Order: 10 units

Click here to contact

Product details

Package Type:	TK101B gps tracker 1.Box Size:12x8x3.5cm G/W:0.11kg per box 2.Carton size: 52x45x35cm 179units, G/W: 19.85KG;	Warranty:	12;
Dimension:	87.6 mm x 50.8 mm x 19.6 mm;	Weight:	111G;
Screen Size:	No Screen;	Use:	Vehicle/Motorcycle/bike tracking;
Package Preview:	https://sc01.alicdn.com/kf/HTB1BN3rU5rpK1RjSZFhq6xSdXXaW.jpg_640x640.jpg;	Single package size:	12X8X4 cm;
Place of Origin:	Guangdong China;	GPS chip:	Skytra/huaxun;
Use:	Motorcycle,AUTOMOTIVE;	Brand Name:	LEGEVO;
Backup battery:	300 mAh/3.7 V;	Model Number:	TK101B/GPS101B/TLT-2F;
Model Number:	TK101B/TK102;	GSM Module:	SIMCOM800;
Flash memory:	1M( store 10000 data);	Mini Bike GPS Tracker Warranty:	24 Months;
Selling Units:	Single item;	Type:	GPS Tracking device;
Single gross weight:	0.2 KG;

Product Overview

TK101B/GPS101B GPS Tracker

101B GPS Tracker has internal GPS and GSM antenna, as well as standard functions that external antenna trackers have.

1.real-time tracking

2. ACC detection

3.engine stop feature

4.Geo Fence

Its simplicity enables it appeal to majority of the target market.And it is cheap and cost-effective so many of us can afford to buy one piece.

DIM.	87.650.819.6mm	Voltage	DC 9V-54v
weight	111g	Battery	3.7v/300mAh
network	SMS,GPRS	LED indicator	red, blue,green
GSM band	850/900/1800/1900 MHz	Warranty	2 years
GPS Chip	Skytra/huaxun	operation temp.	-20-- +70
GSM module	sim800	Humidity	5%-95% non-condensing
gps sensitivity	-159dBm	Memory	1M
GPS accuracy	30m	GPS/GSM Antenna	Internal

motor vehicle gps tracking device Features:

1.GSM quad bank network
2.Position Tracking by SMS/GPRS
3. Get location by Call/SMS
---GPS+GSM positioning
---Real-time location query
---Track by time interval
--Track by distance
---Track by mobile phone
---Google Map link for location via SMS
4.Anti-theft
---remote vehicle fuel/ power cut off
---Geo-fence alarm
5.upgrade firmware by OTA

Detailed Images

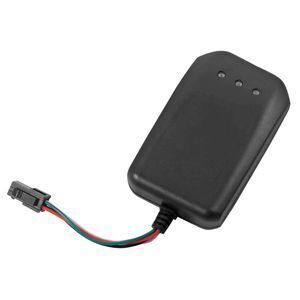

Front side

motor vehicle gps tracking device

High quality ABS casing

Back side

motor vehicle gps tracking device

1 internal GPS/GSM antenna.
2.Easy to operated the unit

inside Design

gps tracker for Fleet Management

1.wide volage 9V-54V
2.With flash memory

PCBA

gps tracker for Fleet Management

Use the highest 8 laminates.
use high quality sim card slot to make a good touch

Semi-finished Tracker

gps tracker for Fleet Management

slide left/right button

ACCESSORIES

motor vehicle gps tracking device

101B tracker with battery + power wire

Related Product

About Us

Legevo is one of the most reputed supplier manufacturing gps vehicle tracker in China. We are a highly advanced enterprise specializes in offering GPS based Fleet Management as well tracking software services, heavy vehicles,trucks,container,Asset, cars or battery operated vehicles.

We can manufacture GPS as per the special requirements of our clients. Established in 2008, Located in ShenZhen, Guang Dong, we enjoy convenient access to major transportation networks. Furthermore, all our products are manufactured with advanced equipment and strict QC procedures in order to ensure high quality. With stable and timely supply, credible quality and sincere service, our products sell well in both domestic and overseas markets.

In International Markets

Due to the advantages of the logistic and internet, Legevo has started its business in the international markets since 2010. Till Now Legevo has already build stable supply Chain in Asia, MiddleEast, South American. Africa, Eruope.

( India, Cambodia,Vietnam,Indonesia,Malaysia, Australian,Thailand, Singapore , Iran, Pakistan,Russia, United Kindom, Italy, Denmark,Turkey,Romania, Libya, Kenya, Spain, Columbia, Bolivia, Chile, Brazil, Mexico, Peru).

Honesty is Our Policy.
With Us, You will receive exceptional value and unparallel service!

SMT Line

gps tracker for Fleet Management

soldering electronic component with bare PCB

Inspection PCBA

gps tracker for Fleet Management

AOI Inspecition after soldering

Assembly Line

gps tracker for Fleet Management

PCBA---do firmware---Asembly

Repairman

gps tracker for Fleet Management

GSM module burnt out, change a new GSM module

inspection

gps tracker for Fleet Management

Final inspeciton, make sure all device work well before shipping

Warehouse

gps tracker for Fleet Management

Waiting for third -party for inspection

Packing & Delivery

Package box

motor vehicle gps tracking device

DELIVERY

motor vehicle gps tracking device

Our Service

1. Professional manufacturer, more competitive price and best service than trading companies.
2. Over 8 years OEM/ODM service.
3. Wide product range for your choice. We provide all kinds of GPS tracking devices for vehicles, motorcycles, trucks, buses, asset,Container.
4. Excellent Research & Development team , make it possible for us to supply professional solutions, quick support to meet with your special and complicated requirements in short time.
5. Easy to use Free online worldwide tracking platform in our server, you can track and monitor live data or view historical data totally freely in our web server. Tracking platform: www.h6gps.com account:user PW:123456

FAQ

1.How long have your company run on GPS vehicle tracker?
Over 10 years focusing on GPS vehicle tracker,3 years exporting experience.

2.Are your company a trading or a factory?
Factory and trade (we have our own factory.)

3,Which payment terms are you accept?
T/T, LC, Western Union,Paypal

4.After an order is placed, when to deliver?
depends on whether the products you buy has inventory. If we have inventory, generally we can arrange shipment after 2 to 3 days.If not, it will be decided by the time of the factory production schedule.

5.What about the cooperation process?
Confirm details of order, 30% deposit, Arrange inventory, pay the balance, shipment.

6. could you do OEM ?
Honestly, it depends on the order quantity and the season you place the order. MOQ is about 500pcs , then we can use your logo and do OEM

7. What is about guarantee?
A. All products have been 100% strictly Quality Checked in house before packing.
B. All products have been well packed before shipping.
C.The warranty on the products is 24 months.We will bear maintenance cost during warranty
