Model: | HHP/High Hold Power; | Design: | Delta Anchor; |
Certification: | CCS, BV, ABS ,DNV, GL,LR,NK,RINA Certificate; | Weight (kg): | 3001 - 6000kg; |
Packaging Detail: | Steel pallet or steel package; | Application: | Ships & Vessels; |
Supply Ability: | 1000 Ton/Tons per Month; | Weight: | 300KG to 100000KG; |
Payment Terms: | L/C,T/T,Western Union; | Port: | any port in China; |

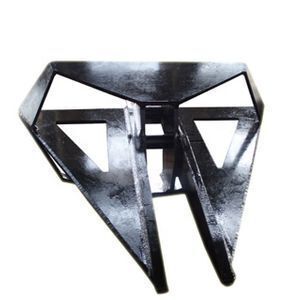

Marine Ship Boat 300KG to 100000KG High Holding Power HHP
Flipper Type Anchor
Flipper Delta anchor is widely used in the offshore and dredging projects, for its easy handling and rapid penetration in different soil conditions.Structured from high tensile steel and approved by all classifications, we are able to offer you the best Flipper Delta anchor

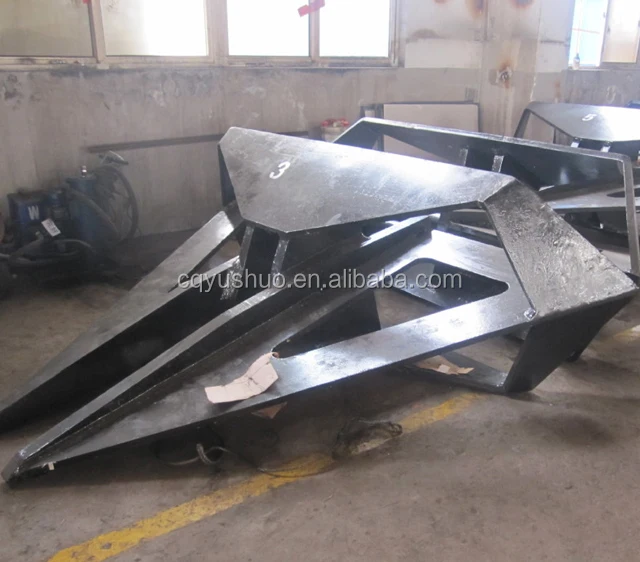

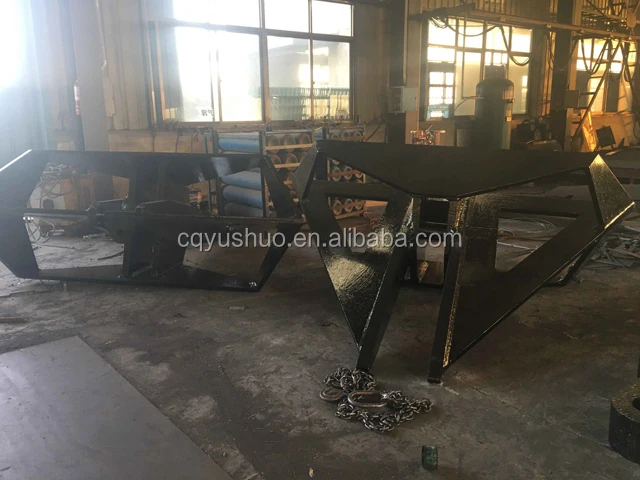

Flipper Type Delta High Holding Power Anchor
Weight: 56kg to 100000kg
Type: High Holding Power Anchor
Material: ZG200-450
Fishing: black painting or hot dip galvanized
Certificate: DNV-GL, BV, ABS, LRS, RINA, IRS, RS, CCS, KR, NK etc.

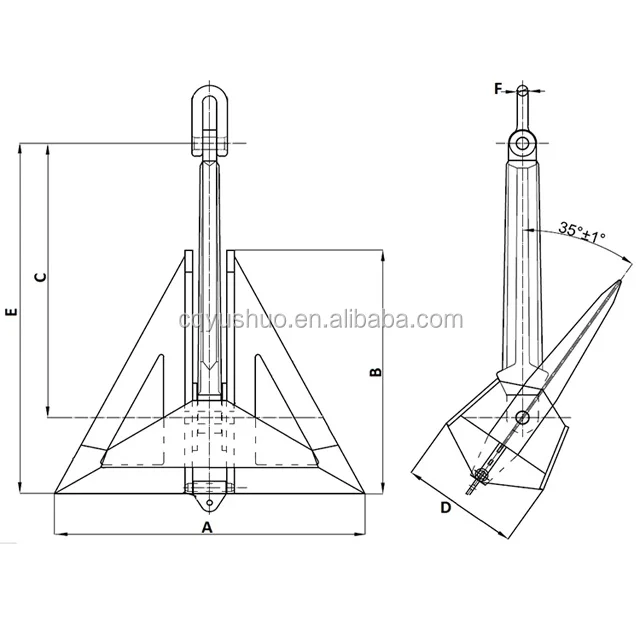

Nominal Weight | Size(mm) | |||||
(KG) | A | B | C | D | E | F |
300 | 1200 | 960 | 1080 | 457 | 1380 | 45 |
500 | 1500 | 1200 | 1350 | 571 | 1725 | 50 |
1000 | 1875 | 1500 | 1686 | 714 | 2155 | 62 |
1080 | 1915 | 1530 | 1686 | 722 | 2200 | 62 |
2000 | 2363 | 1890 | 2124 | 900 | 2715 | 82 |
3000 | 2700 | 2160 | 2430 | 1028 | 3105 | 90 |
4000 | 2975 | 2380 | 2676 | 1133 | 3420 | 100 |
5000 | 3250 | 2600 | 2922 | 1238 | 3735 | 110 |
7000 | 3575 | 2860 | 3216 | 1361 | 4100 | 117 |
7500 | 3650 | 2925 | 3290 | 1390 | 4210 | 117 |
8000 | 3730 | 2900 | 3360 | 1420 | 43000 | 130 |
9000 | 3950 | 3160 | 3555 | 1504 | 4543 | 135 |
10000 | 4100 | 3280 | 3690 | 1561 | 4715 | 140 |
12000 | 4490 | 3575 | 4030 | 1695 | 5320 | 145 |
13500 | 4670 | 3720 | 4195 | 1765 | 5535 | 150 |
15000 | 4845 | 3875 | 4355 | 1830 | 5735 | 150 |
18000 | 5140 | 4080 | 4610 | 1940 | 6080 | 160 |
20000 | 5330 | 4260 | 4790 | 2010 | 6310 | 170 |
22500 | 5490 | 4360 | 4905 | 2060 | 6470 | 180 |
25000 | 5740 | 4590 | 5160 | 2165 | 6795 | 195 |
30000 | 6100 | 4880 | 5486 | 2305 | 7225 | 195 |
35000 | 6424 | 5138 | 5775 | 2426 | 7605 | 205 |
40000 | 6715 | 5370 | 6036 | 2536 | 7948 | 210 |
45000 | 6986 | 5588 | 6184 | 2640 | 8270 | 220 |
50000 | 7230 | 5785 | 6500 | 2730 | 8560 | 225 |
55000 | 7470 | 5975 | 6715 | 2820 | 8840 | 230 |
60000 | 7690 | 6150 | 6910 | 2940 | 9100 | 240 |
65000 | 7900 | 6315 | 7100 | 2980 | 9350 | 245 |
70000 | 8095 | 6475 | 7275 | 3060 | 9580 | 250 |
75000 | 8235 | 6590 | 7405 | 3110 | 9750 | 255 |
80000 | 8460 | 6770 | 7610 | 3195 | 10020 | 260 |
85000 | 8625 | 6900 | 7750 | 3255 | 10210 | 265 |
90000 | 8800 | 7040 | 7910 | 3325 | 10420 | 270 |
95000 | 8960 | 7170 | 8055 | 3385 | 10610 | 280 |
100000 | 9110 | 7285 | 8190 | 3440 | 10780 | 280 |

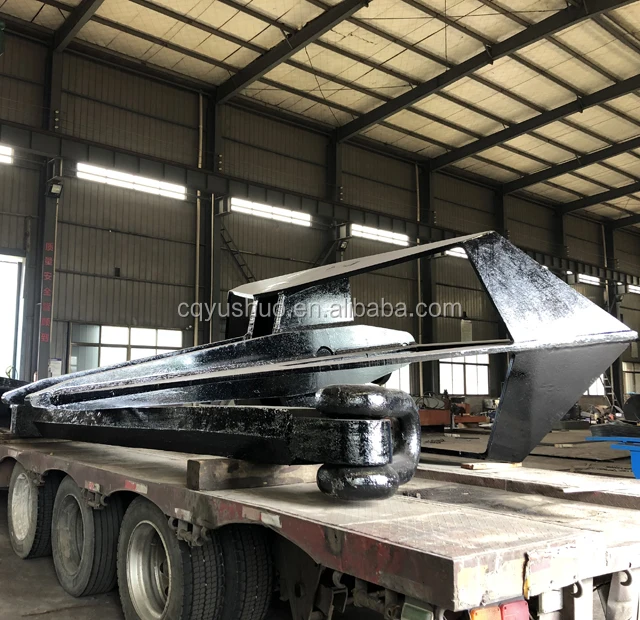

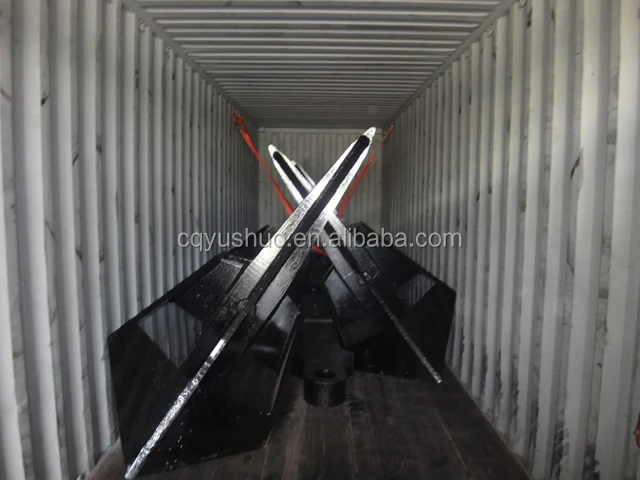

Small weight delta anchor will be packed with pallet, big weight ones will be nude loading into container.

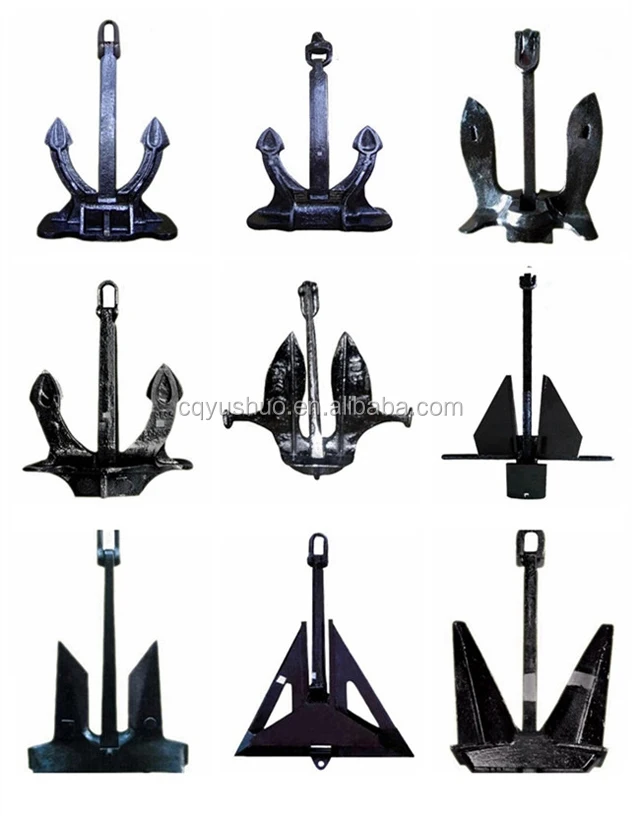

Produce Range for reference:
1. High Holding Power Delta Flipper Anchor(from 300KGS to 100000KGS)
2. High Holding Power Pool Anchor (From 20KGS to 30000KGS)
3. Other High Holding Power Anchor
4. Bruce Anchor(From 500KGS to 30000KGS)
5. High Holding Power Balanced Anchor(From 60KGS to 28875KGS)
6.DE Hong Anchor(From 200KGS to 15500KGS)
7. AC-14 Anchor(From 56KGS to 100000KGS)
8. Light Weight Anchor(From 2270KGS to 20000KGS)
9.Offdrill Anchor(From 227KGS to 31780KGS)
10. Danforth High Holding Power Anchor(From 60KGS to 25000KGS)
11.High Holding Power Matrosov Anchor(From 25KGS to 1500KGS)
12.Japan Stock Anchor(From 500KGS to 8000KGS)
13. Japan Stockless Anchor(From 180KGS to 46000KGS)
14.Hall Anchor Type A B C (From 40KGS to 46000KGS)
15.Single Fluke Anchor(From 75KGS to 25000KGS)
16. Baldt Stockless Anchor(From 200KGS to 50000KGS)
17.U.S.N. Stockless Anchor(From 300KGS to 30000KGS)
18. Spek Anchor(From 80KGS to 20000KGS)
19.Admiralty Anchor(From 50KGS to 10000KGS)
20. Stainless Steel Yacht Anchors
