11ft 16ft Drywall Installation Tools drywall panel lift construction tools hoist

Product details
Usage:Drywall Panel Hoist;Place of Origin:Zhejiang China;
Lift Speed:adjusted;Power Source:Hand Chain;
Power supply:Hand Chain;Wheel:3 Wheels;
Capacity:68KG;Packing:One Carton;
Applicable Industries:Building Material Shops,Machinery Repair Shops,Manufacturing Plant,Construction works ;Sling Type:Wire Rope;
Selling Units:Single item;Certification:CE;
Package Type:Each pieces per carton;Single gross weight:41 KG;
Product name:Wire Rope Pulling Hoist;After-sales Service Provided:Online support;
Single package size:130X50X17 cm;Standard Lifting Height:11ft 16ft;
Color:Customized;Surface treatment:powder coating;
Brand Name:KINRY;Warranty:1 Year;
Material:STEEL;Condition:New;
Package Preview:https://sc02.alicdn.com/kf/HTB1K_ICX.vrK1RjSszfq6xJNVXav.jpg_640x640.jpg,https://sc01.alicdn.com/kf/HTB1MVkCXZfrK1RkSmLyq6xGApXaR.jpg_640x640.jpg;NET WEIGHT:39 KG;



Product Description

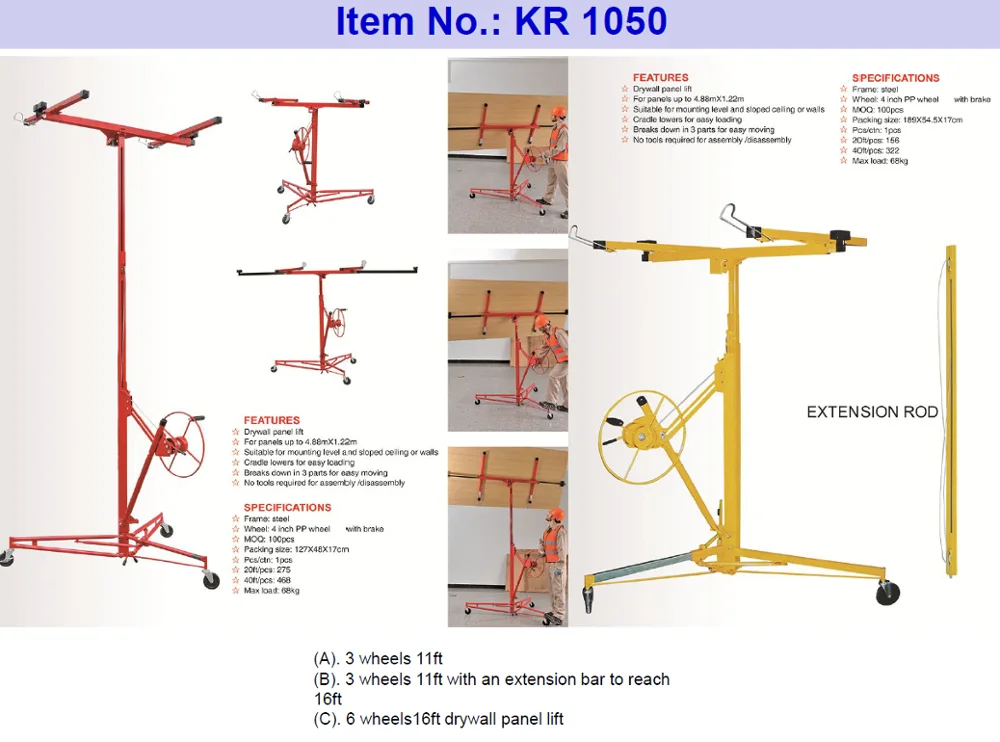

Drywall lift, 11ft and 16ft. Pls find the specification as below.

Item No.Product DescriptionPackaging

CBM(L*W*H) & GW/NW
KR 1050 (11FT) --4" WHEELMaximum load : 68kg
Plate support tilt 60 and swivel360 horizontally; automatic brake
Plate support  expandable with3  positions
Extensions  retracted
spacing of 54 CM
spacing of 84 CM
Load Height: 93.5 CM
Max working height: 3.35 M
Minimum working height: 1.38m
Arm length: 90CM + support hook
Maximum opening of extensions: 2.94M
Minimum opening of  extensions: 1.25 M
3 wheels for steering 10CM (4“)in diameter with brake
NET Weight: 39KGS, GROSS WEIGHT:41KGS  EACH PC /CTN
Each
pc/ctn
1.3*0.5*0.17M/0.111CBM, N.W./G.W..:39/41kgs
KR 1050 (11FT) --5" WHEELIf the castor in 5", the NET AND GROSS weight will be 40/42KGS
KR 1050 (11FT) --6FT  extension bar  6FT  extension bar
when you want to get 4.7M, you could use this bar to replace the 4FT bar in the 11ft body
Each pc/ctn187*10*6.5CM/0.0122CBM, N.G.:7.2/7.8KGS

KR 1050A (16FT)  Maximum load : 68kg
Plate support tilt 60 and swivel360 horizontally; automatic brake
Plate support  expandable with3  positions
Extensions  retracted
spacing of 54 CM
spacing of 84 CM
Load Height: 93.5 CM
Max working height: 3.35 M
Minimum working height: 1.38m
Arm length: 90CM + support hook
Maximum opening of extensions: 2.94M
Minimum opening of  extensions: 1.25 M
3 wheels for steering 10CM (4“)in diameter with brake
NET Weight: 39KGS, GROSS WEIGHT:41KGS  EACH PC /CTN
Each
pc/ctn
1.3*.5*.17CM/0.111CBM, N.G.:39/41kgs









Packaging & Shipping

  This item is 1 pcs in one brown carton or color carton, it is according to your reuqirements. We can accept LCL, FCL, also below MOQ to mix in one container.

Our Services

 You can mix some items in one 20ft container or 40 hq container with each item 50pcs or 100 pcs, which is below our MOQ for the first order, to text our quality and your market.
