LS-T430 Automatic rigid box corner pasting machine

Supplier: Dongguan Longxingjian Intelligent Equipment Co., Ltd.
Region: Guangdong, China
Contact: Ms Lyla Lyu
Price: $1590.00 /set
Min. Order: 1 set

Click here to contact

Product details

Packaging Detail:	with film, paper, wooden case;	Power:	2kw;
Automatic Grade:	Automatic;	Supply Ability:	30 Set/Sets per Month;
Weight:	920Kg;	Place of Origin:	Guangdong China (Mainland);
Motor power:	2kw;	Voltage:	380v;
Voltage:	380V;	Driven Type:	Electric;
Brand Name:	Longxingsheng;	Min box size:	L80W65H15mm;
Port:	Shen Zhen;	Condition:	New;
After-sales Service Provided:	Engineers available to service machinery overseas;	Model Number:	LS-T430;
Delivery Detail:	15 days after received full payment;	Type:	Boxing Machine;
Dimension(LWH):	165013001960mm;	Air supply:	10L/min 0.6mpa;
Application:	Apparel,Beverage,Chemical,Commodity,Food,Machinery & Hardware,Medical,Textiles;	Color:	white&gray;
Machine dimension:	L1650W1300H1960mm;	Machine weight:	920kg;
Certification:	CE ISO;	Max box size:	L430W350H120mm;
Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram;	Packaging Material:	Paper,Wood;
Type:	LS-T430;	Product name:	LS-T430 Automatic rigid box corner pasting machine;
Packaging Type:	Case;

Product Description

Product Application

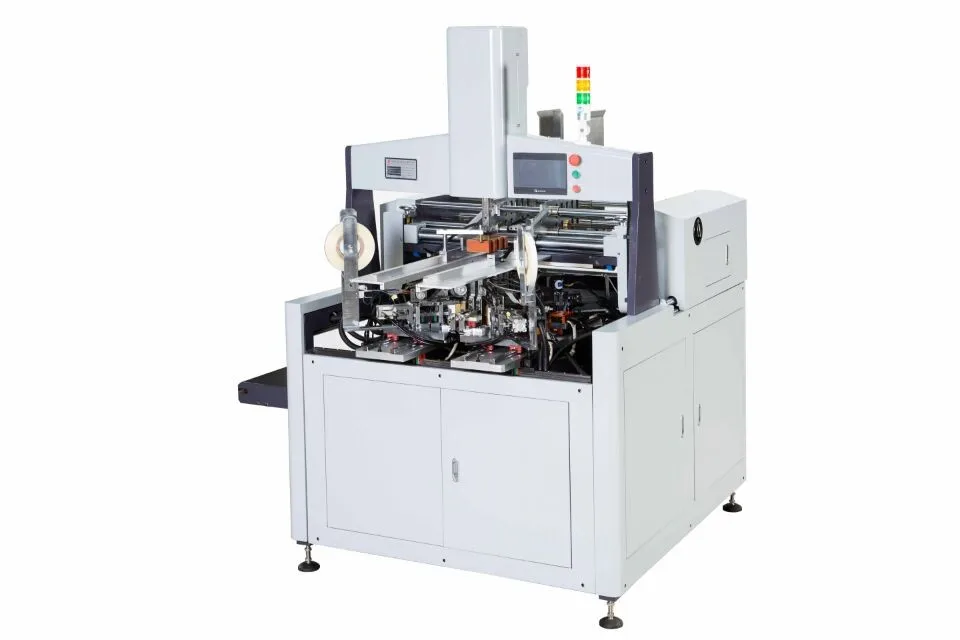

LS-T430 Automatic rigid box corner pasting machine
LS-T430 Automatic rigid box corner pasting machine is newly improved based on the experience of older corner pasting machine LS-T500. We have applied the belt feeding in the cardboard feeding instead of the air suction feeding. After the constant upgrade and development of this machine, the function of the machine is very stable. It can pastes four corners at one time. The machine is controled by PLC. There has a non-stop cardboard feeding device. The belt will take the cardboard to the mold.Then mold takes the cardboard to pasting position. And the convey belt deliver the box out of machine. The machine is easy changing and fast job setting. It also has stopping function after finished cardboard and hot-melt tape finshed alarm function. Thereby, the products are of great quality.

Specification about LS-T430 Automatic rigid box corner pasting machine
Type		LS-T430
Max box size		L430W350H120mm
Min box size		L80W65H15mm
Motor power/Voltage		2Kw
Air supply		10L/min 0.6mpa
Machine dimension		L1650W1300H1960mm
Weight of machine		920Kg

Main Features

1) Human-computer interface/PLC control

2) Non-stop cardboard pile shifting device

3) Easy changing and fast job setting

4) Automatic tape feeding cutting four corner taping

5) Tape finished alarm and auto stopping function

6) Automatic cardboard feeding

Certifications

Detailed Images

Machine Parts

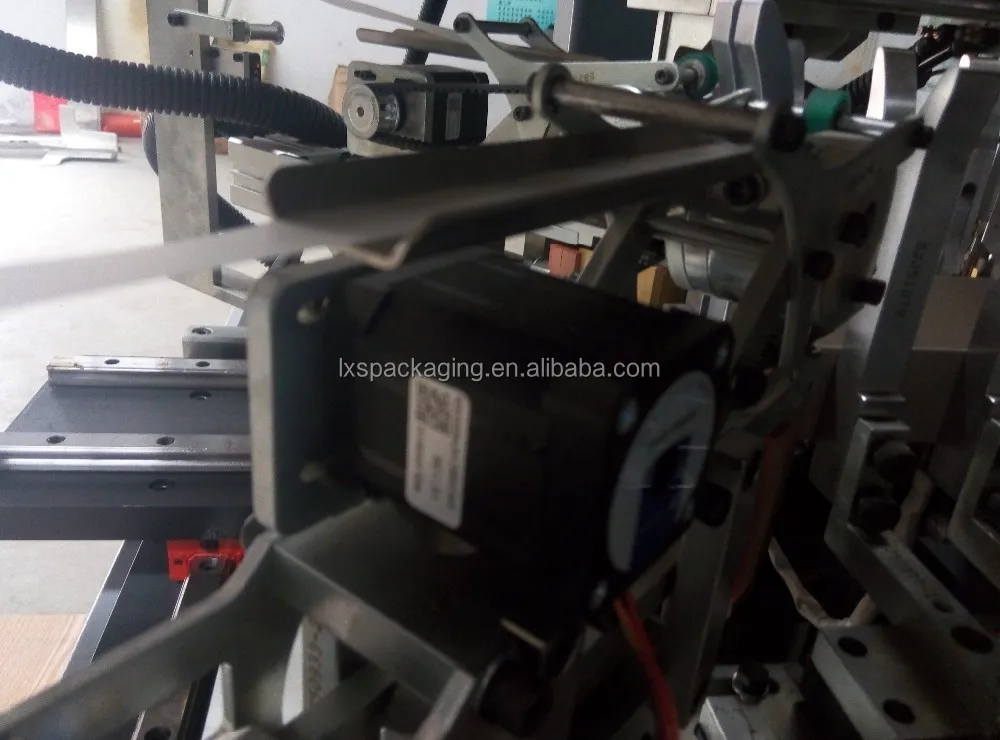

Name: Belt feeding device

Original: China

This belt feeding device can save labour to feeding the cardboard automatically. It can feeding the cardboard with Non-stop.

Main Features

Name: Special tape feeding slots
Original: China
The Slots is shaped at one time. It is durable and smooth. So that it won`t block the tape.

Machine Parts

Name: Electric part
Original: Germany
Germany famous szelaiduk, durable and easy operating.

Main Features

Name: Guilding rails
Original: China Tai wan
Thickness at 35mm. Strong and durable.
