6.5hp power tiller garden machine agriculture machinery equipment

Click here to contact

Product details

Engine type:	Gasoline,4 stroke,air cooled;	Tilling Width:	300-950mm;
Wheel size:	350-4/350-6;	Power Type:	Gasoline;
Drive mode:	Gear Drived;	Supply Ability:	3500 Set/Sets per Month;
Condition:	New;	Weight:	55kg;
Place of Origin:	Henan;	Port:	Qingdao/Shanghai/Ningbo;
Start mode:	Manual/Electric;	Tilling Depth:	150-280mm;
Dimension(LWH):	1500850900(mm);	Use:	farming and land cultivation;
Fuel Tank Capacty:	2.5L/1.8L;	Applicable Industries:	Farms,Orchards, tea plantations, greenhouses;
After-sales Service Provided:	Free spare parts,Online support,Video technical support,Field maintenance and repair service;	Usage:	tilling,ditching,ridging,weeding,seeding...;
Color:	Red;	Warranty:	1 Year;
Type:	Farm Cultivator;	Payment Terms:	T/T;
Certification:	ISO9001;	Packaging Detail:	Export carton case with iron frame inside and plastic film outside, water prevent packing.;
Product Name:	6.5hp power tiller garden machine agriculture machinery equipment;

6.5hp power tiller garden machine agriculture machinery equipment

Product Description

1. Large-displacement vertical axis engine, three-stage air filter, full gear drive.

2. The volume is small, the weight is light, and the structure is compact.

3. Oil bath automatic clutch, continuously variable transmission, simple operation, strong and durable.

4. The patented design quickly folds the protective plate, and the replacement of equipment, and the ridge operation is easy and convenient.

5. The integral nodular iron gearbox has high strength and strong durability.

6. The handlebar can be adjusted to meet different processing requirement.

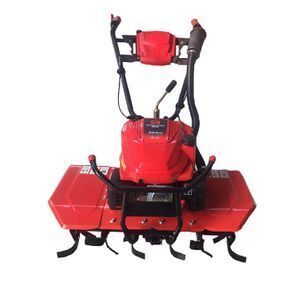

Product Show

Start modeMatched power	1P70FA,4.1KW(6.5HP)	Diameter of the rotary blade	300mm
Weight	55kg	Engine brand	DUCAR Power
Overall dimensions *(lengthwidthheight)*	1500650820(mm)	Overall dimensions *(lengthwidthheight)(PACKAGE)*	570mm470mm700mm
Engine type	Gasoline, 4 stroke,air cooled	Displacement	196cc/ 224cc
Economical Fuel consumption	0.8L /700m²	Handlebar	Reduce shake system with spring(adjustable)
Productivity	700-1000m²/ hour	Max Power Output HP (kw)/rpm	6.5(4.1)/ 3600
Tilling depth	150-280 mm	Clutch	Centrifugal clutch, Dry type
Tilling width	300-950 mm	Gear shift	Stepless
Operating speed	0.5-1.3km/h	Wheel size	350-6
Tread	350mm	Axis Inner diameter	23mm
Rotary blade speed	RPM150/180	Operate method	Walking behind
Carburetor choke	Included	20GP	85 sets
Electric start	Optional	40GP/HQ	200 sets
Power transmission	Full gear	Start method	Manual/ Electric start
Function	Tilling/ Weeding/ Ditching/ Ridging/ Seeding/Spraying/Mulch lay ing	Mainly working area	Greenhouse/ Garden/ Paddy field/ Orchard/ Mountain/ Terraced field/ Tea field/ Vegetable field/ Strawberry field/ Cassava.....
