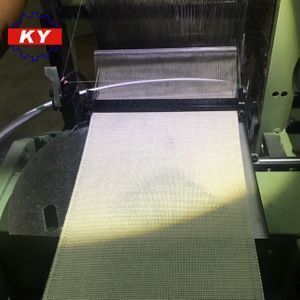

KY high speed needle loom medical gauze bandage making machine textile

Click here to contact

Product details

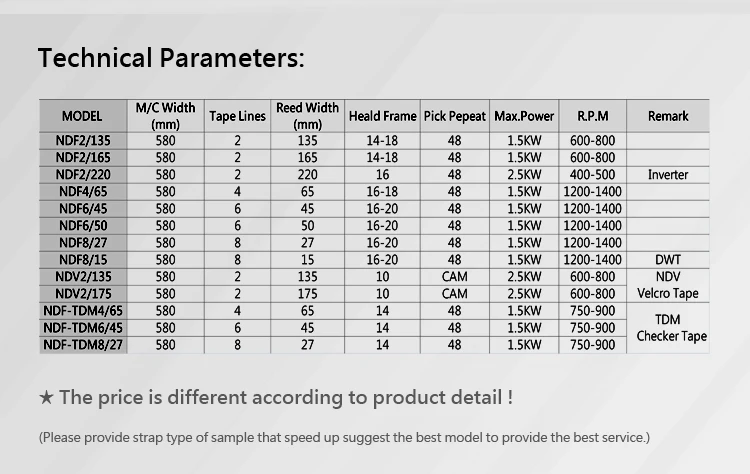

Product Name:	KY high speed needle loom medical gauze bandage making machine textile;	Heald Frame:	14-18pcs;
Condition:	New;	After-sales Service Provided:	Engineers available to service machinery overseas;
Weight:	650kg~700kg;	Dimension(LWH):	138~154cm90cm202cm;
Port:	Keelung / Taoyuan / Shanghai / Shenzhen Port;	Production Capacity:	According to the strap style;
Payment Terms:	L/C,T/T;	Power(W):	1.5KW / 2.5KW;
Warranty:	Free warranty for 1 year;	Application:	Hook Loop Bandage Curtains;
Type:	Shuttle Loom;	After-sales Service Provided:	Free spare parts,Video technical support,Online support,Field installation, commissioning and training,Field maintenance and repair service;
Pick Pepeat:	48;	Brand Name:	KY Kyang Yhe;
Packaging Detail:	Transparent bag + stretch film + wooden case for KY high speed needle loom medical gauze bandage making machine textile;	Supply Ability:	250 Set/Sets per Month KY high speed needle loom medical gauze bandage making machine;
R.P.M:	600-800;	Place of Origin:	Taiwan, China;
Certification:	CE;

Product Description

NDF Needle Loom Series

Newly design stand and side plate provide strong stability of the machine which increased the speed and the production capacity.
By using the common size shedding lever, it can reduced the working pressure and noise of the machine, it can also increase the machine stability and life time.
By moving the shedding frame forward 10mm, it can increase the height of the shedding frame for producing thicker tape, it can also shorten the time of adjustment and improve the efficiency.
The cover of the machine is made by ABS material and a front cover are added to meet the international CE standard.
The tension spring of the frame has change to covered design to increase the tension and the life time of the spring as well as the life time of the shedding frame and the machine.
The dropper sensor has changed to the micro relay to increase the sensitive of the dropper.
The yarn feeder's plate has redesign to steel spring, it will be more smoothly for the yarn passes at high speed.

Related Products

Packaging & Shipping

FAQ

Q1:	Do you have your own factory or trading company?
A1:	We have our own factory and trading department .
Q2:	Where is your factory?
A2:	We have three factories as follows:
	Taiwan - KYANG YHE DELICATE MACHINE CO., LTD.
	Shanghai- KWANG JIN MACHINERY TECHNOLOGY (SHANGHAI) CO., LTD
	Dongguan- PENG YUAN INDUSTRIAL CO., LTD
Q3:	Does the DKY, CKY is our branch it?
A3:	NO.
	Kyang yhe (KY) is well known brand in the field of textile in Aisa, KY machine is popular but it has been copied mostly, so we particular clarify here.
Q4:	About the quality, how do you control in your factory?
A4:	Kyang Yhe (KY) carefully selects prime part suppliers for quality assurance. We promise to keep improving every tiny aspect in our process to present superior machines and service to our clients.
Q5:	How does your service in oversea?
A5:	We set agents/distribution in overseas, if you have any questions, please contact the us in head office in Taiwan – Kyang Yhe Trading Co., Ltd., we’ll inform the regional agency to contact with you for the best service.
Q6:	Can you tailored to customer requirements?
A6:	Yes. Kyang Yhe (KY) can provide customized design according to customer needs under the MOQ.
Q7:	How long is the warranty period?
A7:	We offer one year warranty, including spare parts are given free replacement; electrical products within 3 months of free replacement or repair.
