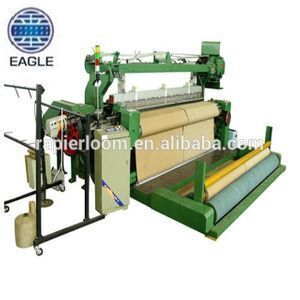

jute fabric weaving loom jute weaving machine

Supplier: Weifang Xinlu Textile Machinery Co., Ltd.
Region: Shandong, China
Contact: Mr hongwei ding
Price: $4600.00 / >=6 sets
Min. Order: 6 sets

Click here to contact

Product details

Warp beam dia:	Standard 600mm;	Type:	Rapier Loom;
Warranty:	1year;	Reed width:	150,180, 200, 230, 280, 330 , 360cm;
Condition:	New;	Application:	Cloth Fabrics;
Payment Terms:	L/C,T/T;	Brand Name:	EAGLE;
Dimension(LWH):	450250260cm;	Ratate speed:	160--250rpm;
Power(W):	0.8--1.3kw;	Weft selection:	4 - 6 color mechanical dobby weft selector;
Certification:	ISO9001-2008;	Weft insertion:	160 - 180 weft /min picked by left and right rapier band and head.;
Pattern design:	Pattern card design;	Place of Origin:	Shandong China (Mainland);
Supply Ability:	3000 Set/Sets per Year;	Port:	qingdao;
Model Number:	GA798;	Delivery Detail:	Payment within 30 working days after shipment;
Weight:	1.8~2.0 MTs.;	cloth roller:	outside type;
After-sales Service Provided:	Overseas service center available;	Packaging Detail:	Container, the wooden pallet packaging;
electronic control:	action electronic control;

Product Description

JUTE FABRIC WEAVING LOOM JUTE WEAVING MACHINE

Features Humanized control and operation system

With materials of cotton fiber, natural fiber, artificial fiber and decorative yarn (e.g. cotton, polyester, silk, wool, acrylic, rayons, nylon and fancy yarns), GA798 Flexible Fabrics Rapier Loom is mainly used to weave them into light, medium and heavy plain satin checks fabrics of 20-800g/sqm, such as decoration cloth, window screen, colorful cloths, flax cloth, cotton cloth, chemical fibre cloth, suitings and shirting fabrics etc. In addition, we achieved varied weft density weaving, and weft density is controllable 5~46 picks/cm.

Loom characteristics: stable operation and easy maintenance, low noise, beautiful exterior, humanized control and operation system, fast reactive permanent super motor with low power consumption, good comprehensive performance ensure the safety and stabilization of the system.

Main Specification

Model Number	Eagle GA798 Flexible Fabrics Rapier Loom
Reed width (cm)	150,180, 200, 230, 280, 330, 360.
Rotation speed	Design speed 160~250rpm.
Weft insertion	160-180 weft/min picked by left and right rapier band and head.
Warp beam dia.	Standard 600mm.
Cloth roll dia.	300mm, can match with big rolling cloth mechanism.
Weft feeder	FDP electronic weft accumulator.
Driving control	Rated 0.8~1.3kw main motor power, 3-phase line, 380v, 50hz.
Beat-up motion	Crankshaftweft insertion beating-up.
Lubrication	Oiling pump, automatic oil for dobby.
Electric circuit	Standard modularization design, LED displays working condition.
Weft selection	4-6 color mechanical dobby weft selector.
Pattern design	Pattern card design.
Yarn range	Spun yarns: 500tex (1.2Ne)~5tex (120Ne). Filament yarns: 10dte(9td)~1650dte(1500Td). Yarn count: 12-32S.
Shedding motion	8-12 pieces heddle frame, mechanical dobby with max. 20 shafts automatic shedding type, can match with big jacquard.
Let-off motion	Semi positive type mechanical let-off system controlled by feeder roller through linkages ensuring uniform warp beam tension.
Take-up motion	Continuous gapless take-up, adjustable according to weft density of the cloth by pick wheels.
Selvage device	Mechanical selvage cutter, Leno selvedge. Temple: ring type copper cylinder with pin.
Machine drive	V-belt direct machine drive, brake by electromagnetic clutch.
Stop motion	Warp yarn: separate electric automatic warp stop motions;Weft yarn: high-sensitivity piezoelectricity detector control automatic stop. Stop display: 4-colour multi-function indication lamps.
Electronic control	Micro-computer functional automatic control system with memory cards, convenient and easy button operation, instant adjustment.
Size and weight	450250260cm³, 1.8~2.0 MTs.

Company Information

Weifang Xinlu Textile Machinery Co., Ltd., founded in 1978, belonged to original Chinese Ministry of Textile Industry, is a private enterprise specialized in the R&D, production and marketing service as a whole of modern textile machineries. Up to nowadays we have developed into one of china’s biggest manufacturers and suppliers. with a scale of annual output 3000 set of rapier looms ,shuttle looms, and annual export capacity 1000 sets looms of all kinds.

Based on the strong technology and production capacity, we have successfully developed GA798B and A738 series of terry towel rapier loom. the advanced CNC servomotor Control Cam Loop Raising, Second Weft Halt and servo control system are our biggest highlights among numerous brands of towel rapier loom in China, and it also representing the highest level in China in the industry..

We have been supplying our modern textile machinery to worldwide textiles industries and got high praise from our customers from South Asia, Middle Asia, Middle East, South America and Africa, etc. With the unremitting efforts our “EAGLE” brand series textiles machines are gradually becoming popular brand products in the world. In addition, we also provide best after sale services e.g. installation, commissioning, technical training, upgrade and parts supply to meet our customers’ requirements.

“High quality, reasonable price and good after-sales service” is our marketing principle. We promise our customers to make the highest economic benefit through the lowest investment in the competitive world market.

Product catalog

Loom Model	Reed Width(CM)	Shedding Motion		Fabrics
GA798 cloth Fabrics Rapier Loom	150, 180, 200, 230, 280, 330, 360.	Mechanical Dobby; Mechanical, Electronic Jacquard		Terry Towel, Terry Cloth, Towel Blanket, etc.
GA798B Terry towel Rapier Loom	180, 200, 230, 260, 280.	Mechanical Dobby; Mechanical, Electronic Jacquard		Terry Towel, Terry Cloth, Towel Blanket, etc.
GA798W PP/PE Fabric Rapier Loom	200, 250, 280.	Mechanical Dobby;		Protective Screening, Sunshade Net, Plastic Woven Bag, etc
Old Type Shuttle Looms
GA615 Series Shuttle Loom	100~280	Tappet Dobby	For All Fabrics
GA615K Shuttle Loom	230~280		For Bed Sheet
GA615B Shuttle Loom	180~280		For Terry towel
GA798M Tappet Rapier Loom	180~360	Tappet	For Plain Cloth

The Name	EAGLE
Country of origin	Weifang in shandong province, China (mainland)
The packing	Suitable for container transportation pallet packaging carton and metal framework
Minimum order quantity	4 sets of rapier machine, 20 sets of shuttle loom
The delivery way	By sea or railway transport containers
Warranty period	With 1 year warranty
After-sales service	Provide engineers overseas installation, commissioning services;The local agent service
