Large Industria Greenhouse Cooling Systems Roof Exhaust Fan

Product details
Place of Origin:Jiangsu China;Type:Axial Flow Fan;
Packaging Detail:shipping package;Supply Ability:1000 Piece/Pieces per Week;
Port:shanghai/Tianjin;Warranty:3 years;
Payment Terms:L/C,T/T,Western Union;After-sales Service Provided:Video technical support;
Applicable Industries:Farms;After-sales Service Provided:Engineers available to service machinery overseas;
Size:1380*1380*400mm;Mounting:Roof Fan;
Blade Material:Cast Iron;

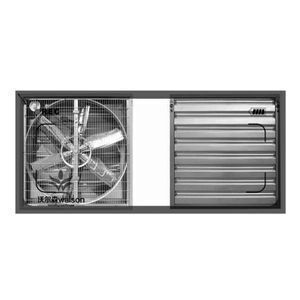

Large Industria Greenhouse Cooling Systems Roof Exhaust Fan



 Details:

1, Frame:  frames are made of hot dip galvanized sheet, frame thickness 1.0mm,. Galvanizing layer 180g/square meters.

2, Blade:  6 pieces, material 430/304 stainless steel.

3, Impeller: casting aluminum alloy impeller.

4, bearing of impeller: permanently sealed bearing, size 633313.

5, Collector: galvanized sheet, thickness 1.0mm.

6, Blade tip clearance: 25mm, mirror face.

7, Protecting mesh : plastic sprayed steel wire, thickness 2.8mm.

8, Electrical motor:  aluminum alloy frame motor, 380V/220/415V, 1.1KW/0.75KW(1.5HP/1HP), 50HZ/60HZ, 3PH/Single Phase, 4-pole speed, 1410r/m, IP55, class F, efficiency 90%, top/foot mounted,

9, Motor bearing: cast iron.

10, Belt: B-belt and A-belt (Made-in-China and Japan brand Mitsuboshi).

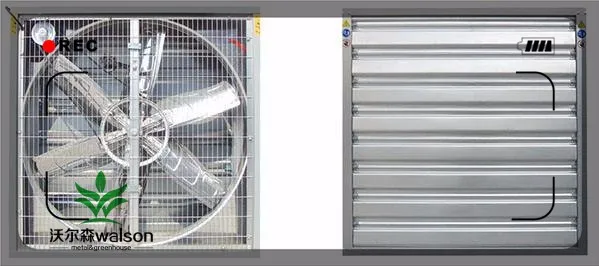

11, Shutters: galvanized board, 0.8 mm thickness while the middle piece thickness 1.0mm. Galvanizing layer, 120g/square meter.

12, Opening system: centrifugal push-push open device.

13, Rivets: aluminum alloy and stainless steel rivets.



Parameters:





Model

specifications

Diameter

blades- mm

Blades

rotational

speed- rpm

Motor

rotational

speed- rpm

Airflow

m3/h

Total

pressure

-Pa

Noise

decibels

Import

power

- W

Rated

voltage

- V

High

 mm

Width

 mm

Thick

 mm

EOF(d)-1000

900

438

1400

35000

57

≤65

750

380

1000

1000

450

EOF(d)-1100

1000

438

1400

38000

57

≤65

750

380

1100

1100

450

EOF(d)-1380

1250

437

1400

40000

57

≤65

1100

380

1380

1380

450

EOF(d)-1530

1400

325

1400

55800

60

≤65

1500

380

1530

1530

450



FAQ

1.When can I get the price?

Within 24 hours after we receive inquiry.If you are urgent to get the price,please contact me directly.

2.How can I get a window opener sample to check your quality?

Once price is confirmed,you can inquire for samples to check our quality.

3.Can you accept our own design,logo and pattern for window opner packing?

Yes.We can produce the box with your design,logo and pattern.

4.Are you manufacture or trading company?

We are the professional greenhouse manufacture,we can supply you all the products you need.
