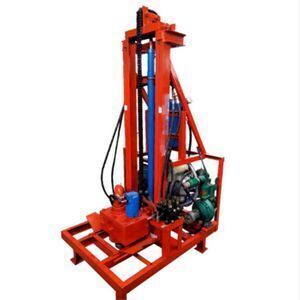

100m deep Portable Diesel Hydraulic Water Well Rotary Drilling Rig /Borehole Water Well Drilling Machine With electric start

Product details
Certification:ISO;Drilling diameter:60-300mm;
Packaging Detail:Plywood case packages;Applicable Industries:Building Material Shops,Machinery Repair Shops,Farms,Energy & Mining;
Weight:900KGS;Drilling Pipe:1.5m/piece;
Type:Rotary Drilling Rig;Brand Name:NONE;
After-sales Service Provided:Video technical support,Free spare parts,Online support,Field installation, commissioning and training,Field maintenance and repair service;Voltage:380/220V;
Drilling Depth:100m;Warranty:1 YEAR;
Power Type:Diesel;Power:8HP Diesel;
Drilling Pipes:100 meters long Or customized by customer;Dimension(L*W*H):900*900*2500MM;
Port:Tianjin Port,China;Payment Terms:L/C,T/T,Western Union,MoneyGram;
Usage:Water Well;Place of Origin:Hebei China;
Drilling Bits:60mm,100mm,150mm,200mm or customized by customer;Drilling Rods:Middle 41mm and max with 60mm;
Condition:New;Spindle Speed:90r/min;
Max Drilling Depth:200m if no hard rocks;Supply Ability:3 Set/Sets per Month;

Hydraulic Model Small Portable Water Well Drilling Machine For Sale





Product Description



Applications And Features :



1 This small drilling machine occupies a small area ( 1square meters), a height of 2.5 meters stand, the job can be installed in less than ten minutes.can be used at indoor and outdoor site.



2 The well pipe is fully enclosed, shallow layer has no leakage, can ensure the health and safety of drinking water.



3 Research and Develop by ourself,it breaks difficult problem that easy to drill and hard to disassemble.



4 All the lifting, loading and unloading drill pipe is mechanized, time-saving, labor-saving and easy to operate.



5 Advantages :

5.1 One person operation, save labor cost.

5.2 With universal wheel,convenient to transport.

5.3 Economical,can be owned by common families.

5.4 Light weight, simple operation,very easy to install.





Specifications



ModelMT-100DMD
PrinciplePositive Cycle
Hydraulic Power8HP-Diesel Engine or 9HP Gasoline Engine
Water Pump Power4.5HP-Gasoline Engine
Max Drilling Depth200m if no rocks underground
Max Drilling Diameter300mm
Drilling Pipe60mm diameter, 1.5m/piece
Drilling BitAlloy Steel For Soilone small bit (100mm) +one big bit (150-300mm)
PDC For Rocksdiameter should be less than 250mm
Other Parts For One Completed Machine  High pressure water pump-1 unit
High pressure water pipe-6m
Tools,seat,oil seal,English manual,Etc
100m drilling rods(max 60mm)

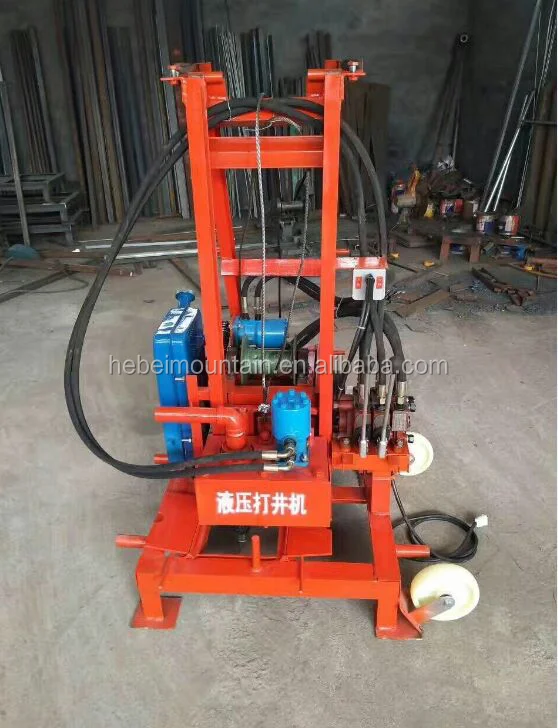

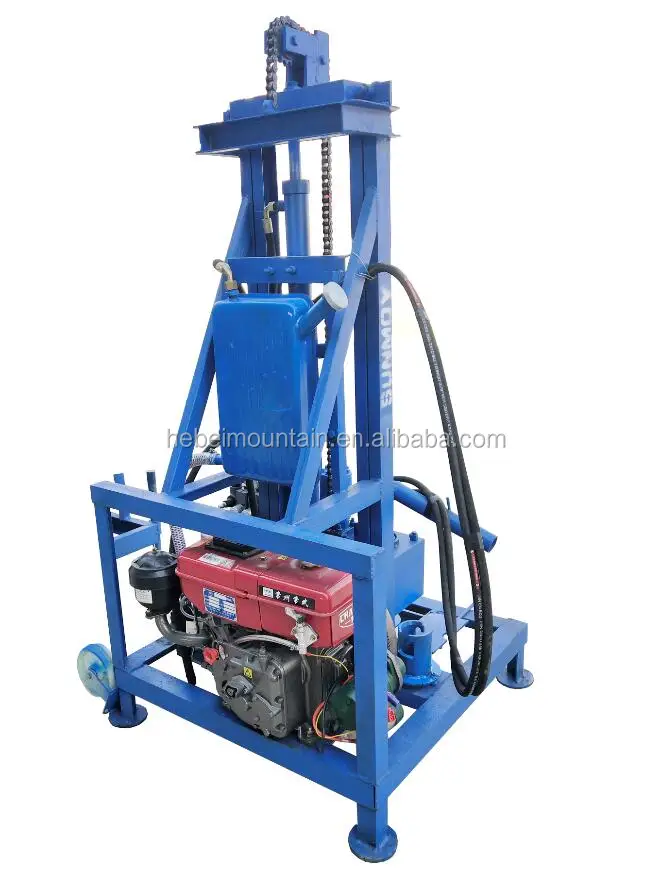

Detail photo



 8HP Diesel  Hydraulic water well Drilling Rig

























15HP Diesel  Hydraulic water well Drilling Rig







20HP Diesel  Hydraulic water well Drilling Rig









Electric water well Drilling Rig







High pressure gasoline water pump
