high speed 3D Arm type CX1520 Water Jet Cutting machine for cutting stainless steel, aluminium sheet and marble

Click here to contact

Product details

Rated Power:	3KW;	Applicable Industries:	Hotels,Machinery Repair Shops,Farms,Retail,Construction works ,Advertising Company;
Certification:	CE,ISO9001,SGS;	Stainless steel:	60mm;
Dimension(LWH):	1500mm2000mm350mm;	Condition:	New;
MOQ:	1 SET;	Supply Ability:	100 Set/Sets per Month;
Control system:	Water jet system America Match 3;	Port:	qingdao;
Warranty:	1 Year;	After-sales Service Provided:	Engineers available to service machinery overseas;
After-sales Service Provided:	Online support;	Brand Name:	Superstar;
Reposition precision:	±0.1mm;	Payment Terms:	L/C,T/T;
Weight (KG):	1000;	Working size:	1500mm2000mm350mm;
Key Selling Points:	Energy saving;	Place of Origin:	Shandong China;
Cutting precision:	±0.25mm/TBI Graphics input;	Voltage:	380V 50HZ;
Packaging Detail:	Fumigation-free wooden case;

Specifications

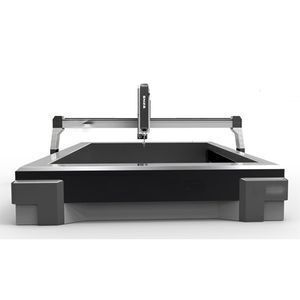

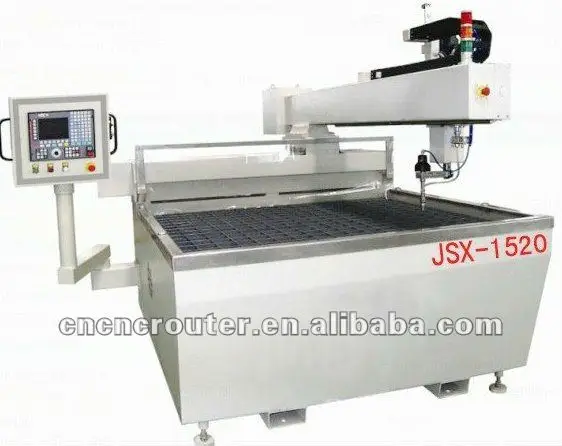

high speed 3D Arm type

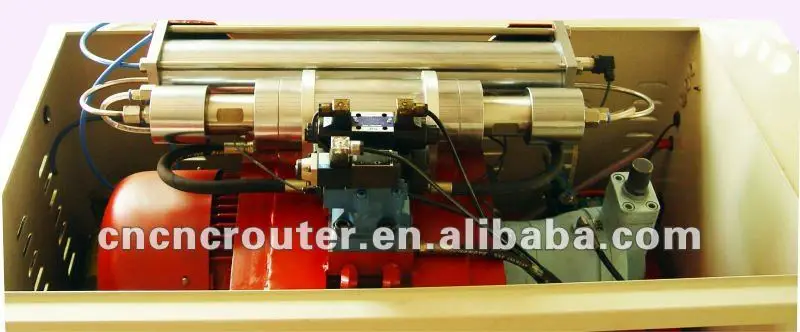

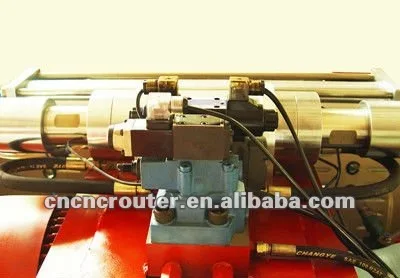

1.stable pressure 440Mpa within 24 hours
2. high speed, cutting thick materials

high speed 3D Arm type

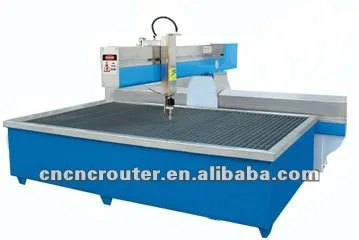

high speed 3D Gantry type

Technical specifications

Model	CX-1520
Machine size	2000mm*2500mm
Working size	1500mm2000mm3 high speed 3D Arm type 50mm
Control system	Water jet system America Match 3
Reposition precision	±0.1mm
Cutting precision	±0.25mm/TBI Graphics input

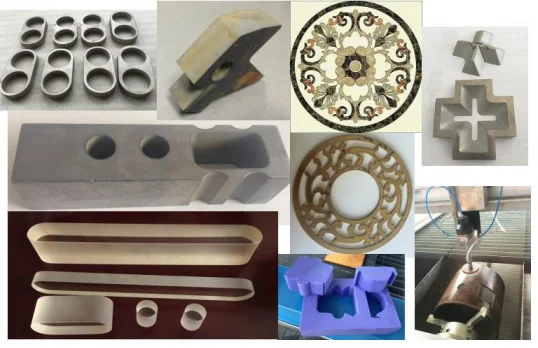

The cutting speed (mm/min)and cutting thickness

material	thickness (mm)	Cutting speed(mm/min) cutting pressure(300MPa)	Cutting speed(mm/min) cutting pressure(380MPa)
marble	20	300	400
marble	30	200	300
granite	20	250	300
granite	30	150	200
Vetrified tiles	10	600	850
Vetrified tiles	28	120	200
glass	6	800	1000
	10	600	800
	19	350	500
laminated glass	21	400	600
foam	20	5000	7000
	50	2000	3000
	80	1500	2000
Car interior (carpet)	3	2000	2700
Stainless steel	1	800	1100
	3	400	600
	6	140	200
	10	110	170
	16	80	110
	20	50	80
	30	25	40
	55		20
	65		10
copper	3	600	1000
copper	5	450	700
aluminium	10	300	450
	20	180	240
	30	100	150
