Strong Corrosion resistance Carbide Oil Spray Nozzle PDC Drill Bit Nozzle

Product details
Place of Origin:Sichuan China;Type:Drill Bit nozzle;
Commodity Name:tungsten carbide spray nozzle;Certificate:ISO9001:2008;
Condition:New;Applicable Industries:Energy & Mining;
Supply Ability:1000000 Piece/Pieces per Week provide OEM service for carbide bit nozzle products;Application:Petroleum, Chemical and Mechanic Idustry;
Size:Cusotmized;Brand Name:Minjiang;
Surface:Finished;Product name:Carbide Oil Spray Nozzle PDC Drill Bit Nozzle;
Packaging Detail:foam + small box + carton;Payment Terms:L/C,D/A,D/P,T/T,Western Union,MoneyGram;
Port:Shanghai/Shenzhen;Usage:Oil Field Drilling Bit parts;
Grade:YG8/YG15/YG6X/YG6/YG20;Material:Tungsten Carbide WC+Co;
Product Description

Factory Price Carbide Oil Spray Nozzle PDC Drill Bit Nozzle

The cemented carbide nozzles will be used mainly to PDC drill bits and cone roller bits for flushing, cooling and lubricating drill bit tips and cleaning stone chips in the well bottom with drilling liquid in the working conditions of high pressure,vibration,sand and slurry impacting during oil and natural gas prospecting.

Tungsten Carbide Nozzles for mining and oil field drilling bits

Production Process

Milling--Proportioning as required--Wet grinding--Dry--Granulation--Press--Sinter--Inspection--Package


Specifications

there are two examples as below showed, we also accept your inquiry with drawings.

Model
MJP-CSA-2512
Model
MJP-CSA-2012
Outer Diameter
25.21
Outer Diameter
20.44
Total Length
34.80
Total Length
30.61
Thread
1-12UNF-2A
Thread
3/4-12UFN-A-2A
Small Outer Diameter
22.2
Small Outer Diameter
16.1
Length
15.6
Length
11.56
Endoporus
15.8
Endoporus
12.6
Transition Arc(J)
12.5
Transition Arc(J)
12.7
Transition Arc(K)
12.5
Transition Arc(K)
12.7

Cinquefoil Alloy Nozzle

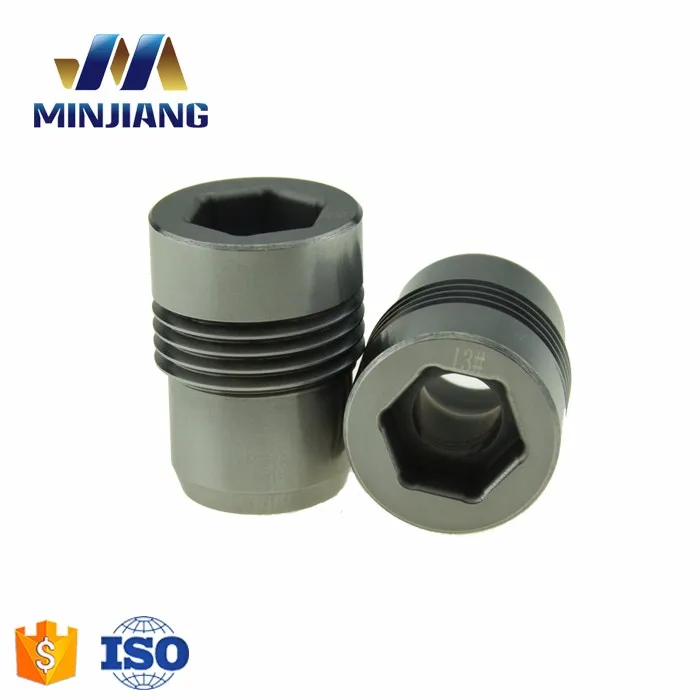

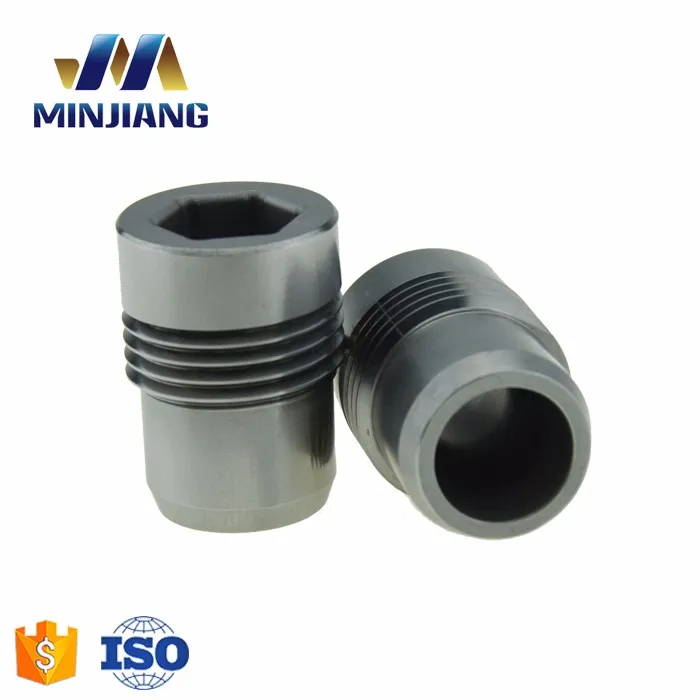

External Hexagon Alloy Nozzle

Cross Slot Alloy Nozzle

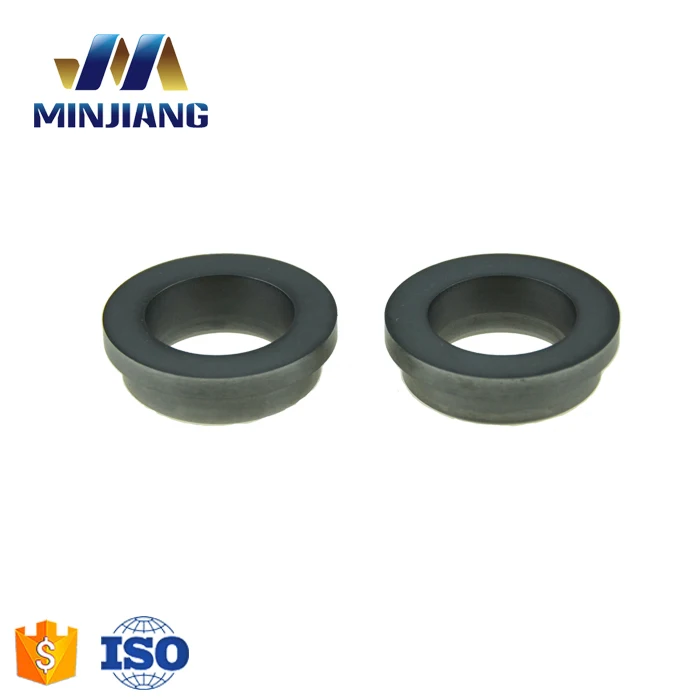

Roller Bit Alloy Nozzle

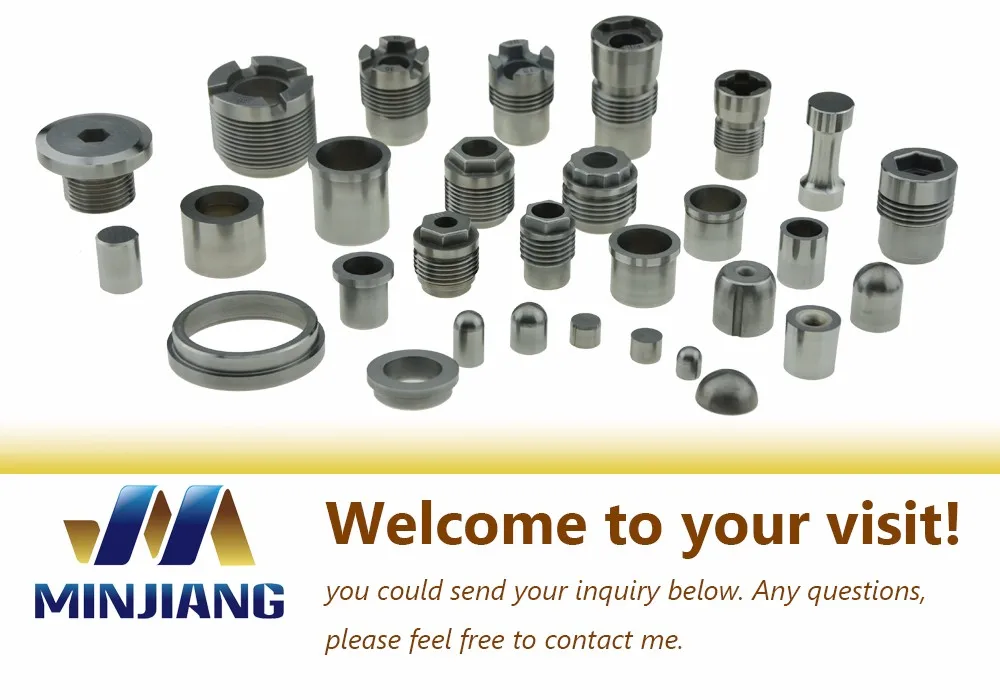

Products Show

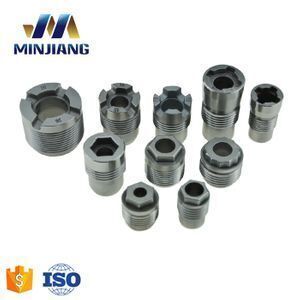

Tungsten carbide spray nozzle

In China, we are the first manufacturer to produce carbide bit nozzle.
Our Company

Chengdu Minjiang Precision Cutting Tool Co.,Ltd is a professional carbide bit nozzle manufacturer in China, founded in 1992 , has accumulated plenty of experience in designing and producing cemented carbide inserts, bit nozzles, wear-resisting parts, tungsten rods and plates,and established a professional, efficient workforce and technical team. We have many OEM products supplied for our domestic and overseas customers. Our corporation has been approved by ISO9001-2000 quality system, and had a complete production line and inspection system, such as NC blade blanks and wear part blanks, NC chaser grinder for CNC, optical profile grinder, special thread grinder, Swiss periphery grinder of high precision, surface grinder of high precision, universal tool grinder, universal tool maker's microscope, OVH and other production and inspection equipments.

Let's find out:

1. We are the first manufacturer to produce threaded           nozzles in China.
2. A number of technical backbone workers have worked     for more than ten years in the company.
3. We have professional team and advanced equipment.

4. All these to ensure our professional and sincere                 service.

Packing & Delivery

Packing Details  : Packing Carbide Bit nozzle , use plastic foam, solid plastic box and carton.

Our Certifications

Best carbide bit nozzle

Our carbide bit nozzle products have the advantages of high hardness, corrosion resistance,wear resistance and good toughness.  Our factory accepts non-standard customized products, the price varies with the raw material, the cost and the order quantity.

Customer Photo


                                  2016 Russian

Since 1992, we began our business in cemented carbide products market. We  provide high quality and precision cutting tools, specialised in carbide tungsten nozzles,wear-resisting parts,cemented carbide inserts and other cemented carbide un-standard products.



2017 Hannover Messe

Our company possesses advanced production line and inspection system, a production line of CNC blade blanks and wear part blanks, as well as CNC chaser grinder, optical profile grinder, special thread grinder, Swiss periphery grinder of high precision.



                     2017 Russian MIOGE

We persist in being an excellent manufacturer requires innovation, honesty and practicality. We will continuously try our best to meet the various needs of the customers.

FAQ

Q: Are you trading company or manufacturer ?

A: We are factory.

Q: How long is your delivery time?

A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.

Q: Do you provide samples ? is it free or extra ?

A: Yes, we could offer the sample for free charge but do not pay the cost of freight.

Q: What is your terms of payment ?

A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
If you have another question, pls feel free to contact us as below:
