Size: | PG63; | Brand Name: | OEM; |
Material: | Nylon; | Supply Ability: | 10000 Piece/Pieces per Week; |
Applicable to cable: | 42-50 mm; | Brand Name: | OEM; |
Port: | NINGBO; | Material: | Plastic; |
Packaging: | 5 pieces /bag; | Place of Origin: | Zhejiang China; |
Protection Level: | IP68; | Payment Terms: | L/C,D/A,D/P,T/T; |
Certificate: | CE/SGS; | Thread length: | 60 mm; |
Packaging Detail: | Customized Packing: Header card packing, Blister with card packing, Double blister packing, Canister packing, Other packing can be supplied according customers request; | Model Number: | JM-CG01813; |
Color of cable gland: | Black Grey, Please inquiring; |
PRODUCT PRESENTATION:

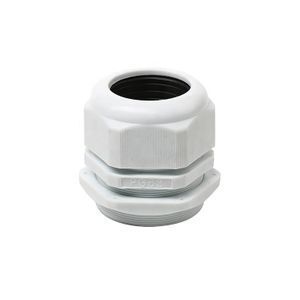

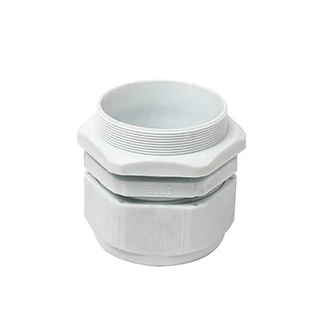

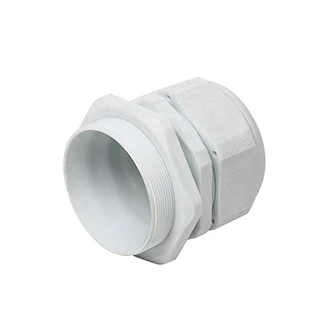

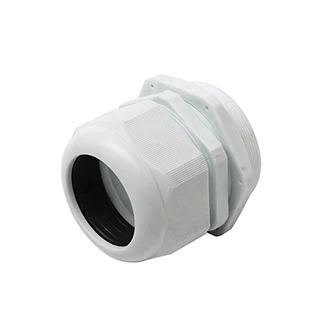

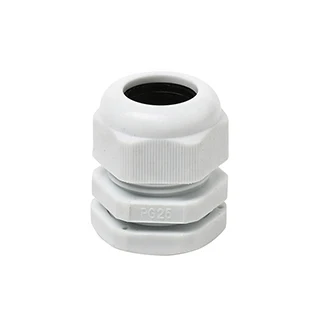

Nylon Cable Gland | ||
Applicable to cable | 42-50mm | |
Thread length | 60mm | |
Temperature range : | Stat , mini -40℃ max 100℃ . short-term 120℃ | |
Color | Black(RAL9005),gray(RAL7035)other color available upon request | |
Protection degree : | Using suitable o-sealings within the Clamping range its protection degree can reach Ip67-5 | |
Properties : | V2(UL94) free of halogen,phosphor and cadmium ROHS UV-resistance , ageing-resistance certificates | |

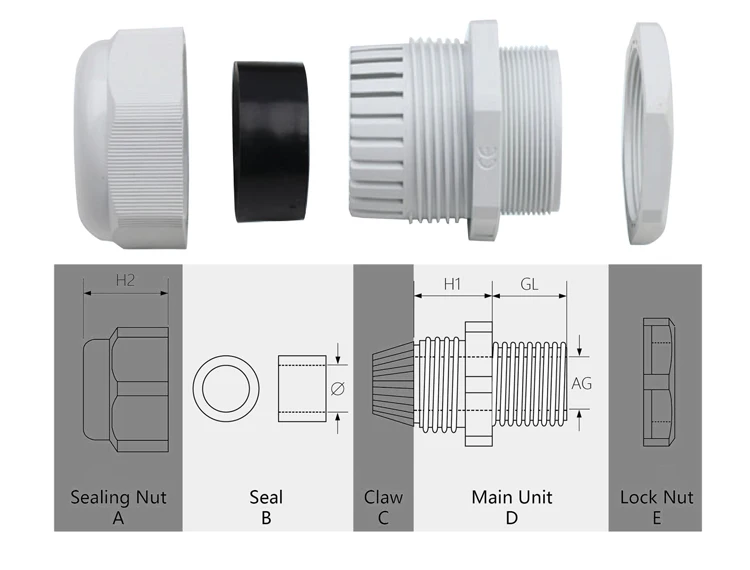

Material: | UL approved Nylon PA66(Flammability UL 94v-2) for A.C.E parts,(Accept to make flammability UL 94V-0);EPDM rubber for B.D parts |
FEATURES | |
1. Connecting more smoothly &closely with | |
2. Protecting connection safe by using improved protective jacket | |
3. The claws and seals of excellent design | |
4. Can hold cable firmly and have wider cable range. | |
5. Rwsistant to salt water,weak acid,alcohol,oil,grease and common solvency. |

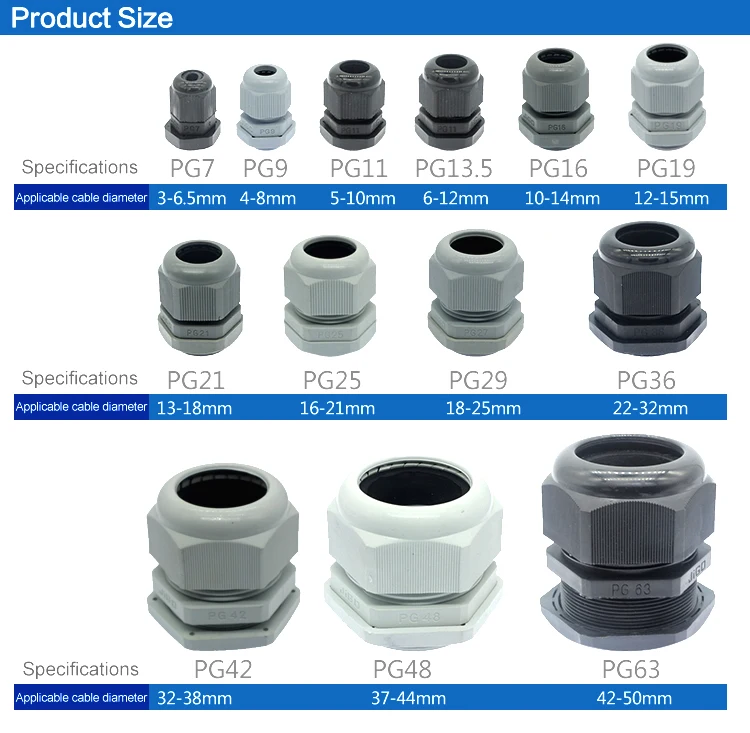

Product Model | Applicable to cable | H(mm) | GL(mm) | Wrench diameter | Packaging |
PG 7 | 3-6.5 | 22 | 8 | 16 | 100pc/bag |
PG 9 | 4-8 | 26 | 8 | 19 | |
PG 11 | 5-10 | 27 | 8 | 22 | |
PG13 .5 | 6-12 | 28 | 10 | 24 | |
PG 16 | 10-14 | 30 | 10 | 27 | |
PG19 | 12-16 | 30 | 10 | 27/28 | |
PG21 | 13-18 | 35 | 10 | 33 | |
PG25 | 16-21 | 34 | 11 | 35/36 | |
PG29 | 18-25 | 40 | 12 | 41/42 | 50pc/bag |
PG36 | 22-32 | 48 | 14 | 52/53 | 20pc/bag |
PG42 | 32-38 | 49 | 14 | 60/61 | |
PG48 | 37-44 | 50 | 14 | 64/65 | |
PG63 | 42-50 | 60 | 27 | 72 | 5pc/bag |

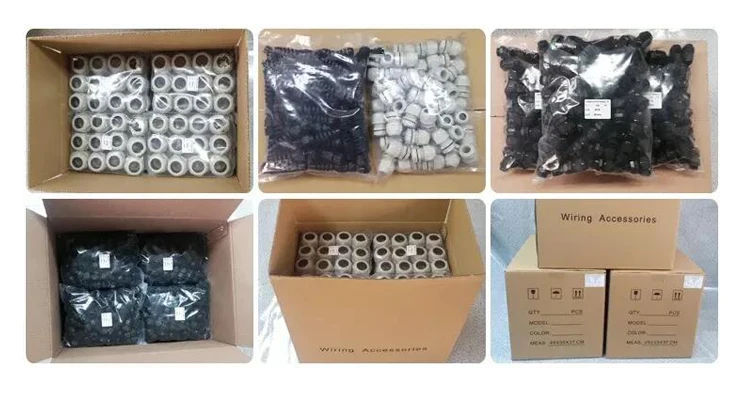

PACKING DETAIL:
Need to know more, please contact us !
