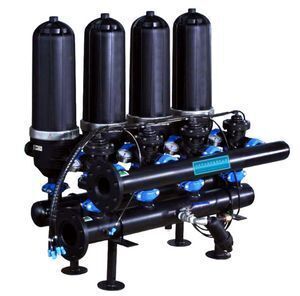

Drip irrigation system 3 inch automatic back flushing disc filter

Supplier: Beijing ZhongYuanTong Science & Technology Co., Ltd.
Region: Beijing, China
Contact: Ms Carmen Cui
Price: $1000.00 /set
Min. Order: 1 set

Click here to contact

Product details

Water Suplly:	Custom;	Supply Ability:	5000 Piece/Pieces per Year;
Port:	tianjin,qingdao,shanghai,ningbo;	Packing:	wooden cases;
Place of Origin:	Beijing China;	Power(W):	-;
Condition:	New;	Packaging Detail:	Plywood packing;
Certification:	ISO;	Certificates:	ISO9001; CE;
After-sales Service Provided:	Field maintenance and repair service;	Product name:	Plastic round screen filter drip irrigation system;
Warranty:	1 Year;	Brand:	AIGER;
Type:	Automatic Backwash Disc Filter;	Voltage:	220V;
Material:	PE;	Pressure:	0.2-0.8MPa;
Brand Name:	AIGER;	Usage:	Water Pretreatment;
Dimension(LWH):	-;	Payment Terms:	L/C,D/A,D/P,T/T,Western Union;

Drip irrigation system 3 inch automatic back flushing disc filter

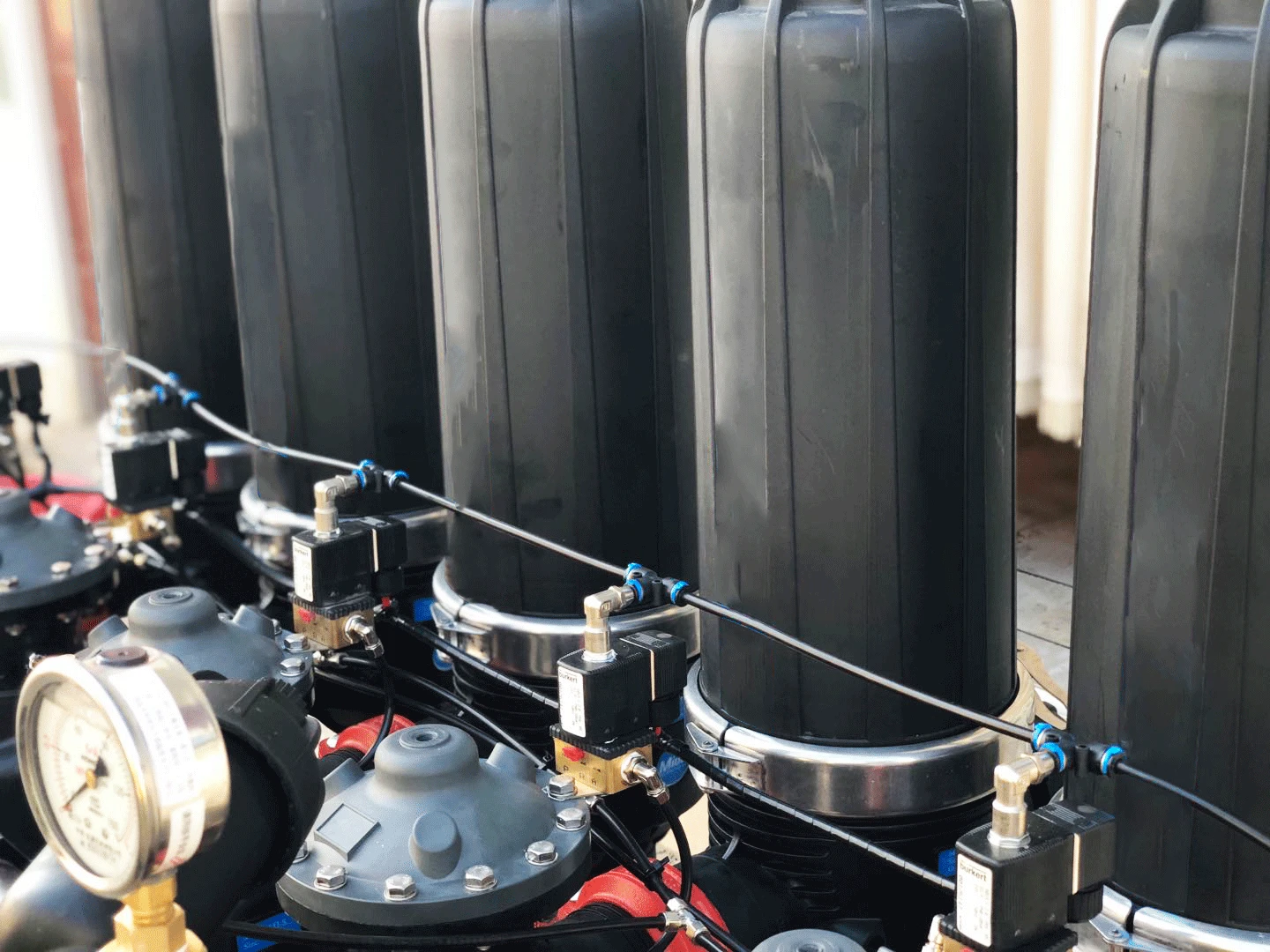

The AIGER Disc Filter has a highly efficient backwash, automatic continuous production. Low water consumption and a compact design, the system alters its backwash cycle automatically between units to ensure constant output and minimal pressure loss.

Filtration Principle

There are thin grooves on the surface of the discs; the grooves in opposite direction between vicinity discs then make many crossed points. The numbers of crossed points are different along with different disc precision. The crossed points form many chamber and irregular channels will intercept suspending particles better by the next crossed point after they are skipped from the previous crossed points.

When there are many impurities accumulated in the grooves between discs, the disc filter will change water direction of inlet and outlet, compressed discs will open automatically and compressed water will inject to discs and rotate the discs quickly. The discs will be cleaned through injecting water and fast rotating. Then the filter will change water direction again to renew filtration status.

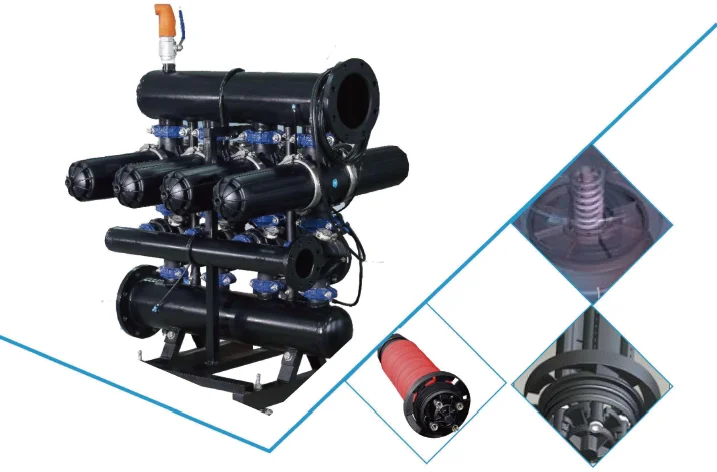

Product Description

Advantages

1. Fully automatically continuous on-line self cleaning;low water consumption;Compact design;Low pressure loss.

2. Optimizes the performance and minimizes the frequency of maintenance.

3. Maximum saving of water with efficiency in backwashing.

4. Disc filter system is per-assembled and easy to operate.

5. Modular configuration allows design according to customer preference or space availability.

6. Different anticorrosion material will be used according to environmental condition.

Design criterion

Operation pressure	0.2-0.8MPa
Backwash pressure	>0.15MPa
Work temperature	<50℃
PH	4-14
Drain of system	3" ANSI 150# Flange
Flow rate of backwash	at least 8 m3/h
Water consumption of each backwash cycle	Min. 30-66L/unit
Filtration grade	20µm, 50µm, 100µm, 130µm, 200µm
Connection port	Standard flange
Inlet/Outlet of system	Normally is 6" or 8"

Product Parameter

Water Quality	Good					General					Poor					Very Poor					Pipe size
Precision	200	130	100	50	20	200	130	100	50	20	200	130	100	50	20	200	130	100	50	20
Model	Max.Recommended Flow Rate m³/h
ZYT2-2	48	40	32	24	12	40	34	29	20	10	32	32	24	14	7	20	18	16	10	4	3"
ZYT2-3	72	60	48	36	18	60	51	42	30	15	48	48	36	21	10.5	30	27	24	15	6	4"
ZYT3-3	108	96	75	54	27	90	87	60	42	21	75	72	54	30	15	18	42	36	21	9	6"/8"
ZYT3-4	144	128	100	72	36	120	116	80	56	28	100	96	72	40	20	64	56	48	28	12	6"/8"
ZYT3-5	180	160	125	90	45	150	145	100	70	35	125	120	90	50	25	80	70	60	35	15	6"/8"
ZYT3-6	216	192	150	108	54	180	174	120	84	42	150	144	108	60	30	96	84	72	42	18	6"/8"
ZYT3-7	252	224	175	126	63	210	203	140	98	49	175	168	126	70	35	112	98	84	49	21	6"/8"
ZYT3-8	288	256	200	144	72	240	232	160	112	56	200	192	144	80	40	128	112	96	56	24	6"/8"
ZYT3-9	324	288	225	162	81	270	261	180	126	63	225	216	162	90	45	144	126	108	63	27	8"
ZYT3-10	360	320	250	180	90	300	290	200	140	70	250	240	180	100	50	160	140	120	70	30	8"
...	...										...					...					...
ZYT3-22	792	704	550	396	198	660	638	440	308	154	550	528	396	220	110	352	308	264	154	66	12"/14"/10

Application Area

AIGER Disc Filter commonly used in agriculture irrigation, landscape irrigation, golf course irrigation, industrial dust, etc.

Industrial: the circulating cooling water of metallurgy, electricity, chemical, spinning,

papermaking, automobile, sugaring , industry etc.

Municipal: domestic water, water reuse, sea water desalination, waste water treatment etc.

Irrigational: agricultural irrigation, green landscape, golf course et

Packaging & Shipping

About us

FAQ

Q: Are you trading company or manufacturer ?
A: We are factory.
Q: How long is your delivery time?
A: Generally it is 25 days, and it is also according to quantity.
Q: Do you provide samples ? is it free or extra ?
A: Sorry, we could not offer the sample for free charge.
Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shipment.
