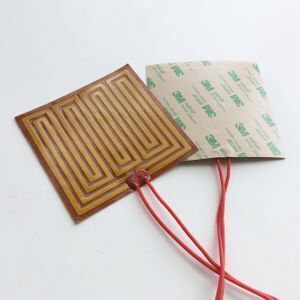

3.7V 5V 12V 24V 36V 48V 110V 220V adhesive polyimide thin film pi kapton heater pad

Product details
Dimension(L*W*H):Custom Size;Width:max 500mm;
Payment Terms:L/C,T/T,Western Union,MoneyGram,Paypal;Adhesive:3M/none;
Weight:Final Dimension;Heating element:NiCr or FeCrAl resistance heating wire;
Certification:CE ROHS;Packaging Detail:carton/wooden box;
Condition:New;After-sales Service Provided:Online support;
After-sales Service Provided:No overseas service provided;Name:12V adhesive polyimide film pi kapton heater pad;
Thickness:0.15mm(standard);Warranty:1 year;
Power Source:Electric;Brand Name:HotBox;
Max temperature:220C;Size:Customized;
Thermal Protection & Control:Thermocouple/thermistor/thermostat;Type:Air Heater;
Voltage:12-480v;Insulation material:Polyimide;
Place of Origin:Jiangsu China;Supply Ability:1000 Piece/Pieces per Week;
Port:shanghai;



Product Description



Kapton polyimide heater,Semi-transparent, flexible and extremely thin with excellent dielectric strength, Polyimide film is ideally suited for the manufacture of etched foil heaters.



PI heaters have low thermal mass and excellent resistance to most chemicals, and allow high power densities(1w/cm2) with fast and efficient thermal transfer. Where fast response, chemical resistance is required or applications with space and weight limitations such as as satellites and aerospace equipment, kapton heaters offer the ideal solution.



PI heaters can also be exposed to vacuum with low out gassing and to radiation.





Technical Date Sheet:

Voltage12~440V
WattageMax. 0.5w/cm2
Operationg Temperature-60~200C
WidthMax. 500mm
Thickness0.15mm
Thermal protectionOn board thermal fuse,thermostat,thermistor and RTD devices are available as part of your thermal management solution.
Lead wireSilicone rubber,SJ power cord
Heatsink AssembliesHooks,lacing eyelets,Or Temperature control(Thermostat)
Flammability RatingFlame retardant material systems to UL94 V-O available.





Types of sensors in heater:







Electrical Termination:





Why Kapton:

  • Heating for very small sizes
  • Very thin
  • High dielectric strength
  • Flexible circuit design
  • Superior tensile strength and tear resistance
  • Resistant to radiation and most solvents
  • Better choice far high watt density heaters
  • Excellent choice for heaters that require multi-zoned wattages or heaters that have many holes and/or cutouts
  • May provide and economic advantage for high volume applications





Main Applications:

  • Prevent condensation in motors or instrument cabinets
  • Freeze or condensation prevention in housings containing electronic equipment,for example:traffic signal boxes,automatic teller machines,temperature control panels,gas or liquid control valve housings
  • Composite bonding processes
  • Semiconductor process heating
  • Food pricessing equipment
  • Airplane engine heaters and aerospace industry
  • Drums and other vessels and viscosity control and asphalt storage
  • Curing of plastic laminates
  • Computer peripherals such as laser printers,duplicating machines







Photos




Order Guide

Pls specificy the following when ordering:

   1.detailed sizes

   2.Voltage and wattage

   3.lead cable length

   4.order quantity



*It's better to provide us the drawing/pictures











Packaging & Shipping



Trade Terms:                   FOB,CIF,EXW

Payment Terms:              T/T,West Union, MoneyGram,Paypal,L/C

Payment Condition:        30% deposit advance,70% balance after delivery at best

Delivery Time:                 7 working days after payment

Packing:                           Neutral carton,Wooden case

Shipping:                         By sea,by air and by express delivery





FAQ



1.Why the price is so low?

A: You are ordering directly from the factory.



2.How can I get the quotation and specifications?

A: HotBox's heating element and temperature sensor is customized,can produce based on clients' requirments.



3.Where is your factory located? How can I visist there?

Our factory is located in Yancheng City,Jiangsu Province,China,about 4 hours bus ride from shanghai.



4.What type of payment do you have available?

A: TT and L/C are accepted,for sample order,the West union/Money gram,Aliexpress and Paypal is available



5.How can I get some sample?

A: Samples are available,just contact HotBox



6.How does your factory do regarding quality control?

A: HotBox has over 15 years experience for heating elements,quality is controlled by CE,ISO and other quality certification.



Feel free to contact us for more details,the most competitive price for you!
