Customized: | Welcome; | Application: | 3D Printer Medical Machine CNC Machine Robot; |
Certification: | CCC,CE,ISO,ROHS,UL; | Shaft: | 24mm, dia=5mm; |
Packaging Detail: | carton box with foam inside or can be customized. 36*29*14cm, 40 pcs /CTN, N.W:12KG, G.W:13KG; | Supply Ability: | 110000 Piece/Pieces per Month hybrid 2 phase stepping motor; |
Model Number: | 42SHD0217-24B; | Product name: | 2 phase stepper motor; |
Type: | Hybrid; | Brand Name: | casun; |
Phase Inductance: | 5.0mH ±20%; | Port: | Guangzhou / Shenzhen; |
Payment Terms: | L/C,D/A,D/P,T/T,Western Union,MoneyGram,PAYPAL; | Frame size: | 42x40mm; |
Weight: | 0.24kg; | Sample: | Avaliable; |
Motor length: | 26 /29 /34 /38 /40 /42 /44 /48 /60mm; | Phase: | 2; |
Resistance: | 2.2Ω ±10%; | Current / Phase: | 1.5A; |
Place of Origin: | Guangdong China; |
Fude Manufacture is the Alibaba super V.I.P GOLDEN SUPPLIER for stepper motor
1) Over 10000+ designs
2) Over 3000+ designs for 2018
3) Small Order Welcome
Product Name | Electric Stepper Motor |
Dimensions | Nema8(20mm), 11(28mm), 14(35mm), 16(39mm), 17(42mm), 23(57mm), 24(60mm), 34(86mm) |
Step Angle | Degree 0.9, 1.2, 1.8(Optional or Customized) |
Torque(oz.in) | Up to 3.11, 5.7, 17, 41, 56, 85, 113, 425, |
Rated Current (A/Phase) | 0.1A~10A |
Typical Applications | Inject Printers, Analytical and Medical Instruments, Textile Equipment, Embroidery Machine, Precision Telescope Positioning Systems, High Speed Dome Camera and Robotics |

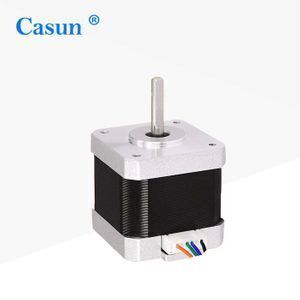

3D Printer Wholesale Nema 17 Hybrid 42*42*40mm 1.5A 2 Phase Stepper Motor
Hybrid Stepper Motor (42SHD0217-24B) | |||
General Specification | Electrical Specification | ||
Step angle | 1.8 degree | Rated Voltage | 3.3V |
Number of Phase | 2 | Rated current | 1.5A |
Insulation Resistane | 100MΩmin.(500V DC) | Resistance per phase | 2.2Ω±10% |
Insulation Class | Class B | Inductance per phase | 5.0mH±20% |
Rotor inertia | 57g.cm² | Holding torque | 450mN.m |
Mass | 0.24kg | Detent torque | 15mN.m |
Model | Holding Torque | Rated Current | Resistance per phase | Inductance per phase | Detent torque | Rotor inertia | Lead wire | Motor length |
mN.m | A | Ω | mH | mN.m | g.cm² | No. | mm | |
42SHD0512 | 200 | 0.7 | 12 | 15 | 7.5 | 20 | 4 | 26 |
42SHD0001 | 260 | 0.4 | 30 | 37 | 12 | 38 | 4 | 34 |
42SHD0002 | 280 | 0.6 | 22 | 28 | 12 | 38 | 4 | |
42SHD0009 | 200 | 0.4 | 30 | 21 | 12 | 38 | 6 | |
42SHD0029 | 200 | 1.2 | 2.1 | 1.2 | 12 | 38 | 6 | |
42SHD0202 | 400 | 0.5 | 25 | 50 | 18 | 57 | 4 | 40 |
42SHD0216 | 400 | 1.0 | 4.5 | 10 | 18 | 57 | 4 | |
42SHD0217 | 450 | 1.5 | 2.2 | 5.0 | 15 | 57 | 4 | |
42SHD0219 | 300 | 1.2 | 3.2 | 3.0 | 18 | 57 | 6 | |
42SHD0229 | 400 | 1.7 | 1.65 | 3.2 | 15 | 57 | 4 | |
42SHD0404 | 450 | 1.5 | 2.0 | 2.8 | 37 | 72 | 4 | 48 |
42SHD0441 | 420 | 1.2 | 3.2 | 6 | 37 | 72 | 4 | |
42SHD0801 | 600 | 1.5 | 2.0 | 3.2 | 42 | 102 | 4 | 60 |
About is our partial products parameter, for more products pls contact us. OEM &ODM is welcomed.
1. Carton box with foam inside;
2. Can be customized.
1) Trade Assurance Supplier, Over 10 Years Manufacturing Experience.
Our core competencies are hybrid stepper motor, linear stepper motor, Closed loop stepper motor, Gear stepper motor and Flat stepper motor.
2) Our value message is with us your money in safe your business in safe.
3) Quality is the soul of an enterprise.
4) CE,RoHs, ISO9001,TUV Rheinland certification report.
5) After sales service 24*7, professional technical team work.
6) OEM &ODM are welcomed, we have our own R & members team.
7) Confidentiality Agreement "Business Secret CONTRACT"
