High torque 56 Stepper Motor 2 PHASE 4-lead Nema23 3.5A 2.2N.M LOW NOISE Stepping Motors

Product details
Wires:4;Packaging Detail:Using export carton, pallet for packaging cnc stepper motor or according to customer's request.;
Radial Maximum load:75N;Place of Origin:Guangdong China;
Model Number:FY56EC350A;Inductance:3.0mH;
Axial Maximum:15N;Port:Shenzhen, Ningbo;
Resistance:0.9 ohms;Supply Ability:50000 Piece/Pieces per Month;
Weight:1.2KG;Certification:CE,ROHS,FCC;
Product name:Nema 23 Stepper Motor;Payment Terms:T/T,Paypal;
OEM:Available;Phase:2;
Type:Hybrid;Current / Phase:3.5A;
Brand Name:IISOW;Rotor Inertia:520 g*cm^2;
Motor length:82mm;

Nema23 ball screw Stepper Motor 56 Stepper Motor 3.5A motor ball screw 82MM Body Length for CNC 3D printer 4-lead

Product Description

Details:

Model NameFY56EC350A
Step Angle1.8deg
Step Angle  Accuracy±5%(Full step,no load)
Resistance Accuracy±10%(20°C)
Inductance Accuracy±20%(1KHZ)
Temperature Rise80°C Max(Rated current,2 phase on )
Ambient Temperature-20°C~+50°C
Insulation Resistance100MΩ Min., 500VDC
Dielectric Strength500VAC for one minute

Length

82mm

Holding Torque

2.2Nm or  314.29oz/in

Current / Phase

3.5A

Resistance / Phase

0.9ohms
Inductance / Phase3.0mH
Rotor Inertia520g*cm^2
Weight1.2Kg
Wires4

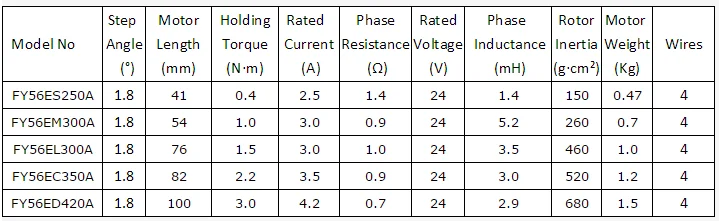

Nema 23 Series Stepper Motor:

Picture show

Dimension:

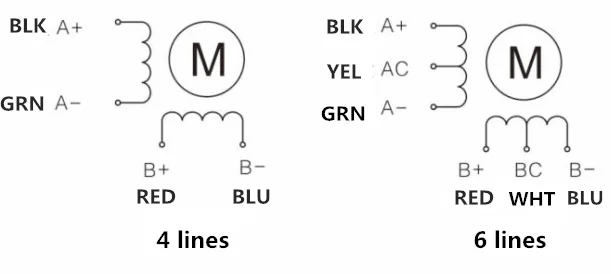

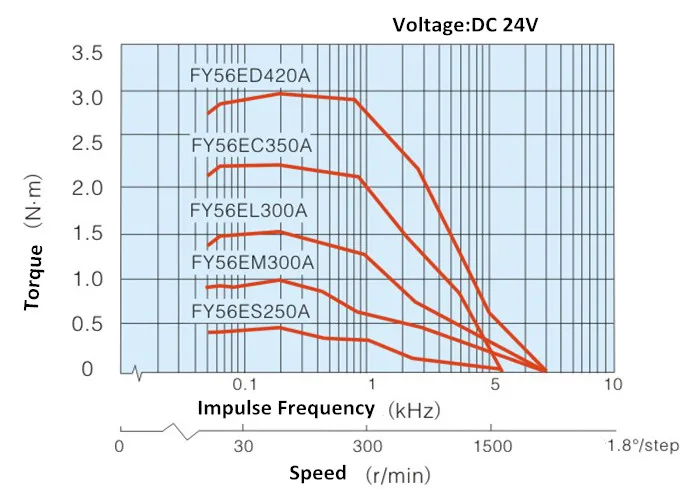

Performance Curves & Wiring Diagram:

Application:

Certifications
Related products 1



Packaging & Shipping

- Package options:

Using export carton, pallet for packaging cnc stepper motor or according to customer's request.

- Payment terms:

T/T, PayPal.

- Lead time:

Within 5 days for sample, 10 working days for general order.

- Shipment options:

DHL, UPS, FedEx, TNT, EMS and so on...
