Real-time Wireless Car Tire Pressure Monitoring System Solar External Internal Universal TPMS

Supplier: Shenzhen Xianghan Technology Co., Ltd.
Region: Guangdong, China
Contact: Ms Solo Hua
Price: $12.70 /set
Min. Order: 1 set

Click here to contact

Product details

Display:	LCD Color display;	Solar Panel Capacity:	400mA;
Default Pressure:	26PSI-46PSI( Adjustable );	Chip:	Infineon(Imported from Germany)Freescale(USA);
Place of Origin:	Guangdong China;	Working pressure:	0-116Psi(Freescale);
Type:	Digital;	Working temperature:	-30°C-85°C;
Keyword:	Car Tire Pressure Monitoring System Solar External Universal TPMS;	Selling Units:	Single item;
Max Pressure:	< 100 Psi;	Single package size:	18.6X13.2X5 cm;
Warranty:	1 Years;	Brand Name:	YOELBAER or OEM;
Certification:	CE;	Model Number:	YB068;
Voltage:	3V DC;	RF Emission frequency:	433.92MHz±50KHz;
Working Pressure:	0-72PSI( Infineon);	Single gross weight:	0.35 KG;

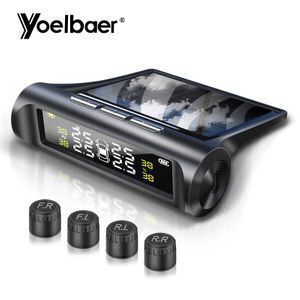

Real-time Wireless TPMS Car Tire Pressure Monitoring System Solar Power Charging

Our TPMS with USA imported chip Freescale and Germany imported chip Infineon ,with CE ROHS certification . Please kindly noted

Attention : All products have in stocks, can ship out within 48hours with factory full inspection , best supply chain for Amazon, Ebay, Aliexpress ect.

Product Description

External Battery lifespan : Apbout 1-3 years(Depending on driving time ) Easy DIY installation done in 10 minutes.

Internal Battery lifespan: About 3-5 years(Depending on driving time ) Need to install at Car Service Shop(4S Store)

Main Features:

1.Use solar energy to get electricity,with 4 internal or external sensors.

2.LCD pannel,with extra Micro USB port for charging.

3.Light weight design for sensor,no need to adjust to be balance when the tire moving.

4.Real-time Monitor the tempreature and pressure with high degree accuracy

5.Save fuel,forsee air leakage,reduce tire wearout,balance tire pressure,ensure safety driving.

6.RF wireless technology,can auto-alarm,when tire pressure and temperature is abnormal.

7.With two pressure unit"PSI,BAR " and two temperature unit"℃,℉" for option.

8.Support tire position exchange function.

9.Sensor waterproof grade: IP67.

10.With Infineon/Freescale Chip and RENATA anti-explosion battery.

11.Real-time Wireless Car Tire Pressure Monitoring System Solar External Internal Universal TPMS

Real-time Wireless Car Tire Pressure Monitoring System Solar External Universal TPMS
Monitor Specification
1.Operating Voltage	3.7-5v
2.Storage Temperature	-30℃-90℃
3.Working Temperature	-30℃-85℃
4.RF Emission Frequency	433.92MHZ+/-50MHZ
5.Monitor Mode	LCD Color Display
6.Working Pressure	0-116 PSI(Freescales) 0-72PSI(Infineon)
7.Bright Operating Current	≤6mA
8.Black Operating Current	≤4mA
9.Size	958375MM
10.Chip	Infineon chip (Import from Germany)
11. Use time/cycle	10-15days after get full charged
12.Factory Default Pressure	26-46 PSI
13.Solar Panel Battery Capacity	400 ma
10.NW	0.3KG
11.GW	0.36KG
External Sensor Specification
1. Battery Life	24months
2.Operating Voltage	3v
3.Storage Temperature	-30℃-90℃
4.Working Temperature	-30℃-85℃
5.Temperature Resolution	+/-2℃(25℃)
6.Pressure Range	0-7.0Bar
7.Waterproof Grade	IP67
8.Transmitted Power	≤10dBm
9.Transmitted Frequency	433.92MHZ
10.Size	21*17mm
11.Weight	9g
12.Lithium Battery	CR1632
Certification	CE ROHS
Aging test	full 72hours
QC Test	100% full inspection before shipping out
HS Code	9026209090
