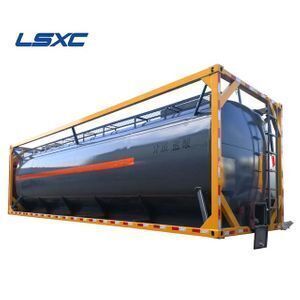

Hot Sell ISO Standard 20 Ft 30 Ft t11 t14 Chemical Liquid storage tank for hcl

Product details
Name:iso tank container;Supply Ability:50 Unit/Units per Month;
MOQ:1 Piece;Place of Origin:Henan China;
Port:Shanghai,China or as your request.;Certification:ISO9001;
Packaging Detail:Nude Package or According to Customer's Requirements;Inspection Agency:LR or BV;
Capacity:26000L;Payment Terms:L/C,D/A,D/P,T/T,Western Union;
Manhole:500mm;Design pressure:4Bar;
Design temperature:-40 ~ +130 ℃;Cladding:2mm thick mould GRP end;
Color:Selectable;Length (feet):20';
Brand Name:LSX for ISO Tank Container;External Dimensions(l x W x H)(mm):6058*2438*2591/mm;
Type:Tank Container;Design Approvals:IMDG T11, CFR 49, ADR/RID, CSC, TC, TIR, ISO, UIC, US DOT;
Internal Dimensions(l x W x H)(mm):898.2352.2393/mm;Test Pressure:6 Bar;
Product Description

Specifications(T14 Portable Tank):

Frame Dimensions

(L x W x H)

External

6058 x 2438 x 2591

MM

20 x 8 x 8.5

FT

Max. Capacity (Nominal)

10,900L 15,000L 17,500L  21,000L  24,000L  25,000L 26,000L 31,000L 33,000L 35,000L

L

Max. Gross Mass

36,000

KGS

Tare Mass (Nominal)

---

KGS

Max. Payload

32450

KGS

Pressure

Working pressure

4.0

Bar

Test pressure

6.0

Bar

Design Temperature

Frame

-40 to +130 ℃

Tank

Material

Frame

SPA-H,Q345D or equivalent

Tank

316L/SAN50028-7/WNr 1.4402/1.4404

Insulation

Shell

Rock wood(50kgs/M3), Max thickness 50mm

Ends

Rock wood(16kgs/M3)

Steam Heating

6 runs, 110mm width stainless steel 304

Manhole

500 low TIR provision, 8 point fixing with super tanktyt Lid seal

Safety Relief

2½”  BSP Supermaxi Highflow relive, without gauze,

Pressure only set at +4.4 bar (63.8psi).

Air Inlet Assembly

1.5 BSP air inlet with 1 1/2BSP connection,

Bottom Discharge

3 stainless steel foot-valve with butterfly valve and blank flange / 3 BSP cap and chain.

Top Discharge

Provision only

Document holder

A clear plastic document holder ø 110mm is fitted to the rear right hand side beam.

Decals

One set of mandatory decals is fitted.

Data Plates

One set of stainless steel data plates

Calibration

Yes, have it

Stacking

Each container is approved for 9 high stacking.

Approval

Lloyds or BV Construction Certificate, IMDG, CFR49, ADR/RID, AAR 600, CSC, TC, TIR, ISO UIC, US/UK DOT

Detailed Images

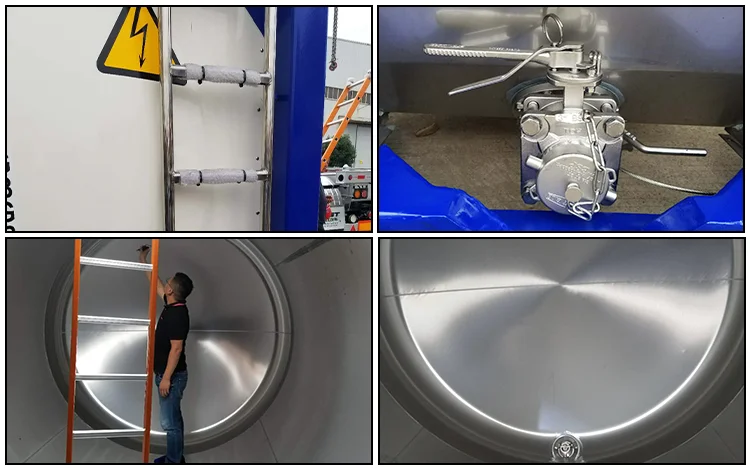

Detailed images of our container: such as stand ladder, valve and inside of the tank.

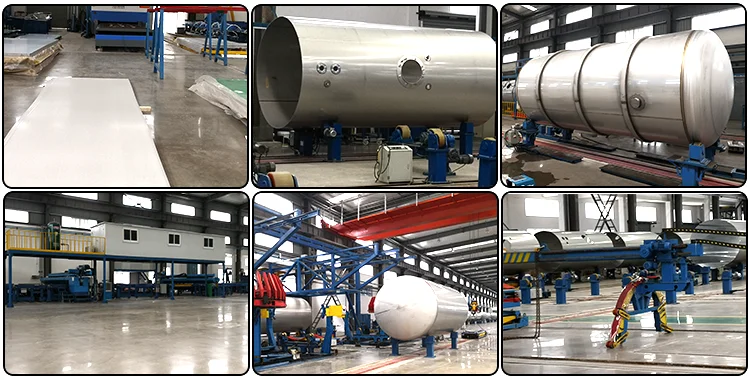

Factory Picture



Certifications

Henan Lishixin Logistics Equipment Co, Ltd is located in Zhengzhou FTA, Henan Province, China,is specialized in the R & D,mass production and sales of kinds of the 20FT,30FT,40FT ISO Storage Containers and Storage Tanks as well as other special equipments

All of our ISO tank containers will be approval by BV /LR / CCS.

Our Services

We can provide you :

  • High quality products.

  • Different products according to your request.

  • Meet special customer‘s requirements.

  • Best shipping agent for arranging the shipping.
  • Offering the product with factory price.
  • Accept clients' consulting and offering professional suggestion.
  • If you have any questions. please tell me. We will help you to find suitable storage tank.
Related Products

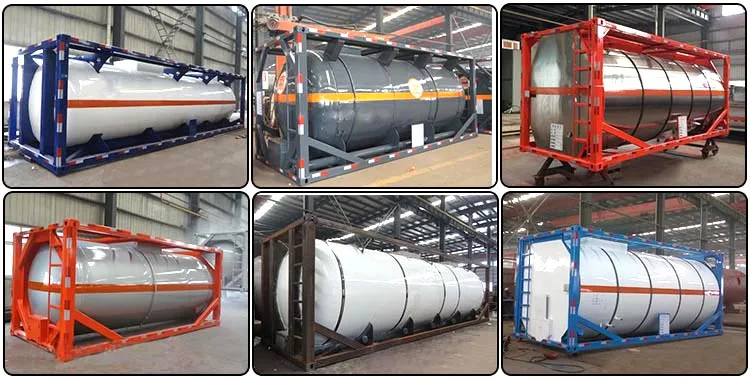

The use of tank containers provides a safe, economic and straightforward method of bulk cargos transportation. Tank container has remarkable advantage over drum and tank track.

We also have different kinds of tank containers for your reference.



Customers' Visit



FAQ

Q:Do you provide OEM Service?

A:Yes, we have a first-class team and could design as your requirement.



Q: Do you have the certificates to meet us the transportation ways of the Land Truck, Sea Boat and Railway?

A:Yeah,of course, but the price will be very different by different transportation ways; So kindly please let me know your exact transportation ways before the quoting; And also the certificates will be ready after the tank container passed all kinds of the testing &inspection.



Q: Can you provide the drawing for confirmation?
Sure, we'll provide the drawing after order confirmed before production.



Q: Do you have Small or Large Volume liquid Chlorine Tank Container?
Sure, we could do Tank Container form 1000L to 60000L.

And could produce offshore Tank as per DNV2.7-1 / EN12079 Standard.



Q: Can I do your agent in our country or some district?

A:Yes,if you quantity is enough, no problem, the 50 units for the first time is okay.



Q: What if my question that wasn't answered in the FAQ?

 A: Contact me or choose the sales to consult directly. We're always happy to help!
