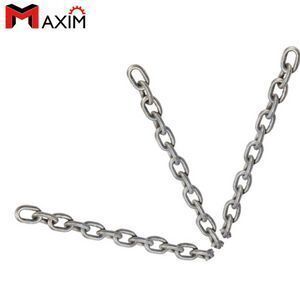

Welded Steel Long Link Hot Dip Galvanized Anchor Chain

Supplier: Qingdao Maxim International Import And Export Co., Ltd.
Region: Shandong, China
Contact: Mr Jerry Zhang
Price: $0.80 / >=100 meters
Min. Order: 100 meters

Click here to contact

Product details

Emboss:	standard or customized;	Supply Ability:	6400 Meter/Meters per Month depends on different sizes;
Grade:	steel/alloy steel;	Application:	lashing&lifting and sling;
Material:	Steel;	Standard or Nonstandard:	Standard;
Model Number:	USA/europe;	Place of Origin:	Shandong China;
Packaging Detail:	hot dip galvanized chain is packaged by pallet /wooden case;	Function:	lifting/marine/ industry;
Material:	steel or alloy steel;	finish:	black;
Payment Terms:	L/C,T/T,Western Union,MoneyGram,paypal;	Cutting:	available;
Port:	Qingdao/Ningbo/Shanghai/dpends on your requirements;	Other:	can be customized;
Style:	Din/USA or else;	Dimension:	can be customized;
Brand Name:	maxim or customized;	Structure:	Welded Chain;
Treatment:	welded &quenched tempered;	Stock:	8130m in stock;

Product Description

Welded Steel Long Link Hot Dip Galvanized Anchor Chain

Introduction:

Hot Dip galvanized Chain is manufactured specifically for use in chain slings for lifting purposes. The chain is heat treated for tensile strength and resistance to wear whilst also allowing for shock absorption.

Work Load Limit (WLL) is the maximum load which the chains are designed to sustain in lifting use. The mean stress at this load is 200n/mm2 (MPA) and is based on a 4:1 factor of safety.
Manufacturing Proof Force (MPF) is the force to which during manufacture the chain is subjected to. The mean stress at this load is 500n/mm2 (MPA) which is 2.5 times the working load limit.
Minimum Breaking Load (MBL) is the minimum force of which the chain must withstand before failure. The mean stress at this load is 800n/mm2 (MPA). The minimum elongation before failure is 20%.

Equipped with a clevis grab hook on each end. Working load . Breaking strengh is all qualified. Can be assembling with grad hooks, sling hooks, master links, clevis pear links, load binders, webbings, shackles, connecting links and triangle and rings to package as one set.

Warning: Not for overhead lifting. W.L.L.. (Sold Per Foot)
Cut Chain is available.

Features:
Widely used in lifting conditions, sling conditions,trailer condition, marine conditions,container and port lashing conditions and logging conditions

Easier to be connected with shackles, chain links and rings, chain slings, hooks,pulleys,etc

Stronger performance during working

Many sizes can be choosed according to the different daily working

Specifications:
Process: welding

Material: alloy steel
Safety factor: 4:1
Size: M1-M16 (other size can be customzied)
Finish: polished

Other size can be available.

CAUTION: Do NOT use Breaking Strength for design or rating purposes. Use Working Load Limit instead. It assumes no responsibility for the use, misuse or misapplication of its products. All products are sold with the package understanding that the purchaser and/or user are thoroughly familiar with their proper use.

SPECIFICATION FOR Hot dip galvanzied chain
CODE	SIZE(MM)	W.L.L(T)	WEIGHT(KG/M)
MATV0214	7	1.5	1.1
MATV0215	8	2	1.5
MATV0216	10	3.15	2.2
MATV0217	13	5.3	3.8
MATV0218	16	8	5.8
MATV0219	20	12.5	9.1
MATV0220	22	15	11
MATV0221	26	21.2	15.3
MATV0222	32	31.5	23.2

wire cutting

link connecting

auto welded

perfect the shape

half-finished &finished chain bulk

strength testing

Detailed Images

zinc plating or HDG or black all is available

assembled hooks

high tensile strength of the alloy chain

assembled with chain clamp /shackle/hooks/pear link

Typical questions asked about products:

- - Is the item durable?

Dear customer, Yes, they are. The whole body were forged and quenched&tempered, and material is steel, alloy steel. Each parts were forged overall.

- - Is this item easy to use?

Dear customer, Yes, they are. Just welding it together with the machine or equipment basement, then connecting it with hooks, chains, wire rope fittings, shackles, webbing straps,pulley blocks to lifing.

- Can I just buy 1 set? As I only need one set for now.

dear, MOQ of this products is 100pcs, if we have them in stock, that can ship 1 or small order for you.

Packing & Delivery

Packaging
Packaging Details	1hot dip galvanized chain with pallet 2.chain was packaged by barrel 3.can also packaged by wooden case/drum. 4.Packaged can be customized.

Shipment
Shipping Details	1.CIF price is also competitive through our old shipping agents. 2.Shipment to your door address is available. 3.15 days can be shipped in usual. 4.Ocean, air, train all is no problem.
