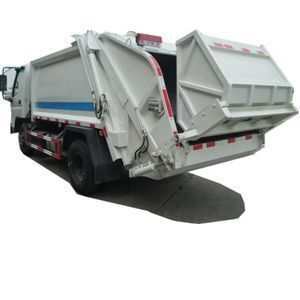

LHD or RHD DONGFENG 6wheels 10cbm 12cbm 14cbm compress delivery loading transit garbage truck, compactor garbage truck

Supplier: Chengli Special Automobile Co., Ltd.
Region: Hubei, China
Contact: Ms xi chen
Price: $29000.00 /unit
Min. Order: 1 unit

Click here to contact

Product details

Type:	Compactor;	Truck type:	Compactor Rear Loader Recycling Roll;
Tire Spec:	10.00-20;	Packaging Detail:	RORO , bulk ship;
Port:	shanghai;	Chassis Brand:	dongfeng;
Brand Name:	dongfeng;	Emission Standard:	Euro 2;
After-sales Service Provided:	Video technical support,Free spare parts,Online support,Field installation, commissioning and training,Field maintenance and repair service;	Warranty:	2 year;
Size:	843024002950;	Color:	according with client;
Wheelbase:	4500mm;	Place of Origin:	Hubei China;
Certification:	SGS BV ISO,SONCAP;	Garbage truck volvume:	8m3;
Payment Terms:	L/C,T/T,Western Union,alibaba one touch;	Condition:	New;
Engine power:	190hp;	Warranty:	1 Year;
Supply Ability:	200 Unit/Units per Month compression garbage truck compactor garbage truck on sales;	Transmission Type:	Manual;
Driving Type:	4x2;	Gross Vehicle Weight:	6500;
Volume:	6001 - 10000L;	Fuel Type:	Diesel;
Engine Capacity:	5900;	Drive Wheel:	4x2;

LHD or RHD DONGFENG 6wheels 10cbm 12cbm 14cbm compress delivery loading transit garbage truck, compactor garbage truck

4X2 Waste Collector Truck Dongfeng Compression Garbage Truck

The compressed waste truck usually called garbage compactor truck, compression garbage truck, waste compactor truck,compactor garbage truck,etc.

The compression garbage truck usually compacts the waste using a hydraulically powered mechanism that employs a moving plate or shovel to scoop the waste out from the loading hopper and compress it against a moving wall. In most compactor designs, the plate has a pointed edge (hence giving it the industry standard name packer blade) which is designed to apply point pressure to the waste to break down bulky items in the hopper before being drawn into the main body of the truck.

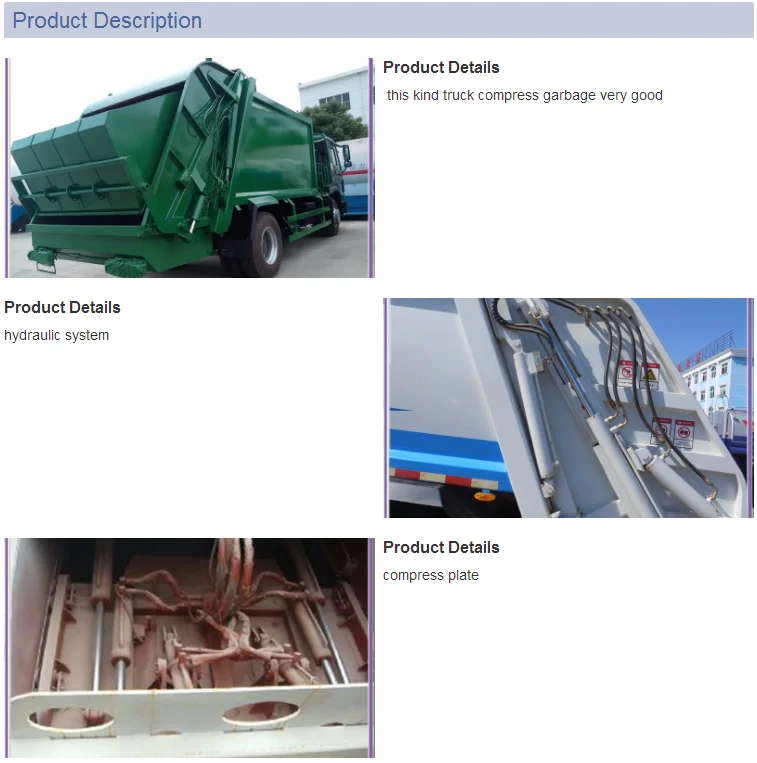

Product Description

Introduction of compactor garbage truck
The collection garbage truck usually called garbage compactor truck, compression garbage truck, waste compactor truck,compactor garbage truck,etc.

The compactor garbage trucks usually compacts the waste using a hydraulically powered mechanism that employs a moving plate or shovel to scoop the waste out from the loading hopper and compress it against a moving wall. In most compactor designs, the plate has a pointed edge (hence giving it the industry standard name packer blade) which is designed to apply point pressure to the waste to break down bulky items in the hopper before being drawn into the main body of the truck.

The garbage compactor truck we maufacture is an ideal compactor for large clean up operations. It is simple to operate and highly effective with excellent compaction ratio. It is ideally suited to
municipal applications where large amounts of mixed industrial and domestic refuse is to be collected.

Our garbage compactor truck for sale is consisted of four main parts, sealed garbage compartment, hydraulic system, operating system and lifting cylinder.fully sealed. It can compact and dump the
garbage automotically. The sewage will flow in the compartment completely to aviod re-pollute during transportation.

As a professional special vehicle manufacturer in China, the garbage compression truck we produce is from 4cbm to 18cbm

Description	DONGFENG Xiaobawang Garbage Truck
Drive Model	4X2
Chassis	EQ1060TJ20D3
Vehicle Main Dimensions	Dimensions(L x W x H)mm	6320×2050×2560
	Wheel base (mm)	3300
	Overhang (front/rear) (mm)	1032/1988
	Wheel track (front/rear) (mm)	1506/1466
	Approach/Departure angle(°)	19/10
Weight in KGS	Curb Weight	5365
	GVW.	6495
Max. driving speed(km/h)		90
Engine	Model	YC4F90-30
	Type	4-stroke direct injection , 4-cylinder in-line with water cooling, turbo-charging and inter-cooling
	Horse Power(HP)	90HP
	Emission standard	Euro III
Gearbox	5forwards & 1 reverse
Clutch	Reinforced diaphragm clutch
Steering Gear	Power steering, hydraulic steering with power assistance
Fuel tank (L)	150
Tire	7.00-16 tire ,6+1 spare
Brakes	dual circuit compressed air brake
Allowable passengers in cab	2
upper
Volume(kg)	1000
Material	Q235carbon steel
Thickness	5mm
Uploading cycling time	<60s
Loading cycling time	≤30s
Lifting capacity	≥800KG
Operation control system	Electrically hydraulic control
Equipment	Equipped with dustbin, hydraulic system and operating system Equipped with two advanced double acting hydrocylinders One vehicle can cooperate with several dustbins to improve the ability of cycle operation.cycling time60s

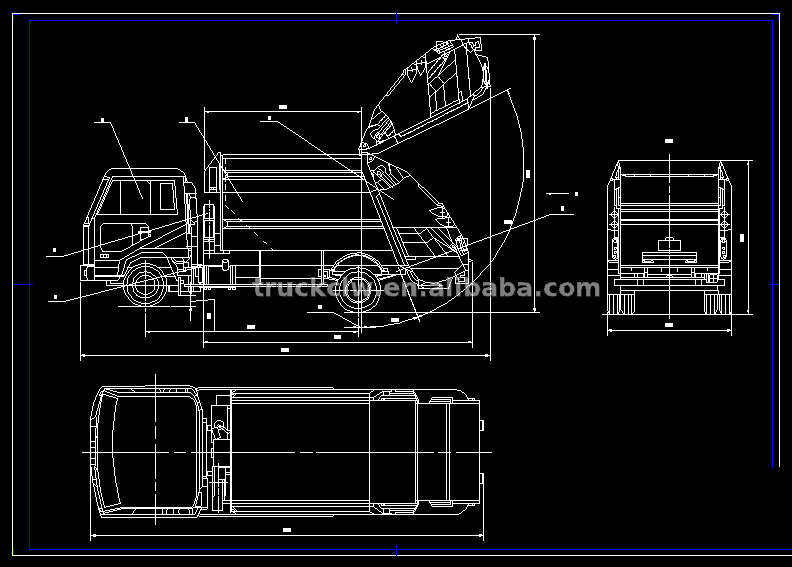

garbage truck drawing picture

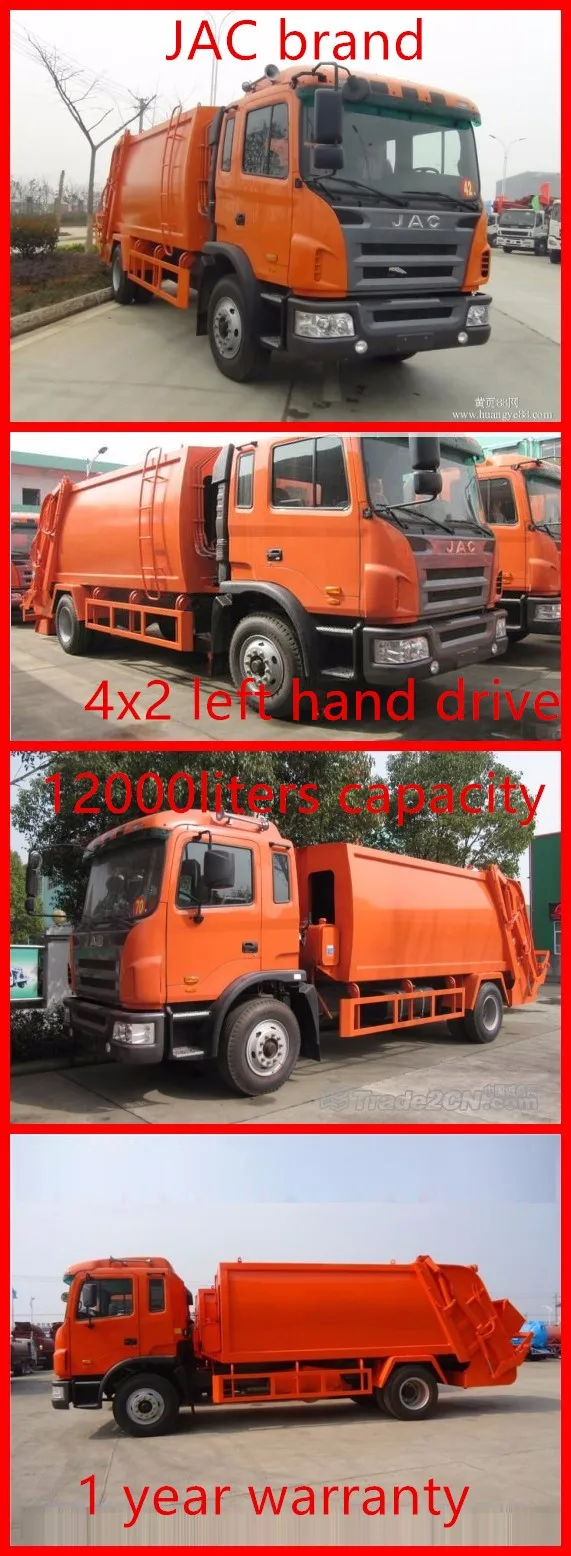

12000Liters compactor garbage bin

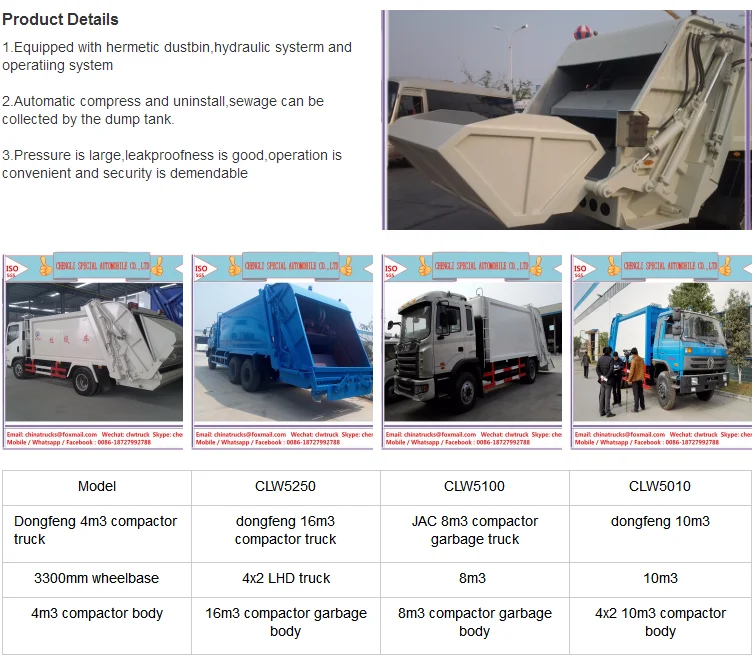

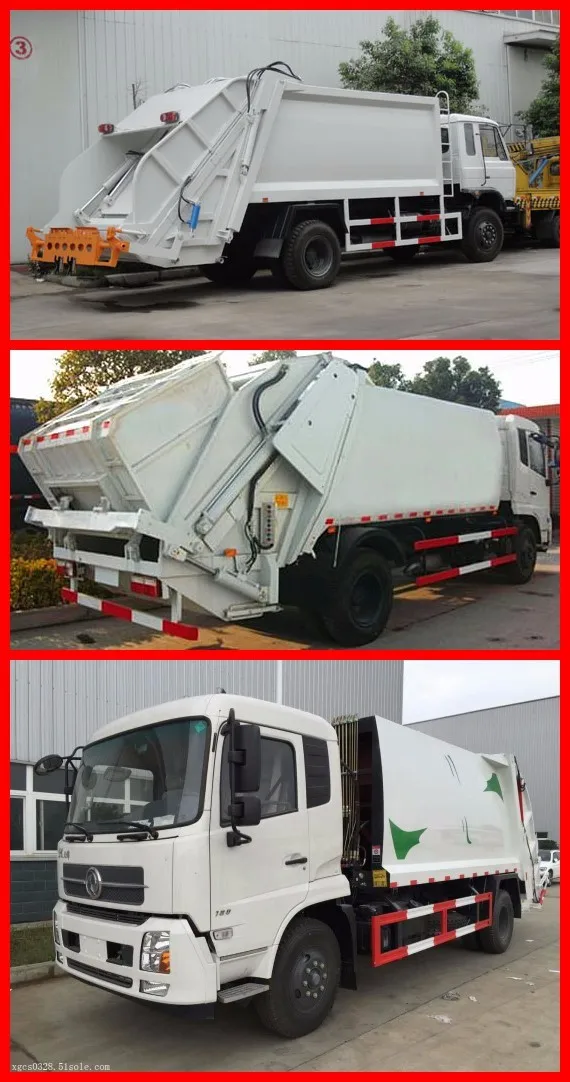

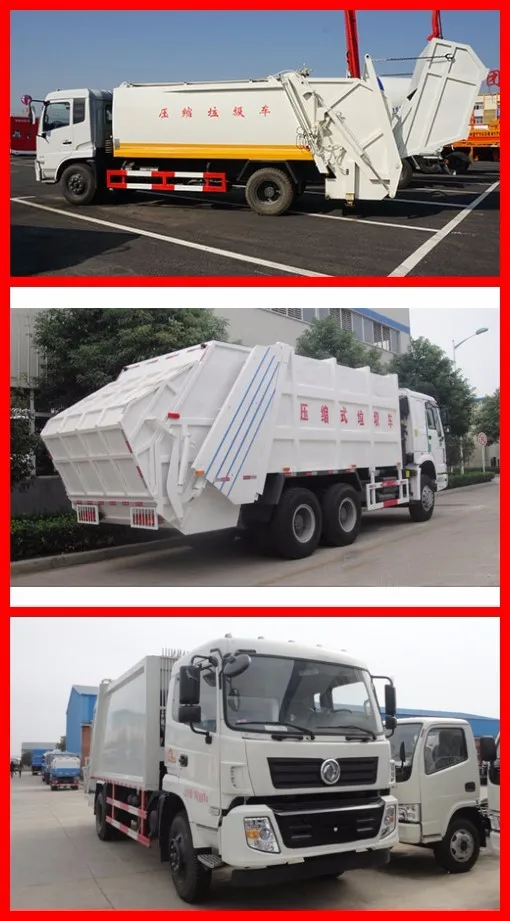

different garbage truck

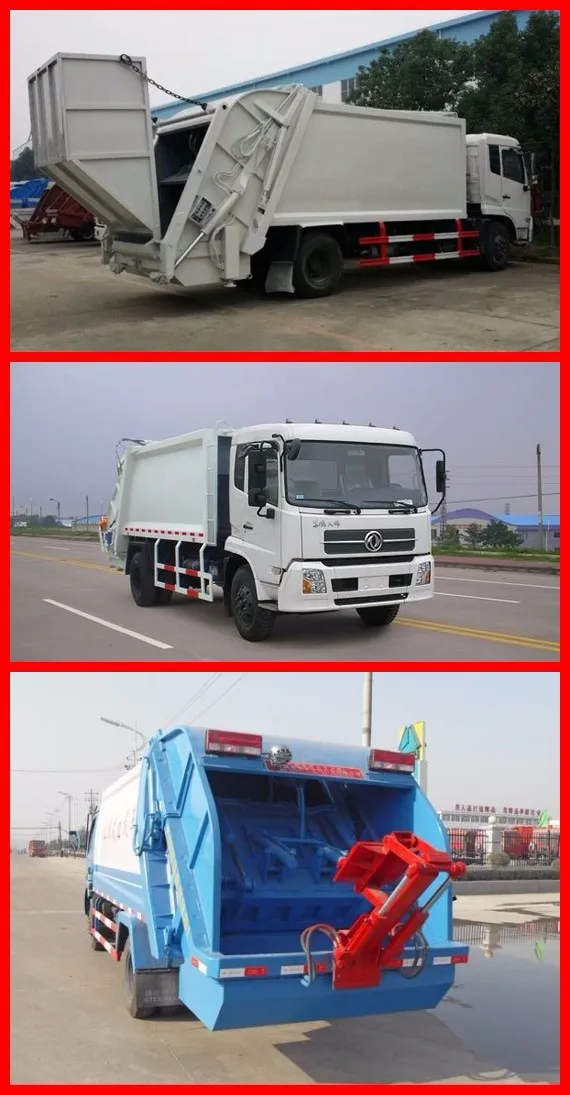

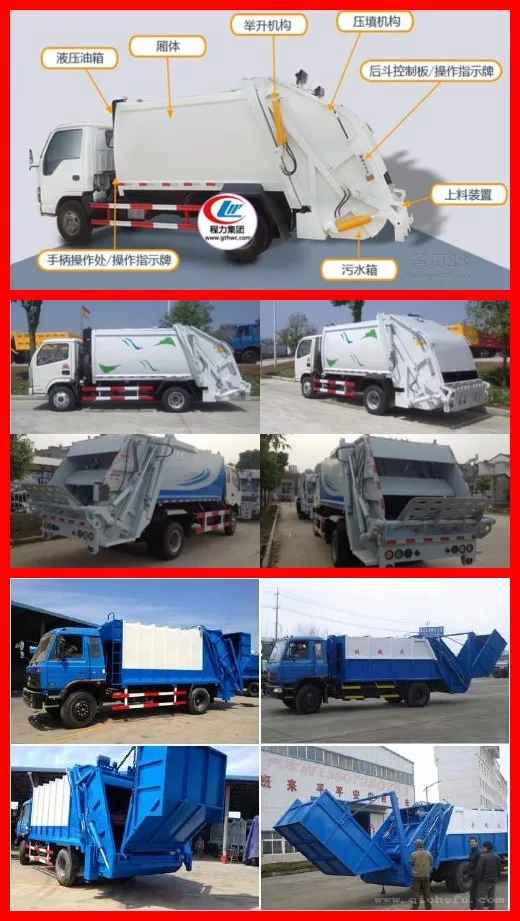

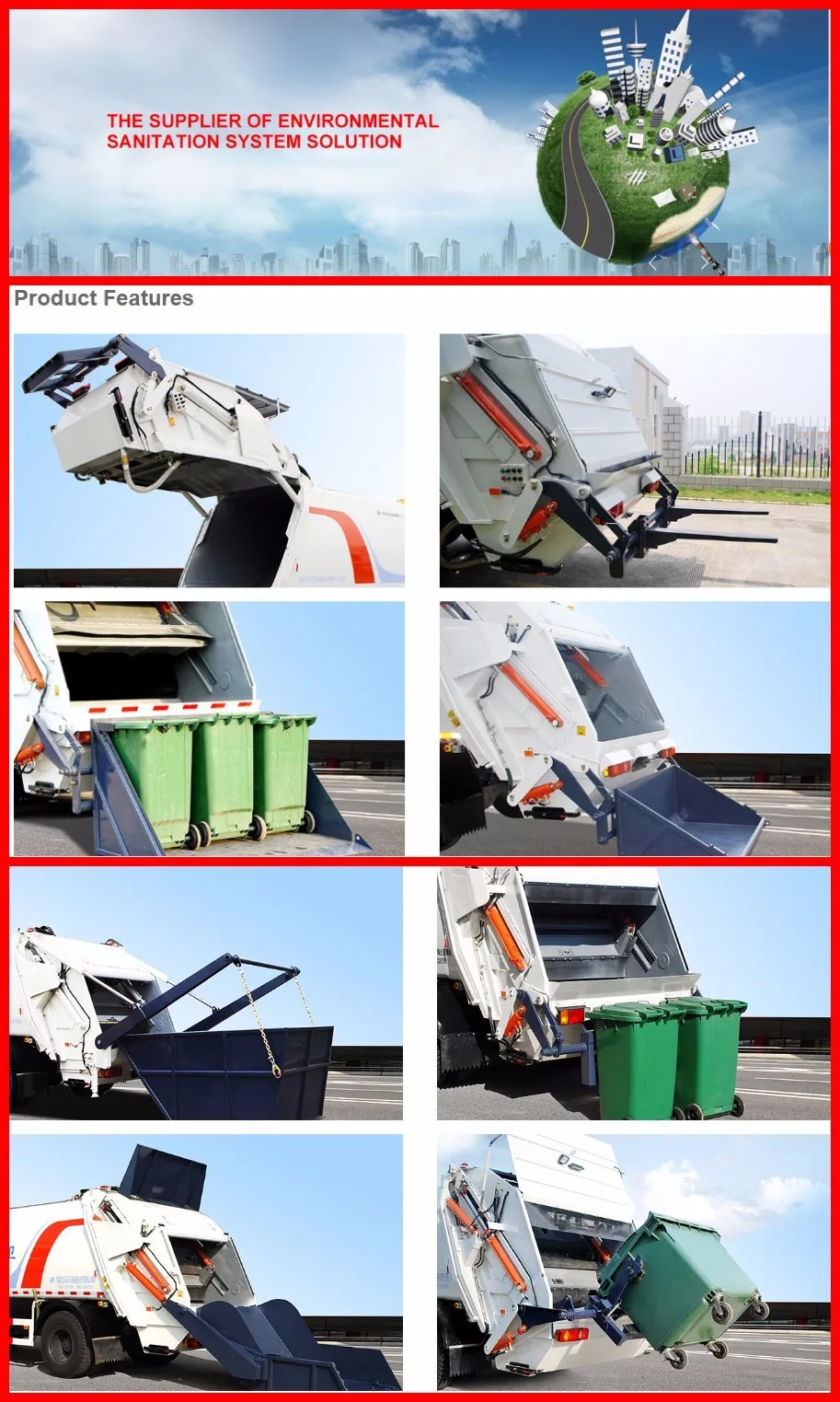

Different rear grabage bin showing here

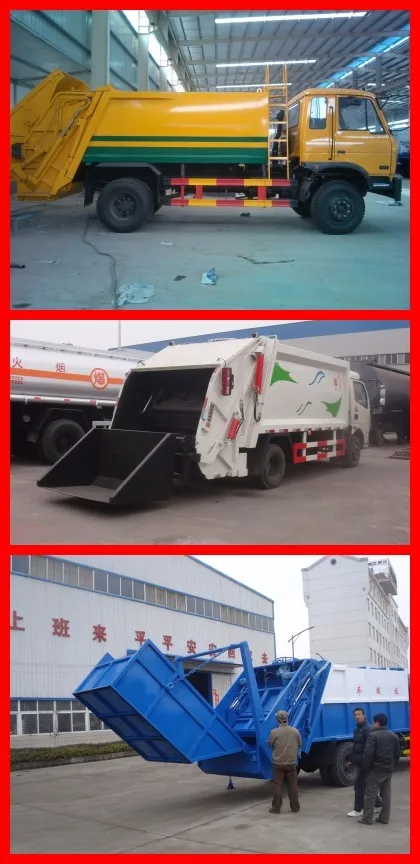

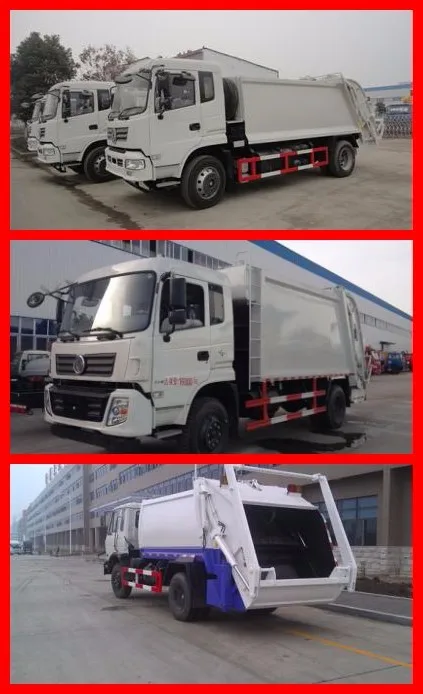

compression garbage truck testing for our client

My garbage truck factory boss and factory

garbage collection truck FAQ

FAQ

1.Payment:
30% deposit after order confirmation, 70% balance should be paid before delivery.All by T/T, L/C.
2.Delivery time:
25 working days after payment is received.

Packaging & Shipping:

1. Naked or waxed before on board.
2. Delivery time: 30 days after receiving payment in advance.
3. By RORO or Bulk ship.

Our warranty:

1. One year quality guarantee for three key parts: Axles, engine, transmission.
2. Other spare part could be supplied by OEM at cost prices.
3. Regularly callback to know the vehicle's working status.
4. The overseas engineers are always ready to deal with unexpected needs.

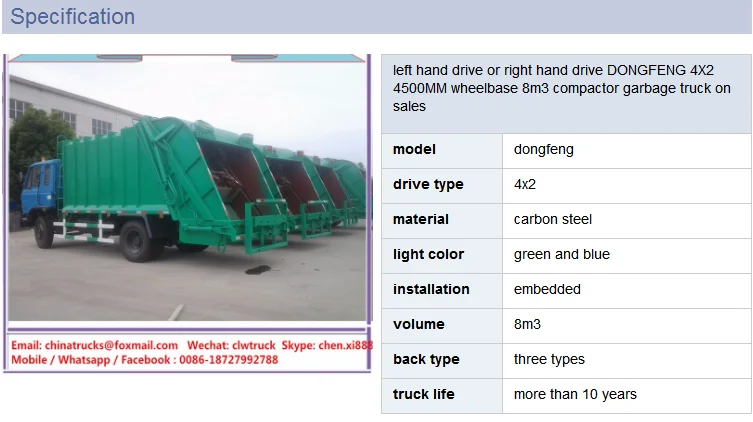

Below specification is just for your reference. More information of our Garbage Trucks, please feel free to contact with Ms. xi chen . We will customize the truck according to your requirement.

Sales Manager: Ms xi chen
Mob.: 0086-18727992788

Our garbage truck advantages:
a.Competitive Price and Excellent Quality,
b.More than 10 years' experience as a manufacturer
c.CCC,ISO,BV certification
d.Perfect after-sale service
e.Customized products available with us,
f.Export covering More than 50 countries and regions
g.Annual production value topped 1500,000,000 RMB (240,000,000 US d ollars) per year

Our main products:
1. Dump Truck / Tipper Truck/Side Tipper/End Tipper
2. Fire Fighting Truck / Fire Truck / Fire Vehicle / Fire Engine
3. Truck with crane / Truck mounted crane
4. LPG Tank Truck Trailer/Oil Tank Truck / Fuel Tanker Truck
5. Water truck / Water Tank Truck / Water Sprinkler Truck
6. Concrete Mixer Truck
7. Van truck / Insulated truck/ Refrigeration truck
8. Fecal suction truck / Sewage suction truck,
9. Cement Powder Tank truck/ Bulk cement truck
10. High-altitude operation truck,
11. Self-loading garbage truck, garbage compactor truck, sealed garbage truck,
12. Semi Trailer ( flat bed trailer / skeleton trailer / dump semi trailer / side wall trailer / low bed trailer / van container trailer / warehouse trailer, etc. )

Exporting

Chengli special automobile Co., Ltd is an automobile manufacturer , the company is a marketing enterprise of various heavy automobile brands, integrating international and domestic trade. Besides, the company has established a good relationship with domestic and overseas customers from Africa, South America, the Middle East and South Asia, winning a universal recognition and trust from the oversea customers and contributing to China trucks' entrance to the international market.
1.58 sets of military water trucks for national defense
2. Dump trucks in support of the United Nations
3. Fuel tank trucks exported to Sudan
4.78 sets of water truck exported to Nigeria
5. Dump trucks exported to the Ivory Coast, Kazakhstan
6.108sets of trucks exported to Libya
7.36 sets of dump trucks exported to North America
8.218 sets of garbage trucks exported to West Africa
9.60sets of water trucks exported to Congo
10. Garbage trucks exported to Vietnam
11.98 sets of dump trucks exported to Ghana

We are confident and committed to providing our customers with the best qualityand service all the time

If you are interested in our trucks, pls contact me, I will send our best quotation to you!

we sincerely welcome you to visit our factory and provide your precious suggestion for us!

ChengLi Special Automobile Co.,ltd is a big manufacture producing all kinds of special trucks.
It has registered trademark "CHENGLIEWI" and product code "CLW'.
Our company cooperates with  many famous chassis manufacturer ,such as Dongfeng,Foton,
JAC,JMC,FAW,SINO TRUK,,HINO etc..
Our leading productions is include more than 300 types of trucks such as water truck,fecal   suction  truck ,sewage suction truck ,garbage truck,road sweeper,fuel tank truck ,high atitude operation truck ,truck with crane,dump truck ,trainer truck ,semi-trailer,fire fighting truck ,Van truck ,pressure vessel ,etc.
We has independent export potence and had many experience exporting trucks to oversea market.
We promise that all the products sold by us have one year warranty and enjoy maintenance and   free technology service .
Welcome to visit our factory in suizhou city,hubei province, China.
