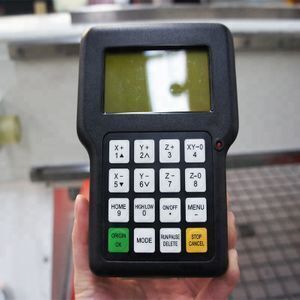

China hot quality richauto dsp a11 dsp controller for cnc router

Click here to contact

Product details

Single package size:	35X20X4 cm;	Place of Origin:	Beijing China;
Single gross weight:	1.5 KG;	Selling Units:	Single item;
Application:	Wood Cutting;	Applicable Industries:	Manufacturing Plant,Construction works ;

a).The handle is widely used in all kinds of engraving machine and milling machine with super quality and competitive price;

b).The handle can off-line work,read U dish,self check function,dynamic update.

c).Adopt power-off protection ,breakpoint restoration ,smooth processing

d).High subduviding,high precision,high speed and support straight line,arc interpolation

Product Model	RichAuto----A11
CPU	DSP
Internal Memory	512MB
Display Screen	128*64 Monochrome LCD
Communication Port	U disk,USB cable
Controlled Axis Number	3 axes
Control Signal	differential signal
Drive System	step motor/servo motor
Min.Input Unit	0.001mm
No Volt Protection	support
Breakpoint Processing Function	8
External Power Supply Voltage	24V DC
Manual Mode	Continuous,point move,distance
Interpolation Way	line,arc
Soft/Hard Limit	support
Max. Pulse Frequency	1M/S
Password Protection	support
Support Language	simple Chinese/traditional Chinese,English,other languages

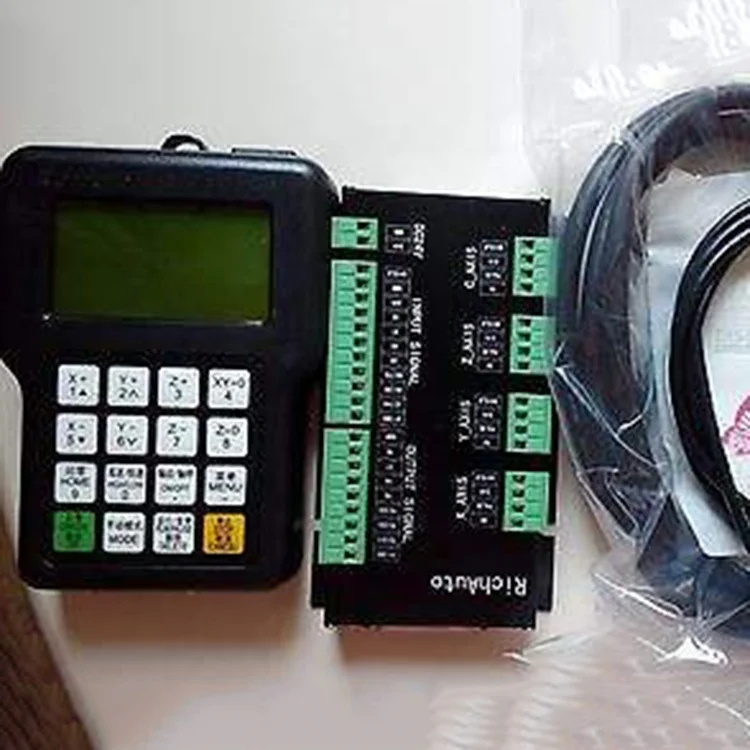

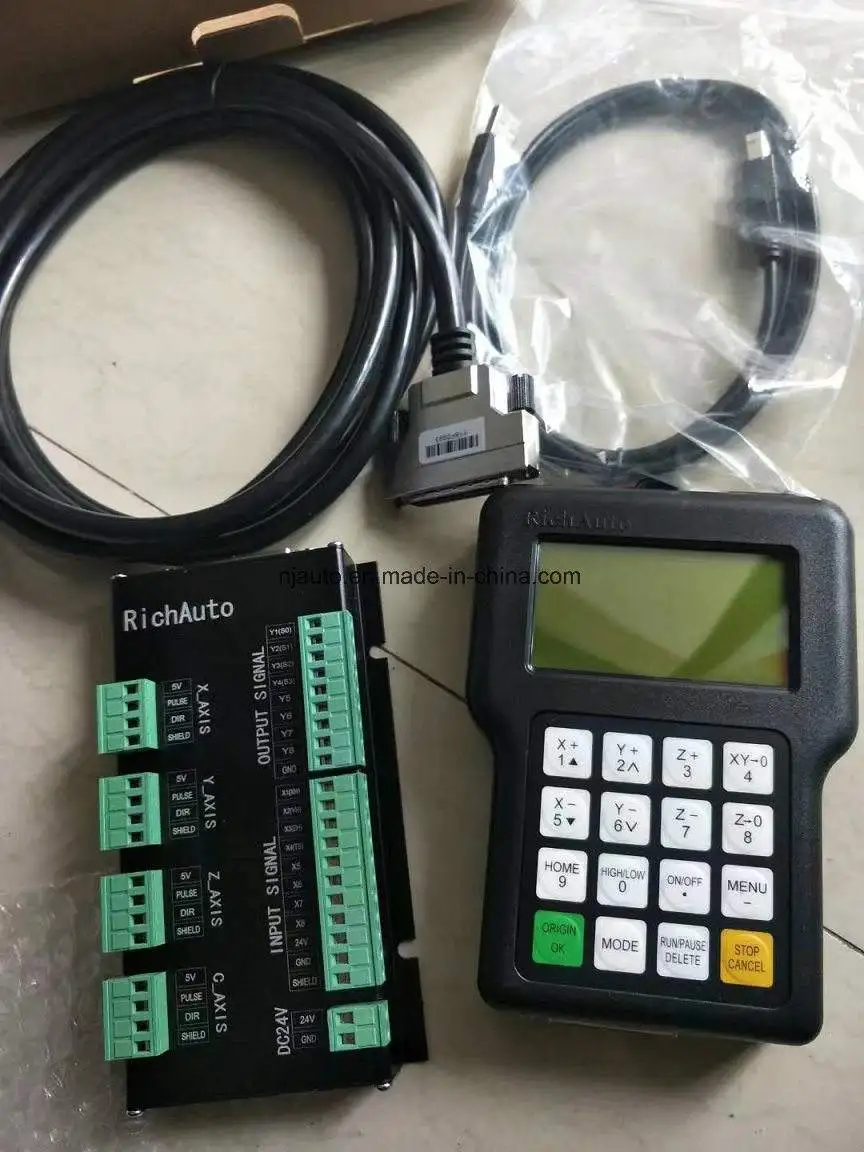

Standard Configuration	(1) DSP Handle;(1) 50 core cable (1)USB cable; (1)8 I/O Wiring board;(1) data CD
