DP&VGA audio and video interface test board test boxDHVT DP ports Tester VGA&DP Tester

Supplier: Suzhou Industrial Park Phiyo Technology Co., Ltd.
Region: Jiangsu, China
Contact: Mr sunny yang
Price: $880.00 / >=2 pieces
Min. Order: 2 pieces

Click here to contact

Product details

Single package size:	151X120X26 cm;	Product Name:	DHVT;
Single gross weight:	0.32 KG;	Brand Name:	PHIYO;
Selling Units:	Single item;	Products Status:	Stock;
Package Type:	box;	Application area:	PC, Server board, Notebook , DP&HDMI&VGA connection cable, etc.;
Place of Origin:	Jiangsu China;

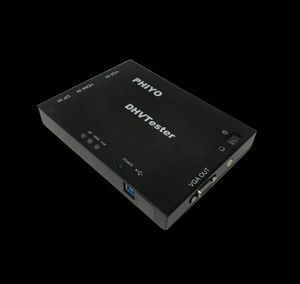

DHVT (HDMI&DP ports )Tester

DHV Tester (hereinafter referred to as DHVT) is a PHIYO independent research and design for the detection of video interface professional test tools, test DP&HDMI&VGA standard interface is widely used in computer motherboard, compatible with other types of interfaces such as: the detection of DVI_D &Type-C interface (corresponding interface line switching test). (Note: DHVT input DP port is Mini-DP, can be tested by Mini-DP to DP connection line)

Support Windows 7/8/8.1/10, 32/64bit operating system;

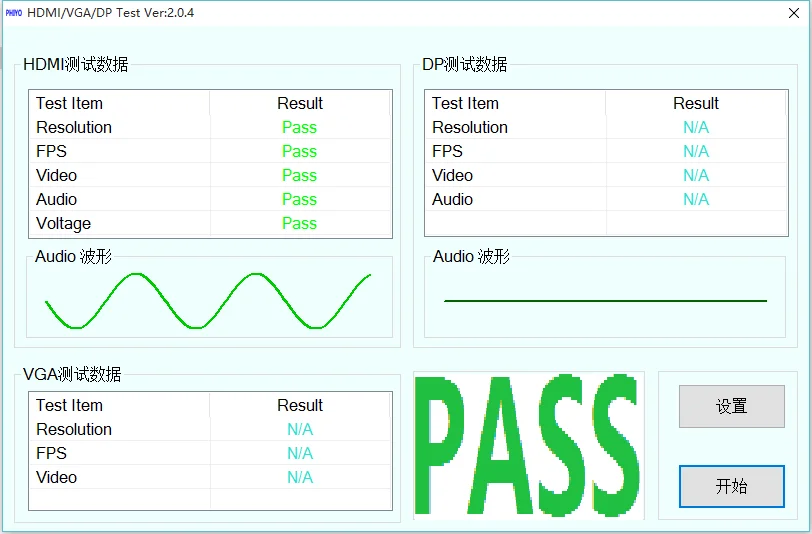

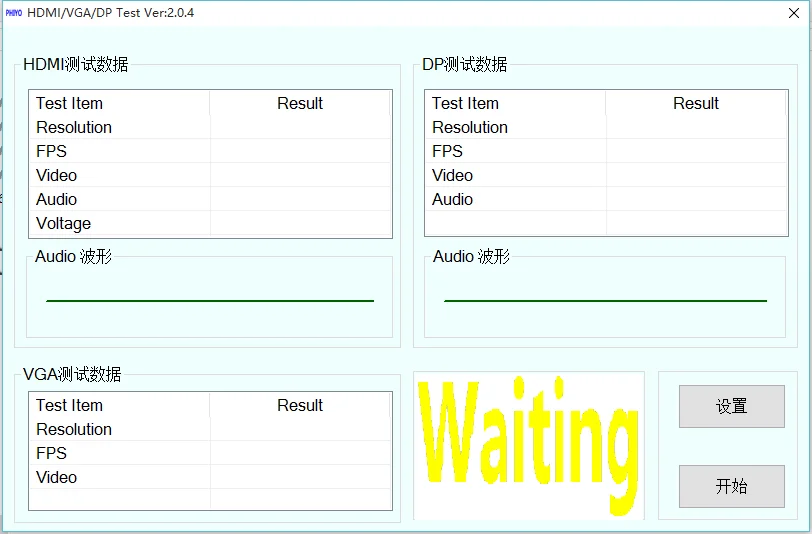

It can test the stability of HDMI signal (PLL lock state) in detail, test the video to analyze digital signal and audio analyze the digital signal, and determine the test result more quickly and accurately through the program.
Small volume, low power consumption, simple testing process, and support for automated testing.

Test Item	Support
VGA Video R,G,B Signal	V
VGA Vertical Sync Signal	V
VGA Horizontal Sync Signal	V
HDMI TMDS Signal	V
HDMI TMDS CLK Signal	V
HDMI 2K/4K Resolution	V
DP 2K/4K Resolution	V
DP 2Lane/4Lane Signal	V
DP Hot Plug Open	V
DP Lane_0~3 Signal	V
DP Audio Signal	V
HDMI&DP Data Channel Open/Short	V

Support all mandatory and additional 3D video format input;
Support high bandwidth digital content protection (HDCP) 1.4, built-in HDCP key;
Integrate CEC controller and support CDC (Capability Discovery And Control) characteristics;
Support PCM audio data packet, maximum sampling rate 192KHz, 8 channel;
Supporting the stability, frame rate and resolution of DP&HDMI&VGA video signals;
Supporting analog stereo audio output;
Support the HDMI signal testing of MHL mobile devices.

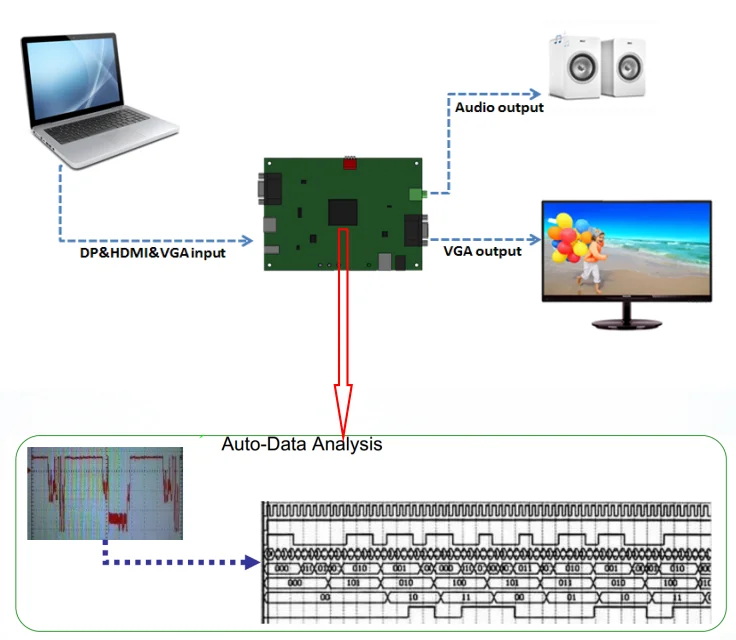

Working interface
